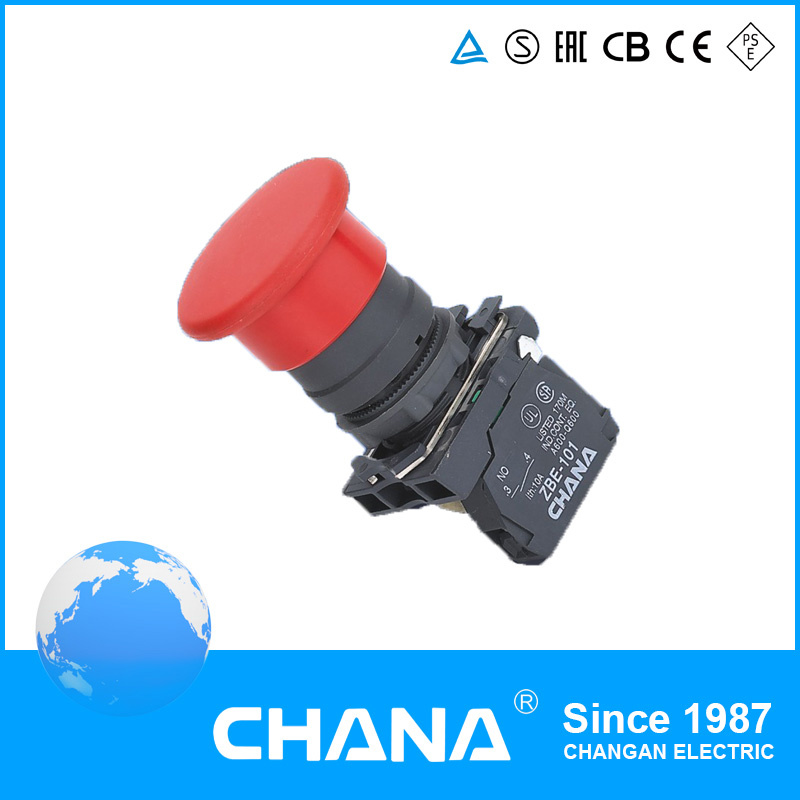

No+Nc Mushroom Button Spring Return Key Pushbutton Switch

Name: No+Nc Mushroom Button Spring Return Key Pushbutton Switch
Brand: all-electronics-online.com
SKU: 758648265
Availability: InStock
Rating: 4.6 (102 reviews)

Price:	US $ 0.73-0.82/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CB5-AG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturer:	Original Factory
Contact:	Copper&Silver Contact
Company Credit Rate:	AAA
Loaction:	Liushi Wenzhou
Type:	Normal Open
Usage:	Reset Button
Kind:	Flushpushbutton
Brand:	Chana or OEM
Certification:	RoHS

Product Description

Key/Mushroom Button Pushbutton Switch

1. Application

The pushbutton series are used in controlling circuit of AC 50HZ or 60HZ, Voltage to 660V, DC coltage below 400v, it is used for controlling signal and interlocking. The main body adopts zinc alloy and high grade anti-flaming plastic, the contact adopts circuit of AC coltage 380v, 50hz or 60hz, DC vooltage below 380V, Used as kinds of indication signal, warning signal, accident signal and other signals. Our products comply withGB/T14048.1 and IEC60947-5-1, ALL PRODUCTS HAS GAINED ce, iso9001, ROHS and CE certification.

2. Specification

Operation temperature: -5ºC~+40ºC	Power-frequency withstand voltage:2500V, 1min
Operation humidity: 45%~85%	Electric durability: 50 x 104
Contact resistance: ≤50mΩ	Degree of protection: IP40
Rated insulation voltage	Ui 600V
Conventional thermal current	Ith 10A
Rated operation voltage	Ue 380V 220V 110V 48V 24V
Rated operation current	AC-5 2.5A 4.5A 6A 8A -
Rated operation current	DC-13 - 0.3A 0.6A 1.3A 2.5

Description	Type	Scheme
Flush button spring return	CB5-AG21	N/O
	CB5-AG25	N/O+N/C
	CB5-AG41	N/O
	CB5-AG45	N/O+N/C
	CB5-AG61	N/O
	CB5-AG65	N/O+N/C
	CB5-AG03	2NO
	CB5-AH33	2NO
Button with protection cover IP65	CB5-AC21	N/O
	CB5-AC31	N/O
	CB5-AC42	N/C
	CB5-AC51	N/O
	CB5-AR21	N/O
	CB5-AR31	N/O
	CB5-AR42	N/C
	CB5-AR51	N/C

3. Feature Product

4. Our Services

A. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B. After-service:
We pay high attention to your feed back after receive the goods.
We provide 18 months warranty after goods arrive.
We positively revert your complain within 48hours.

C. Professional Sales:
We value every inquiry sent to us, ensure quick competitive offer.
We cooperate with customer to bid tenders. Provide all necessary documents.
We are a sales team, with all technical support from engineer team.

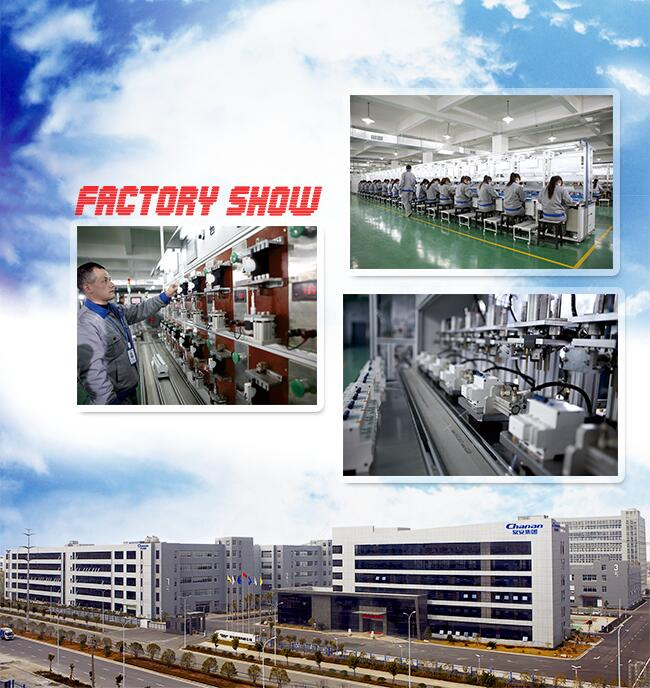

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
