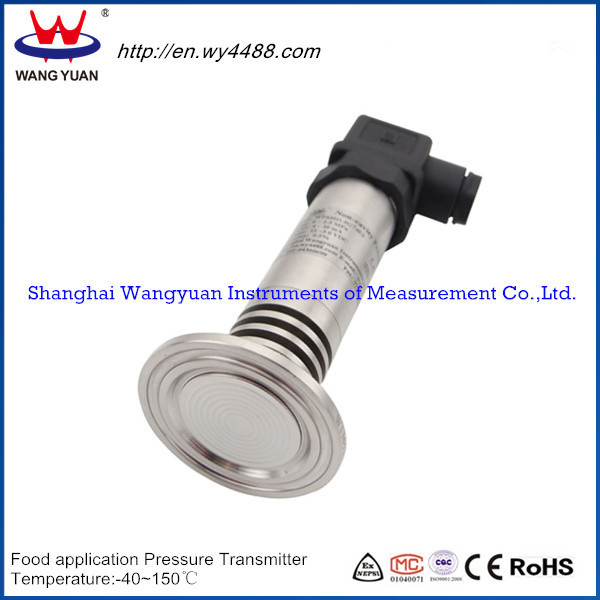

Non-Cavity Food Application Pressure Transmitter

Prod Model:	WP435D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Type:	Gauge Pressure(G), Absolute Pressure(a), Sealed Pr
Process Connection:	Clamp, Customized
Electrical Connector:	Hirschmann(DIN), Cable, Bendix Connector(5pin,4pin
Output Signal:	4-20mA (1-5V); 4-20mA with Hart Protocol
Compensation Range:	-10~70 Celsius,
Power Supply:	24V DC
Name:	Food Application Pressure Transmitter
Measuring Medium:	Gas, Oil, Liquids, Steam, Pulp
Pressure Range:	0--+/-0.2kpa~+/-100kpa, 0-0.2kpa~400MPa.

Product Description

WP435D Non-cavity food application pressure transmitter (Sanitary type)

Model: WP435D
Application
This series pressure transmitter can be used to measure & control liquids pressure in:
Food & Beverage plants
Paper & Pulp
Water treatment
Hydraulic/ Pneumatics
Sugar plant and etc.

Description
WP435D pressure transmitter is special designed for food application, its pressure diaphragm is in front of the thread, transducer is in the back of heat sink, high stability edible silicon oil was used as pressure transmission medium in the middle part, thereby ensuring that the effect of low temperature in food fermentation and high temperature during clean the tank on transmitter. Gauge pressure transmitter, using vent cable and putting molecular sieve on both ends of the cable, so that avoiding the performance of transmitter affected by condensation and dewfall.

Features
Various signal outputs
HART protocol is available
Operating temperature: -40~ 150Celsius
High precision 0.2%FS, 0.5%FS
Flush diaphragm, corrugated diaphragm, clamp mounted
3 1/2 LCD or LED digital indicator is configurable
Pressure range: 0--10~ -100kPa, 0-10kPa~100MPa
Best choice for Sanitary, sterile, easy cleaning applications
Explosion-proof type: Ex iaIICT6, Ex dIIBT4

Specification
Pressure range: 0--(-10) to (-100kPa), 0--10kPa~100MPa
Pressure type: Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N).
Output signal: 4-20mA (1-5V); 4-20mA with HART protocol; 0-10mA(0-5V);
Power supply: 24V DC;
Compensation range: -10-70C
Operation temperature: -40-150C
Overload pressure: 150%FS
Pressure connection: Clamp mounting
Electrical connection: Hirschmann(DIN), Cable, Bendix connector(5PIN, 4PIN)


Ordering guide: WP435D-500kPa-1.5"Clamp-DIN Connector-4-20mA-24VDC-0.5%FS
