| Prod Model: |
WP435D |
| Thread: |
Clamp, G1/2, M20*1.5, |
| Measuring Medium: |
Steam, Water, Oil, Air |
| Accuracy Grade: |
0.2%Fs, 0.5%Fs |
| Pressure Range: |
-100kpa~ 0-1kpa~10MPa |
| IP Rating: |
IP55, IP65, IP67, IP68 |
| Certification: |
Ce, ISO9001, RoHS |
Product Description

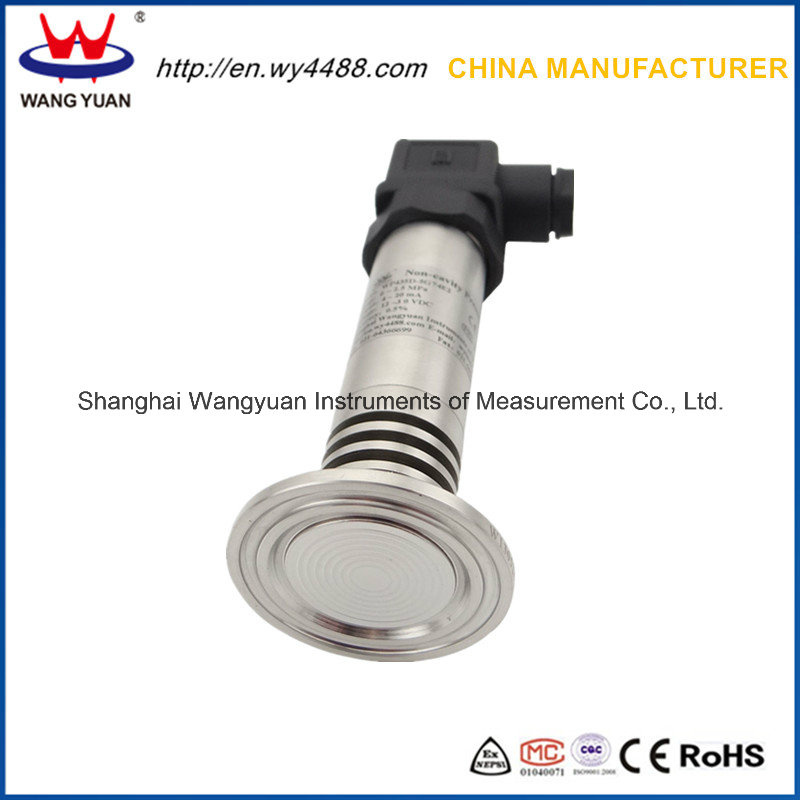

Non cavity Paper making use diaphragm 4-20mA Pressure transmitter
Model: WP435D
Application:
This Non cavity Paper making use diaphragm 4-20mA Pressure transmitter can be used to measure and control PRESSURE of sugar, beer, beverage, liquids, fluids in:
- Food & beverage, sugar plants
- Building automation
- Electric power, water supply,
- Light industry, Metallurgy,
- Environmental protection,
- Oil & Gas and Hydraulic press,
- Petroleum and chemical industry,
- Other automatic control industries.
Description:
1. WP435D Non cavity Paper making use diaphragm 4-20mA Pressure transmitter is special designed for food & beverage, beer, sugar and other sanitary application, where the mearused medium easy to clog, sanitary, sterile, easy to clean environment.
2. This diaphragm pressure transmitter can work stably for a long time under -40~150ºC temperature work environment.
3. Laser welding technology is used between sensor and stainless steel house, without pressure cavity.
4. Pressure diaphragm is in front of the thread, transducer is in the back of heat sink, high stability edible silicon oil was used as pressure transmission medium in the middle part, thereby ensuring that the effect of low temperature in food fermentation and high temperature during clean the tank on transmitter.
5. Gauge sanitary pressure transmitter, using vent cable and putting molecular sieve on both ends of the cable, so that avoiding the performance of transmitter affected by condensation and dewfall.
6. With the feature of high working frequency, this type sanitary presusre transmitters also are fit for dynamic measurement.
Features:
* Various signal outputs
* HART protocol is available
* Operating temperature:-40~ 150ºC
* High precision 0.2%FS, 0.5%FS
* Best choice for Sanitary, sterile, easy cleaning applications
* Flush diaphragm, corrugated diaphragm, clamp mounted
* Pressure range: 0--10~ -100kPa, 0-10kPa~100MPa
* 3 1/2 LCD or LED digital indicator is configurable
* Explosion-proof type: Intrinsically safe comply with requirement of GB3836·4-83;
Flameproof comply with requirements of GB3836·2-83.
Specification:
Name | WP435D Non cavity Paper making use diaphragm 4-20mA Pressure transmitter |
Pressure range | 0--10~ -100kPa, 0-10kPa~100MPa. |
Pressure type | Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Minus pressure (N). |
Accuracy | 0.2%FS, 0.5%FS |
Compensation temperature | -10~70ºC |
Operation temperature | -40~150ºC(Heatsink construct ) |
Output signal | 4-20mA;4-20mA with HART protocol; 0-10mA; 0-20mA; |
Power supply | 24V DC |
Electrical connection | Hirschmann(DIN), Cable lead |
Pressure connection | M20*1.5, Flush/Corrugation diaphragm or Clamp mounted, optional. |
Overload pressure | 150%FS |
Stability | 0.5%FS/ year |
Medium material | Stainless steel 304 or 316L |
Note: More technical parameters, please feel free to contact us. |

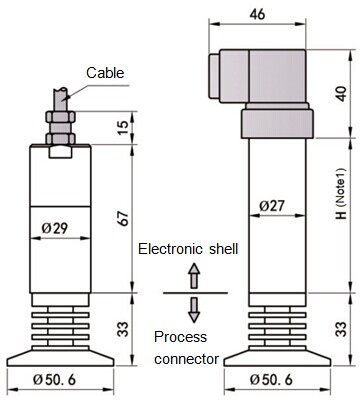

Dimensions of this Non cavity Paper making use diaphragm 4-20mA Pressure transmitter :
