Non-Cavity Sanitary Pressure Transmitter (designed for food application)

Prod Model:	WP435C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Type:	Gauge Pressure(G), Absolute Pressure(a), Sealed Pr
Process Connection:	G1/2,M20*1.5,1/4NPT,1/2NPT, Customized
Electrical Connector:	Cable, Terminal Block
Output Signal:	4-20mA (1-5V); 4-20mA with Hart Protocol
Power Supply:	24V DC
Compensation Range:	-10~70 Celsius
Operation Temperature:	-40-150c
Name:	Sanitary Pressure Transmitter
Measuring Medium:	Gas, Oil, Liquids, Steam
Pressure Range:	-100kpa~ 0--20kpa~20MPa

Product Description

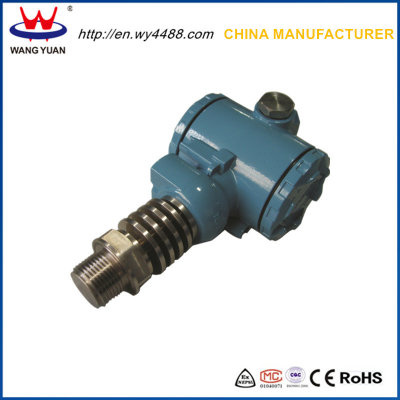

WP435C Non-cavity Sanitary pressure transmitter (designed for food application)

Model: WP435C
Application
This series sanitary pressure transmitter can be used to measure & control liquids pressure in:
Food & Beverage plants
Hydraulic/ Pneumatics
Industrial test and control
Mechanical engineering
Building automation
Ocean and ship
Oil & Gas and etc.

Description
WP435C sanitary pressure transmitter is special designed for food application, pressure diaphragm is in front of the thread, transducer is in the back of heat sink, high stability edible silicon oil was used as pressure transmission medium in the middle part, thereby ensuring that the effect of low temperature in food fermentation and high temperature during clean the tank on transmitter. Gauge pressure transmitter, using vent cable and putting molecular sieve on both ends of the cable, so that avoiding the performance of transmitter affected by condensation and dewfall.

Features of this sanitary pressure transmitter
Various signal outputs
HART protocol is available
High precision 0.2%FS, 0.5%FS
Flush diaphragm, corrugated diaphragm, clamp
Operating temperature: -40~ 150Degree C
4bits or 5bits LCD intelligent display
Pressure range: -100kPa~ 0-20kPa~20MPa
Best choice for Sanitary, sterile, easy cleaning applications
100% Linear meter or 3 1/2 LCD or LED digital indicator is configurable
Explosion-proof type: Ex iaIICT6, Ex dIIBT4

Specification
Pressure range: -100kPa~ 0--20kPa~20MPa
Pressure type: Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N).
Output signal: 4-20mA (1-5V); 4-20mA with HART protocol; 0-10mA(0-5V);
Power supply: 24V DC;
Electrical connection: Cable, Terminal block
Compensation range: -10-70C
Operation temperature: -40-150C
Overload pressure: 150%FS
Pressure connection: M20*1.5, G1/2,

Ordering guide: WP435C-1.6MPa-M20*1.5-Terminal block-4-20mA-24VDC-0.5%FS
