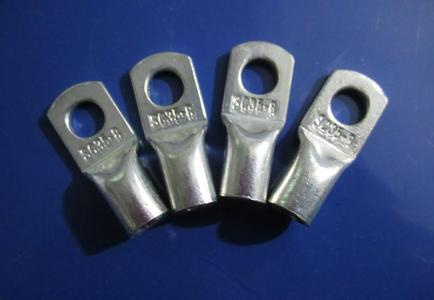

Non-Insulated Copper Connecting Terminal (DTGS-150)

Name: Non-Insulated Copper Connecting Terminal (DTGS-150)
Brand: all-electronics-online.com
SKU: 735082545
Availability: InStock
Rating: 4.5 (42 reviews)

Price:	US $ 0.247/Piece
Trade Terms:	FOB
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DTGS-150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature:	Cable Lugs and Sleeve
Application:	Conduct Electricity
Type:	Single Hole Terminals
Material:	Copper

Product Description

Application:
1) These products are suitable for the connection of copper conductors (section 1.5mm2-1000mm2) in power cable with electionic equipment
2) They are made of with higher 99.9 percent pure copper tube T2 and coated with tin. Working temperature 55 degrees below zero-155 degrees terminal connector

DTGS spy hole copper connecting terminal
1. Certification: ISO9001.2000
2. We can supply good after-sales service

Complete range of stud holes
Long barrel: Permits double crimping
Greater contact area for lower current density, cooler connection.
Available with nonstandard holes or undrilled tongue.
Available with nonstandard hole spacing.

Detail:
Specification: According to the customer picture, Item No. Or picture
Certification: ISO9001, CE, SGS
Delivery: The stock goods will be delivered within 3days, and the customized goods will be delivered within 7days
Sample: Free
MOQ: Most product not have MOQ, orders for just one piece are welcome
Terms of trade: EXW, FOB, CIF, CFRect
Payment Terms: T/T in advance, Western Union, L/C etc.
Serivce: ODM/OEM
Other service: CO, Form F

Wenzhou ziyong electrical Co., Ltd is a comprehensive and production processing trading enterprise in Zhejiang Province which is approved by the Forgeign Trade Department in China, and has own import and export power. We are engaged in cable and cable accessories, Like insulation piercing connector, cable connectors and fittings, like insulators and cable lugs and other connectors, explosion-proof products, fuse products, transformers, auto parts to cars, electricity and electronic products, plastics, machinery and decorated products.

Type	ø	D	d	L
SC(JGB)-1.5	ø4.2,ø5.2	3.5	1.8	18
SC(JGB)-2.5	ø4.2,ø5.2,ø6.2	4	2.5	19
SC(JGB)-4	ø5.2,ø6.2	4.8	3.1	21
SC(JGB)-6	ø5.2,ø6.2,ø8.2	5.5	3.8	24
SC(JGB)-10	ø6.2,ø8.2	6.8	4.8	25.5
SC(JGB)-16	ø6.2,ø8.2,ø10.5	7.5	5.5	30.5
SC(JGB)-25	ø6.2,ø8.2,ø10.5	9	7	34
SC(JGB)-35	ø6.2,ø8.2,ø10.5,ø12.5	10.5	8.2	38
SC(JGB)-50	ø8.2,ø10.5,ø12.5	12.5	9.8	45
SC(JGB)-70	ø8.2,ø10.5,ø12.5	14.5	11.5	50
SC(JGB)-95	ø10.5,ø12.5	17.5	13.8	55.5
SC(JGB)-120	ø12.5,ø16.5	19.5	15.5	63
SC(JGB)-150	ø12.5,ø16.5	21	16.8	71
SC(JGB)-185	ø16.5	23.5	18.8	78
SC(JGB)-240	ø16.5	26.5	21	92
SC(JGB)-300	ø16.5,ø20.5	30	24	102
SC(JGB)-400	ø16.5,ø20.5	34	26.5	113
SC(JGB)-500	ø16.5,ø20.5	38	30	123
SC(JGB)-630	ø20.5	45	35	135
SC(JGB)-800	ø22.5	50	39	170
SC(JGB)-1000	ø22.5	56	44	200

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
