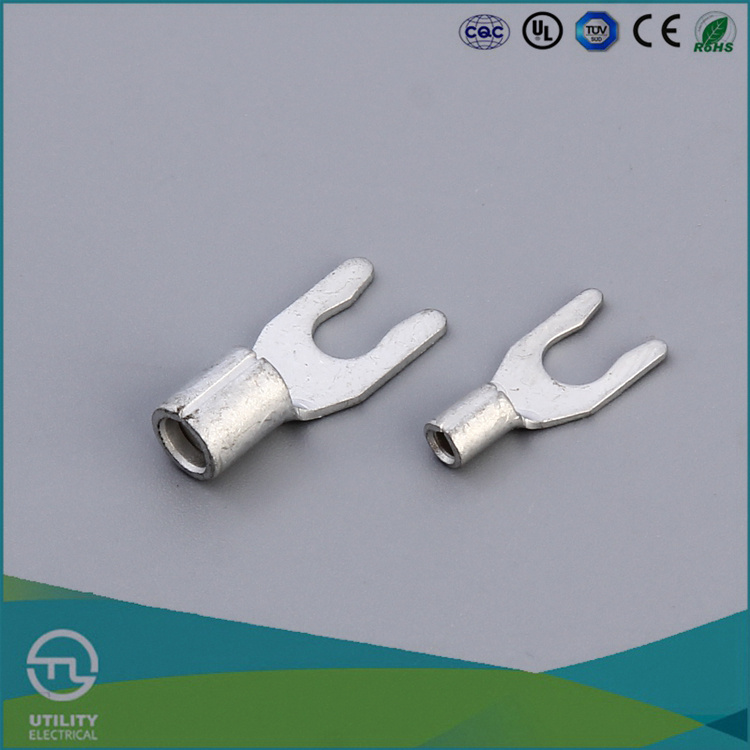

Non-Insulated Locking Naked Wire Fork Terminals

Non-Insulated Locking Naked Wire Fork Terminals
Price: US $ 0.01-1/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: LSNB 1.25-3.5
Thickness: 0.75mm
Terminal Material: Red Copper
Current: 19A
Wire Size: 0.5-1.5mm2
Material: Copper
Application: Transmission of Electrical Signals
Type: Lug
Species: Lug
Shape: Y Type Header
Certification: Ce
Brand: Utl

Product Description

 UTL Hot Sale Products LSNB Copper Non-Insulated Locking Naked Wire Fork Terminals

Model No.LSNB 1.25-3.5
Item name Cable lugs
MaterialTerminal : Red Copper,  Insulate : PA66
Size B:6.4  F:6.4  L:16.0  E:4.8 Dφ:3.4 dφ:1.7
Thinckness of terminal 0.75mm
Name Tab(mm)Check the terminal chart
Wire section0.5-1.5mm2
Max current19A
ColorRed Blue Yellow or OEM colo
Payment termA.Below US$300,western,paypal accepted
B.Above US$300,bank account
CertificateTUV/CE/UL/RoHS/SGS/CQC  approved standard


Item NO.USA Bolt No.Bolt dia d2(mm)Dimension(mm)Description
BFLE
LSNB1.25-3.5#63.76.46.516.04.83.41.7Lead Section:
0.5-1.5mm²
Max Current:Imax=19A
Material:Copper
Thickness:0.7mm
LSNB1.25-4S#84.37.26.516.0
LSNB1.25-4L#84.38.16.516.0
LSNB1.25-5S#105.38.16.516.0
LSNB1.25-5L#105.39.56.516.0
LSNB2-3.5#63.76.06.516.04.84.12.3Lead Section:
1.5-2.5mm²
Max Current:Imax=27A
Material:Copper
Thickness:0.8mm
LSNB2-4S#84.37.26.516.0
LSNB2-4L#84.38.16.516.0
LSNB2-5S#105.38.16.516.0
LSNB2-5L#105.39.36.516.0
LSNB5.5-3.5#63.78.37.018.26.05.63.4Lead Section:4-6mm²
Max Current:Imax=48A
Material:Copper
Thickness:1.0mm
LSNB5.5-4#84.38.37.018.2
LSNB5.5-5#105.39.07.018.2
LSNB5.5-61/46.512.012.024.5












UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
