Prod Model: |
MFX80-MFX300 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Vrrm: |
200-2600V |
Irrm: |
8-25mA |
DV/Dt: |
800V/Us |
Di/Dt: |
100A/Us |
Manufacturing Technology: |
Discrete Device |
Material: |
Element Semiconductor |
Type: |
Intrinsic Semiconductor |
Package: |
Standard Export Packing |
Application: |
Welding Power, DC Power, Frequency Transformer |
Model: |
Mfx80-Mfx300 |
Batch Number: |
2016+ |
Brand: |
Shangjing |
Product Description
Features
Non-insulated
Baseplate communal electrode
International standard packaging
Excellent temperature Characteristics
High IFSM(ITSM)
Low VFM(VTM)
Applications
Welder Power
DC Power
Frequency transformer
MDG(AA), MDY(AA) Welder Class |
Type | IT(AV) | VRRM | VFM@IFM | IRRM | IF(RMS) | IFSM | Rjc | Tjm | Outline | A | V | V | A | mA | kA | kA | ° C/W | ° C | MDx80A | 80 | 400-2600 | 1.32 | 250 | 8 | 125 | 3.40 | 0.410 | 150 | M10/M13 | MDx100A | 100 | 400-2600 | 1.35 | 300 | 8 | 157 | 4.10 | 0.380 | 150 | M10/M13 | MDx150A | 150 | 400-2600 | 1.35 | 450 | 12 | 236 | 6.00 | 0.240 | 150 | M11/M14 | MDx200A | 200 | 400-2600 | 1.39 | 600 | 15 | 314 | 8.20 | 0.200 | 150 | M11/M14 | MDx250A | 250 | 400-2600 | 1.35 | 750 | 12 | 393 | 9.90 | 0.150 | 150 | M13/M15 | MDx300A | 300 | 400-2600 | 1.40 | 900 | 15 | 471 | 12.00 | 0.130 | 150 | M13/M15 | MDG, MDY Standard Class | MDx80A | 80 | 400-2600 | 1.50 | 250 | 12 | 125 | 3.20 | 0.410 | 150 | M10/M13 | MDx100A | 100 | 400-2600 | 1.57 | 300 | 12 | 157 | 3.90 | 0.380 | 150 | M10/M13 | MDx150A | 150 | 400-2600 | 1.57 | 450 | 12 | 236 | 5.80 | 0.240 | 150 | M11/M14 | MDx200A | 200 | 400-2600 | 1.50 | 600 | 20 | 314 | 8.00 | 0.200 | 150 | M11/M14 | MDx250A | 250 | 400-2600 | 1.53 | 750 | 20 | 393 | 9.80 | 0.150 | 150 | M13/M15 | MDx300A | 300 | 400-2600 | 1.50 | 900 | 25 | 471 | 11.50 | 0.130 | 150 | M13/M15 |
|
Non-insulated Thyristor Modules MTG(AA), MTY(AA) Welder Class |
Type | IT(AV) | VRRM | VFM@IFM | IRRM | IGT | VGT | IH | dV/dt | di/dt | ITMS | Rjc | Tjm | Outline | A | V | V | A | mA | mA | V | mA | V/μ s | A/μ s | A× 10 3 | ° C/W | ° C | MTx80 | 80 | 200-600 | 1.35 | 240 | 8 | 100 | 2.5 | 100 | 800 | 100 | 2.70 | 0.280 | 125 | M10/M13 | MTx100 | 100 | 200-600 | 1.40 | 300 | 8 | 100 | 2.5 | 100 | 800 | 100 | 3.40 | 0.250 | 125 | M10/M13 | MTx150 | 150 | 200-600 | 1.40 | 450 | 12 | 100 | 2.5 | 100 | 800 | 100 | 5.60 | 0.160 | 125 | M11/M14 | MTx200 | 200 | 200-600 | 1.39 | 600 | 12 | 150 | 2.5 | 100 | 800 | 100 | 7.00 | 0.130 | 125 | M11/M14 | MTx250 | 250 | 200-600 | 1.40 | 750 | 12 | 150 | 2.5 | 100 | 800 | 100 | 8.60 | 0.100 | 125 | M12/M15 | MTx300 | 300 | 200-600 | 1.45 | 900 | 15 | 150 | 2.5 | 100 | 800 | 100 | 9.80 | 0.080 | 125 | M12/M15 | MTG, MTY Standard Class | MTx80 | 80 | 800-2600 | 1.60 | 250 | 12 | 100 | 2.5 | 100 | 800 | 100 | 2.60 | 0.280 | 125 | M10/M13 | MTx100 | 100 | 800-2600 | 1.67 | 300 | 12 | 100 | 2.5 | 100 | 800 | 100 | 3.20 | 0.250 | 125 | M10/M13 | MTx150 | 150 | 800-2600 | 1.67 | 450 | 12 | 100 | 2.5 | 100 | 800 | 100 | 5.10 | 0.160 | 125 | M11/M14 | MTx200 | 200 | 800-2600 | 1.62 | 600 | 20 | 150 | 2.5 | 100 | 800 | 100 | 6.50 | 0.130 | 125 | M11/M14 | MTx250 | 250 | 800-2600 | 1.65 | 750 | 20 | 150 | 2.5 | 100 | 800 | 100 | 8.50 | 0.100 | 125 | M12/M15 | MTx300 | 300 | 800-2600 | 1.58 | 900 | 25 | 150 | 2.5 | 100 | 800 | 100 | 9.60 | 0.080 | 125 | M12/M15 |
|

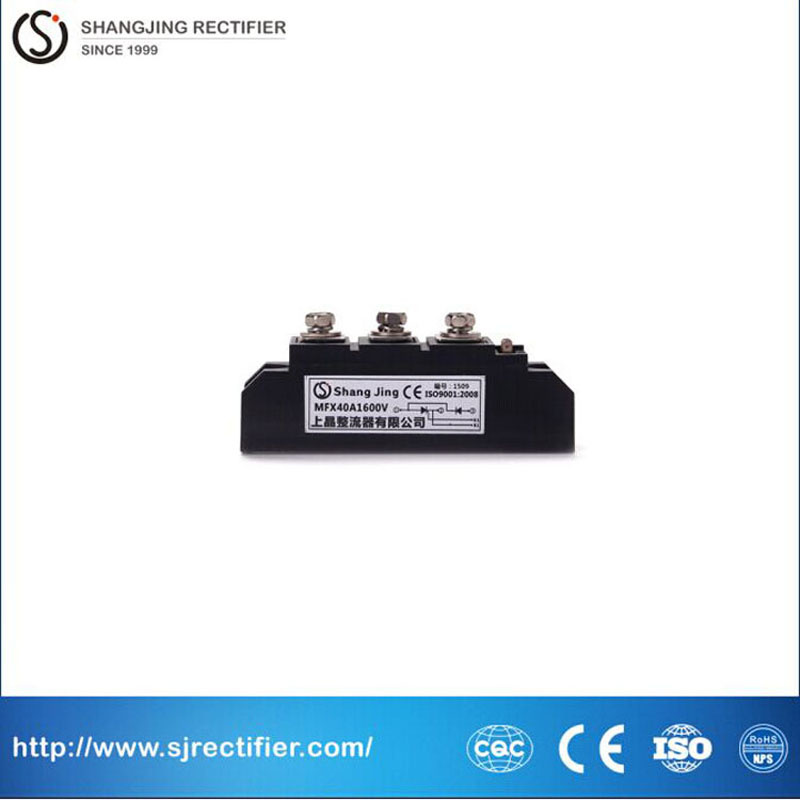

Non-Insulatated Thyristor-diode Modules MFG(AA), MFY(AA) Welder Class |
Type | IT(AV) | VRRM | VFM@IFM | IRRM | IGT | VGT | IH | dv/dt | di/dt | ITSM | Rjc | Tjm | Outline | A | V | V | A | mA | mA | V | mA | V/μ s | A/μ s | kA | ° C/W | ° C | MFx80 | 80 | 200-600 | 1.35 | 240 | 8 | 100 | 2.5 | 100 | 800 | 100 | 2.70 | 0.280 | 125 | M10/M13 | MFx100 | 100 | 200-600 | 1.40 | 300 | A | 100 | 2.5 | 100 | 800 | 100 | 3.40 | 0.250 | 125 | M10/M13 | MFx150 | 150 | 200-600 | 1.40 | 450 | 12 | 100 | 2.5 | 100 | 800 | 100 | 5.60 | 0.160 | 125 | M11/M14 | MFx200 | 200 | 200-600 | 1.39 | 600 | 12 | 150 | 2.5 | 100 | 800 | 100 | 7.00 | 0.130 | 125 | M11/M14 | MFx250 | 250 | 200-600 | 1.40 | 750 | 12 | 150 | 2.5 | 100 | 800 | 100 | 8.60 | 0.100 | 125 | M12/M15 | MFx300 | 300 | 200-600 | 1.45 | 900 | 15 | 150 | 2.5 | 100 | 800 | 100 | 9.80 | 0.080 | 125 | M12/M15 | MFG, MFY Standard Class | MFx80 | 80 | 800-2600 | 1.60 | 250 | 12 | 100 | 2.5 | 100 | 800 | 100 | 2.60 | 0.280 | 125 | M10/M13 | MFx100 | 100 | 800-2600 | 1.67 | 300 | 12 | 100 | 2.5 | 100 | 800 | 100 | 3.20 | 0.250 | 125 | M10/M13 | MFx150 | 150 | 800-2600 | 1.67 | 450 | 12 | 100 | 2.5 | 100 | 800 | 100 | 5.10 | 0.160 | 125 | M11/M14 | MFx200 | 200 | 800-2600 | 1.62 | 600 | 20 | 150 | 2.5 | 100 | 800 | 100 | 6.50 | 0.130 | 125 | M11/M14 | MFx250 | 250 | 800-2600 | 1.65 | 750 | 20 | 150 | 2.5 | 100 | 800 | 100 | 8.50 | 0.100 | 125 | M13/M15 | MFx300 | 300 | 800-2600 | 1.58 | 900 | 25 | 150 | 2.5 | 100 | 800 | 100 | 9.60 | 0.080 | 125 | M13/M15 |
|
