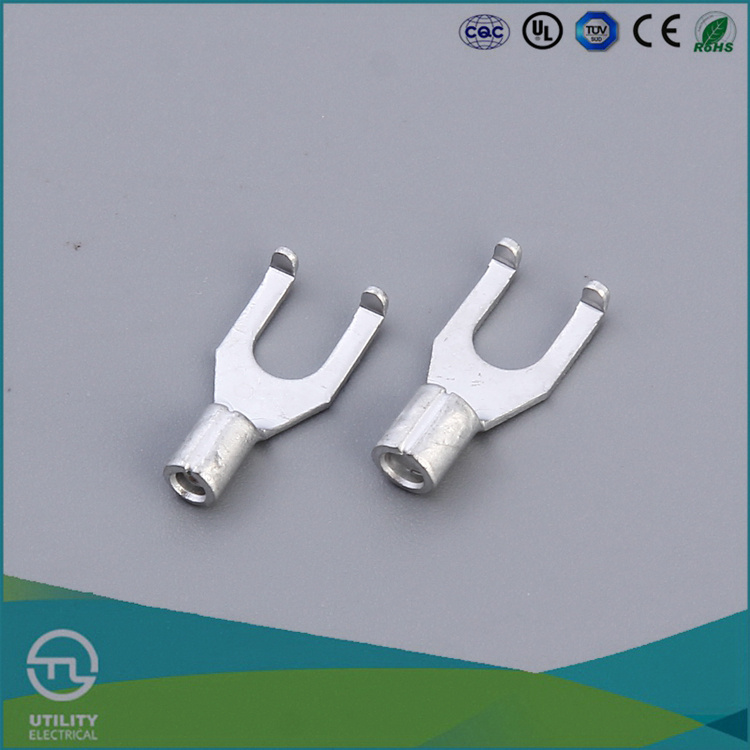

Non Insulating Convex Fork Electrical Connector Terminal

Non Insulating Convex Fork Electrical Connector Terminal
Price: US $ 0.01-1/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: FSNB 1.25-10
Thickness: 0.8mm
Terminal Material: Copper
Current: 10A
Wire Size: 0.5-1.5mm2
Material: Copper
Application: Transmission of Electrical Signals
Type: Lug
Species: Lug
Shape: Y Type Header
Certification: Ce
Brand: Utl

Product Description

UTL Wholesale Products FSNB Non Insulating Convex Fork Electrical Connector Terminal

Model No.FSNB 1.25-10
Item name Cable lugs
MaterialTerminal : Copper,  Insulate : PA66
Size B:5.7 F:6.5 L:16 E:4.8 Dφ:3.4 dφ:1.7
Thinckness of terminal 0.7mm 0.8mm
Name Tab(mm)Check the terminal chart
Wire section0.5-1.5mm2
Max current10A
ColorRed Blue Yellow or OEM colo
Payment termA.Below US$300,western,paypal accepted
B.Above US$300,bank account
CertificateTUV/CE/UL/RoHS/SGS/CQC  approved standard

Item NO.USA Bolt No.Bolt dia d2(mm)Dimension(mm)Description
BFLE
FSNB1.25-3#43.25.76.516.04.83.41.7Lead Section:
0.5-1.5mm²
(A.W.G.22-16)
Max Current:Imax=19A
Material:Copper
Thickness:0.7mm
FSNB1.25-3.5S#63.75.76.516.0
FSNB1.25-3.5L#63.76.46.516.0
FSNB1.25-4S#84.36.46.516.0
FSNB1.25-4M#84.37.26.516.0
FSNB1.25-4L#84.38.16.516.0
FSNB1.25-5S#105.38.16.516.0
FSNB1.25-5L#105.39.56.516.0
FSNB1.25-6S1/46.59.56.516.0
FSNB1.25-6L1/46.512.011.022.0
FSNB1.25-85/168.514.012.523.5
FSNB2-3#43.25.76.516.04.84.12.3Lead Section:
1.5-2.5mm²
(A.W.G.16-14)
Max Current:Imax=27A
Material:Copper
Thickness:0.8mm
FSNB2-3.5S#63.75.76.516.0
FSNB2-3.5L#63.76.46.516.0
FSNB2-4S#84.36.46.516.0
FSNB2-4M#84.37.26.516.0
FSNB2-4L#84.38.16.516.0
FSNB2-5S#105.38.16.516.0
FSNB2-5L#105.39.56.516.0
FSNB2-6S1/46.59.56.516.0
FSNB2-6L1/46.512.011.022.0
FSNB2-85/168.514.012.523.5













UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in

The production of the terminal industry, distributors, is that the industry is

Strong in technology, growing rapidly, very large-scale enterprises. Since its

Establishment, the community's concern and support, through the joint

Efforts of all my colleagues, more than a decade UTILITY made remarkable

Achievements, from sales to the corporate image have been recognized by

Customers and industry peers and achieved gratifying brand.

The company has consistently adhered to the "people-oriented, market-

Oriented" business philosophy, product standards, UTILITY painstaking

Research of the IEC, UL, CSA, GB, CE, CCC and other international and

Domestic standards for terminals, and in accordance with these

Standards preparing their own more stringent corporate standards, from

The development, mold design, raw material procurement, production,

Plastic parts molding products, metal parts, to finished product assembly

And quality testing, packaging, shipping, etc.

The company produced dozens of series, thousands of specifications of

Products for our customers to provide a rich selection of product protection.

The company passed the ISO9001 quality management system certification,

The vast majority of products through the UL, CSA, CCC, CCS, CE

Certification, some products through the VDE certification, all products

Comply with RO environmental requirements.
