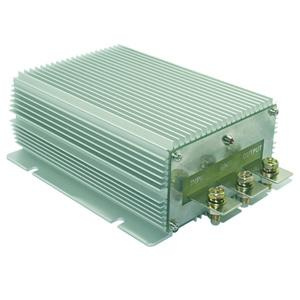

Non-Isolated 36VDC to 12VDC 60A 720W DC-DC Step Down Converter

Non-Isolated 36VDC to 12VDC 60A 720W DC-DC Step Down Converter
Price: US $ 37-49/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SDJ-36S1260
Power: 600W
Input Range: 28-50V DC
Output: 12VDC 60A
Efficiency: 96%
Protection: Full Protections
Weight: 1.55kg
Working Temperature: -40~+80 Degree C
Waterproof Level: IP68
Cooling Way: Free Air Convection
OEM: Available
Output Type: Single
Warranty: 1 Year
Output Power: >500W
Connection Mode: Series Switching Power Supply
Certification: ISO
Input Voltage: 36VDC
Brand: Smun

Product Description

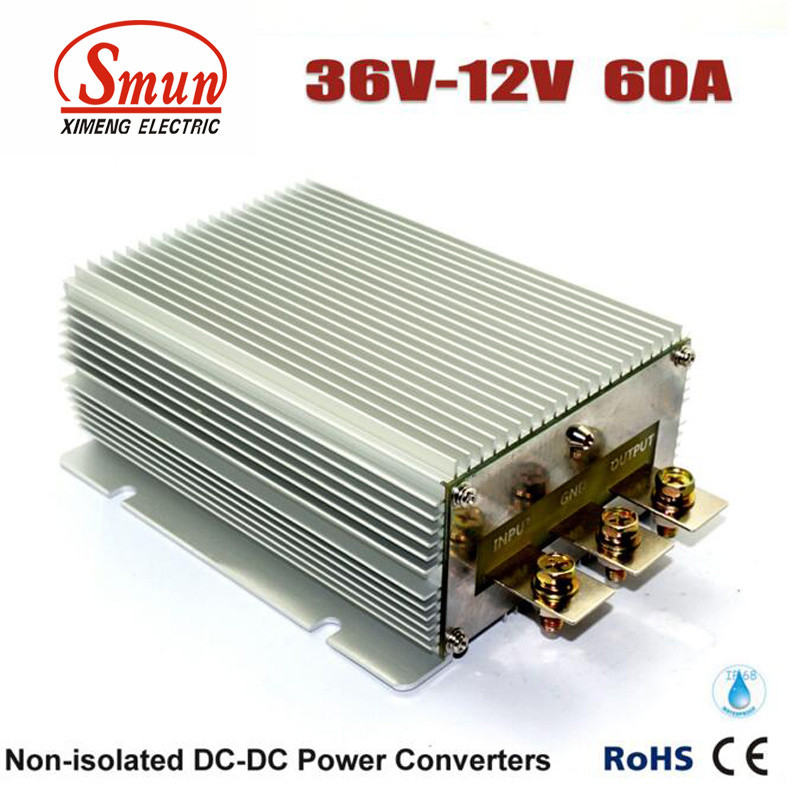

DC36V to DC12V 60A Power Converters 720W
Features

1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from  28-50Vdc
4. 100% waterproof & anti-shock protection, Ultra compact size, light weight
5. Industry grade DC36V to DC12V step-down converter, efficiency up to 96%
6. Certificates: CE/RoHS
7. Waterproof level: IP68
8. Aluminum shell, epoxy potting, Cooling by free air convection,
9. Protections: Over-current, Over-voltage, Over-temperature, Over-load and
Short-circuit, Auto-recovery when device is back to normal operating
10. Non-Isolated Module
11. 1 year warranty, lifetime up to 100,000 hours.
Specifications
ModelSDJ-36S1260
Input rated voltage36V DC
Input voltage range28-50V DC
Efficiency97% (half load) ; 96% (full load)
Output voltage12V DC
Output current60 Amps
Output rated power720 Watts
Output peak power125%
Voltage regulation< 1%
Load regulation< 2%
Ripple (full load test)< 100mV
No-load current< 30mA
Working Temperature-40°c ~ +80°c
Waterproof ratingIP 68
ProtectionsOver-load, Over-current, Over-temperature, Short-circuit, Over-voltage
Machine size180*127*63mm
Package size230*152*100mm
N. Weight1.55kg
W. Weight1.62kg
Cooling wayFree air convection
CertificationsCE
OtherCarton packing
