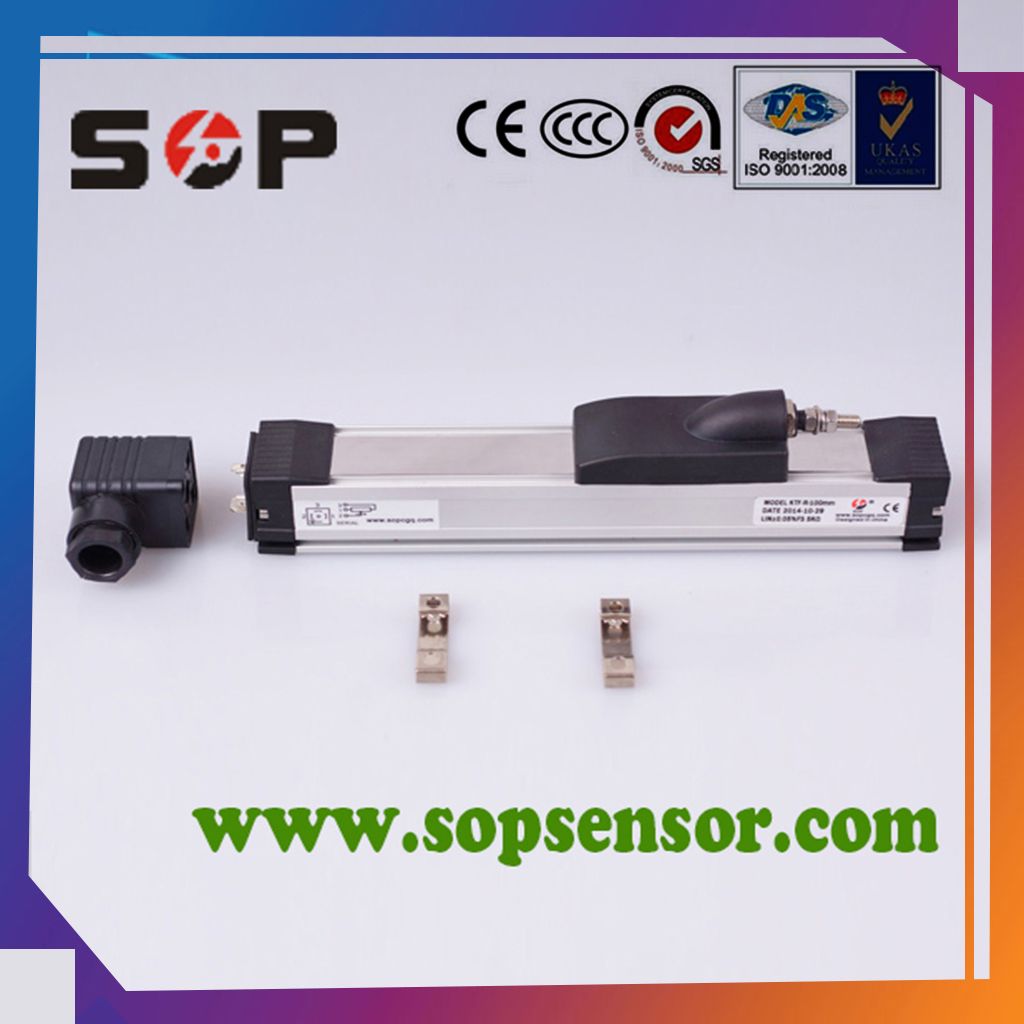

Non-Linearity Smaller Slide Conduction Displacement Sensor

Prod Model:	KTF-2500
Feature:	High Speed
Max Current:	10mA
Max Voltage:	42V
Warrenty:	12 Months
Material:	Aluminum Alloy

Product Description

Non-Linearity Smaller Slide Conduction displacement  Sensor

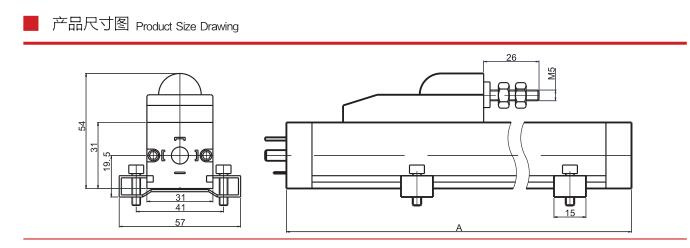

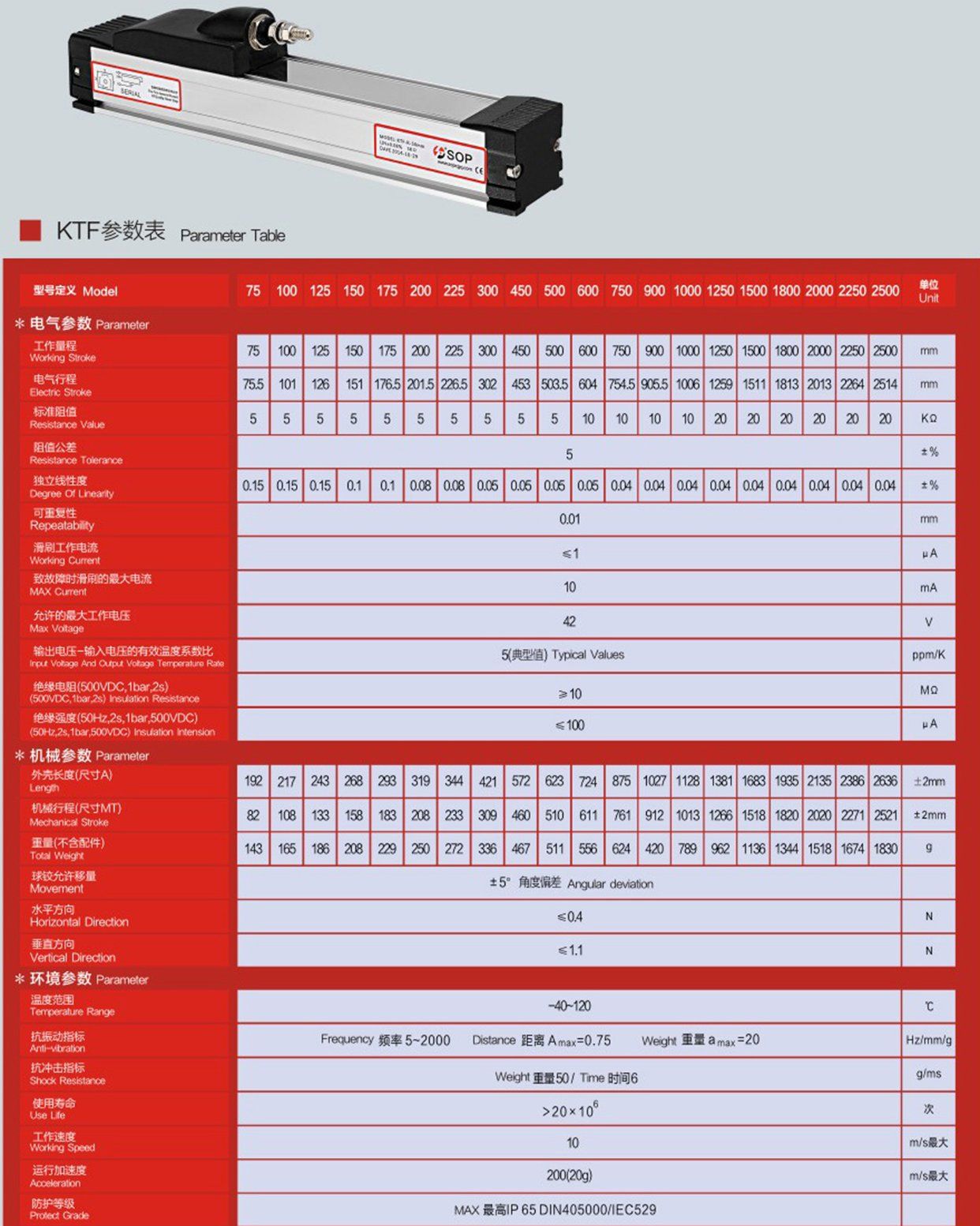

Model																											Unit
Working Stroke	75	100	125	150	175	200	225	300	450	500	600	750	900	1000	1250		1500		1800		2000		2250		2500		mm
Electric Stroke	75.5	101	126	151	175.5	201.5	226.5	302	453	503.5	604	754.5	905.5	1006	1259		1511		1813		2013		2264		2514		mm
Resistance value	5	5	5	5	5	5	5	5	5	5	10	10	10	10	20		20		20		20		20		20		KΩ
Resistance Tolerance	5																										±%
Degree of Linearity	0.15	0.15	0.15	0.1	0.1	0.08	0.08	0.05	0.05	0.05	0.05	0.04	0.04	0.04	0.04	0.04		0.04		0.04		0.04		0.04		±%
Repeatability	0.01																										mm
Working Current	≤ 1																										μA
Max Current	10																										mA
Max Voltage	42																										V
Input Voltage and Output Voltage temperature Rate	5																										ppm/K
(500VDC,1bar,2s) Insulation Resistance	≥ 10																										MΩ
(50Hz,2s,1bar,500DVC) Insulation Intension	≤ 100																										μA
Length	192	217	243	268	293	319	344	421	572	623	724	875	1027	1128	1381		1683		1935		2135		2386		2636		±2mm
Mechanical Stroke	82	108	133	158	183	208	233	309	460	510	611	761	912	1013	1266		1518		1820		2020		2271		2521		±2mm
Movement	± 5° Angular deviation
Horizontal Direction	≤ 0.4																										N
Vertical Direction	≤ 1.1																										N
Temperature Range	-40~120																										ºC
Anti-vibration	Frequency 5~2000 Distance A max= 0.75 weight a max= 20																										Hz/mm/g
Shock Resistance	weight/time																										g/ms
Use Life	>20×106
Working Speed	1																										m/s(max)
Acceleration	200(20g)																										m/s(max)
Protect Grate	MAX IP65 DIN405000/IEC529

Product  feature:

No pole design
Spherical
Usage life is longer, Times could reach fifty million
Non-linearity smaller
Resolution rate is higher than 0.01mm
High speed
Din43650 standard plug and socket
Protection grate is ip65(install down is ip57)
Could equip with voltage and current (2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

Non free warranty "belongs to one of the following products, not the three service"
1. validity period of more than three bags,
2. the product label is torn, torn, blurred products;
3. not to use products that require the use, maintenance, custody of the damage caused;
4. without our authorized personnel to dismantle, repair or attempt to repair products,
5. no effective three packs of certificates or alter three guarantees certificate;
6. the Three Guarantees certificate of product models, and the product does not match thenumber;
7. no name, address, date of production, product certification;
8. because of the accident, the use of the wrong or in any way, natural irresistible factors, whichcaused damage to the product.
9. for the user to use, transport, improper storage caused damage to the product. (such astransportation or handling the collision caused deformation and not the normal use of products etc.)

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.
