| Prod Model: |
12V7AH |
| Color: |
Grey or Black |
| Terminal: |
F1/F2 |
| Certificate: |
Ce/UL/ISO9001/ISO14001/Ohsas18001 |
| Weight: |
2.2kg |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Flat Battery |
| Rechargeable: |
Chargeable |
Product Description

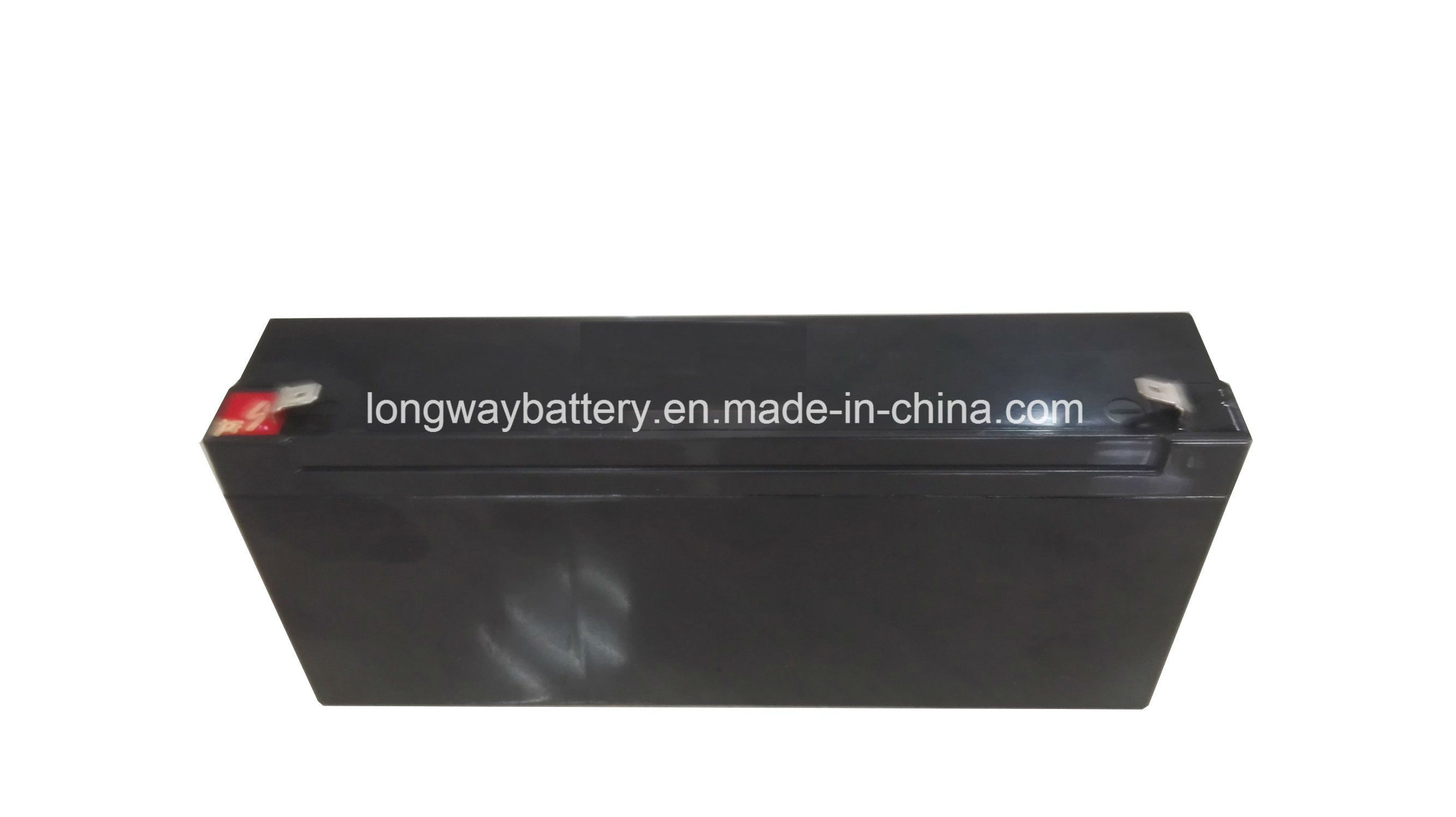

LONGWAY Sealed Rechargeable Lead-Acid Battery (6FM7.2)
LONGWAY lead acid battery used for UPS / AGM / VRLA / SLA maintenance-free battery
I. Power storage Solar & Wind System (Deep Cycle Battery)
II. Standby use UPS battery, Emergence & Alarm, Lighting & Security, Sounding, etc...
III. Telecommunication and stationary lead acid battery.
6V - 1.3Ah to 12Ah used for emergency lighting and alarm lighting and sound application.
12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.
2V - 50Ah to 3000Ah used for solar power systems and telecommunication are using all self-made high quality and thick deep cycle plates.
*Model: 6FM7.2 (12V7.2AH/20HR)
*Size: 151.4*65.5*92.8 (Total Height: 97.3) MM; 5.96*2.58*3.65 (Total Height: 3.83)inch
*Approx Weight: 2.2kg (4.85lbs)
*Terminal: F1/F2
*1c Duration: 38 Minutes
*Capacity (25º C): 20HR (0.36A) 7.2AH; 10HR (0.67A) 6.7AH; 5HR (1.22A) 6.12AH; 1HR (4.32A) 4.32AH
*Internal Resistance (Fully charged at 25º C): 0.026 Ohm
*Self-discharge: 3% of capacity declined per month at 25º C
*Capacity Affected by Temp. (20HR); 40º C 105%; 25º C 100%; 0º C 85%; -15º C 65%
*Charge Voltage (25º C): Cycle use: 14.4-15.0V(-24mV/º C), Max. Current: 2.16 A; Stand-by use: 13.5-13.8V (-18mV/º C)
*Packing Qty.: 10 PCS/CTN
*8, 000-9, 000 PCS /Container
*Lead-Time: 15 Days For One Container
*Application: Lighting system; Security system; Electric toy; Medical equipment; Telecommunication system; Power systems; UPS; Electric tools
*General Features:
Maintenance free;
Convenient for installation;
Safety and no leakage;
Excellent recharge and discharge performance;
Low self-discharge rate;
UL approval
*Designed Service Life: 5 years
*warranty: 1 years
*OEM Acceptable
Welcome to visit our website
1. HTTP: //longwaybattery. En. Made-in-China. com/
For more information, please contact us and welcome you!
| Standby 6V Standard Series batteries |
| Battery Model | Nominal Voltage(V) | Nominal Capacity
(AH) | Length | Width | Height | Total Height | Weight(5%) | Terminal |
| In | mm | In | mm | In | mm | In | mm | Pound | Kg | Type | Position |
| 3FM1.2 | 6 | 1.2 | 3.82 | 97 | 0.94 | 24 | 2.05 | 52 | 2.28 | 58 | 0.66 | 0.30 | F1 | C |
| 3FM2.8 | 6 | 2.8 | 2.60 | 66 | 1.30 | 33 | 3.84 | 97.5 | 4.09 | 104 | 1.21 | 0.55 | F1 | A |
| 3FM3.2 | 6 | 3.2 | 5.28 | 134 | 1.36 | 34.5 | 2.34 | 59.5 | 2.64 | 67 | 1.43 | 0.65 | F1 | C |
| 3FM3.5 | 6 | 3.5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.28 | 0.58 | F1/F2 | A |
| 3FM4 | 6 | 4 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.52 | 0.69 | F1/F2 | A |
| 3FM4.2 | 6 | 4.2 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.59 | 0.72 | F1/F2 | A |
| 3FM4.5 | 6 | 4.5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.65 | 0.75 | F1/F2 | A |
| 3FM5 | 6 | 5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.83 | 0.83 | F1/F2 | A |
| 3FM5A | 6 | 5 | 3.86 | 98 | 2.20 | 56 | 4.41 | 112 | 4.65 | 118 | 1.87 | 0.85 | F1/F2 | A |
| 3FM5E | 6 | 5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.74 | 0.79 | F1/F2 | A |
| 3FM5H | 6 | 5 | 2.67 | 67.8 | 2.64 | 67 | 3.84 | 97.5 | 4.13 | 105 | 1.79 | 0.81 | S/F1 | --- |
| 3FM5.5 | 6 | 5.5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.90 | 0.86 | F1/F2 | A |
| 3FM5.5H | 6 | 5.5 | 2.76 | 70 | 1.85 | 47 | 3.90 | 99 | 4.13 | 105 | 1.94 | 0.88 | F1/F2 | A |
| 3FM6 | 6 | 6 | 3.35 | 85 | 1.89 | 48 | 3.94 | 100 | 4.17 | 106 | 2.20 | 1.00 | F1 | A |
| 3FM6.5 | 6 | 6.5 | 3.86 | 98 | 2.20 | 56 | 4.41 | 112 | 4.65 | 118 | 2.65 | 1.20 | F1/F2 | A |
| 3FM7 | 6 | 7 | 5.94 | 151 | 1.42 | 36 | 3.70 | 94 | 3.94 | 100 | 2.43 | 1.10 | F1/F2 | C |
| 3FM8 | 6 | 8 | 3.86 | 98 | 2.20 | 56 | 4.65 | 118 | 4.65 | 118 | 3.09 | 1.40 | F1/F2 | B |
| 3FM9 | 6 | 9 | 5.94 | 151 | 1.97 | 5 | 3.70 | 94 | 3.94 | 100 | 3.20 | 1.45 | F1/F2 | C |
| 3FM10 | 6 | 10 | 5.94 | 151 | 1.97 | 50 | 3.70 | 94 | 3.94 | 100 | 3.31 | 1.50 | F1/F2 | C |
| 3FM11 | 6 | 11 | 5.94 | 151 | 1.97 | 50 | 3.70 | 94 | 3.94 | 100 | 3.64 | 1.65 | F1/F2 | C |
| 3FM12 | 6 | 12 | 5.94 | 151 | 1.97 | 50 | 3.70 | 94 | 3.94 | 100 | 3.64 | 1.65 | F1/F2 | C |
| 3FM14 | 6 | 14 | 4.25 | 108 | 2.80 | 71 | 5.51 | 140 | 5.51 | 140 | 5.07 | 2.30 | F2+F1- | |
| 3FM14T1 | 6 | 14 | 4.25 | 108 | 2.80 | 71 | 5.51 | 140 | 5.51 | 140 | 5.07 | 2.30 | T1 | / |
| 3FM14T2 | 6 | 14 | 4.25 | 108 | 2.80 | 71 | 5.51 | 140 | 5.51 | 140 | 5.07 | 2.30 | T2 | / |
| 3FM14A | 6 | 14 | 4.25 | 108 | 2.80 | 71 | 5.51 | 140 | 5.51 | 140 | 4.63 | 2.10 | F2+F1- | / |
Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.
As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.
Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.
During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
