Non-Stick High Temperature Resisting PTFE Coated Glass Cloth

Name: Non-Stick High Temperature Resisting PTFE Coated Glass Cloth
Brand: all-electronics-online.com
SKU: 710192895
Availability: InStock
Rating: 4.4 (128 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Square Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	YS-9013AJ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Insulators
Chemistry:	Organic Insulation
Material:	Fiberglass

Product Description

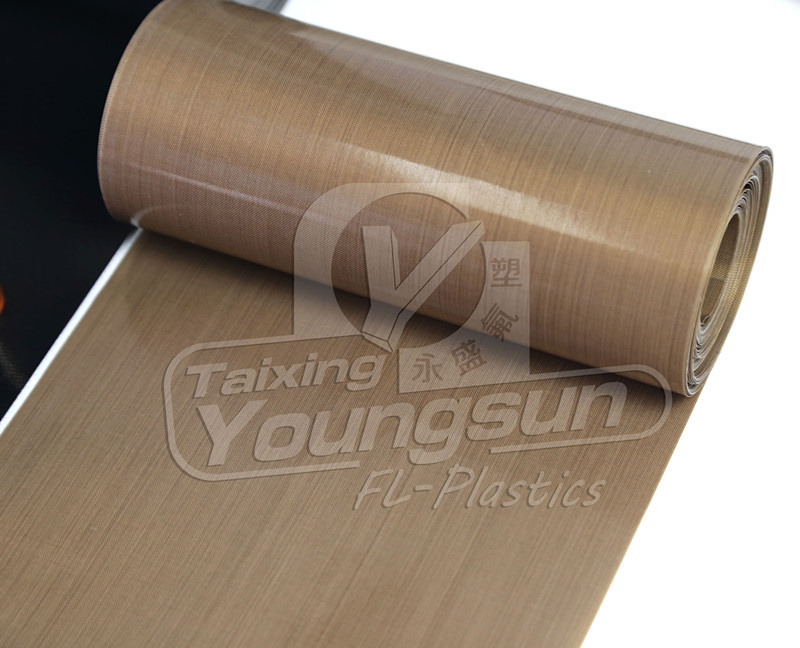

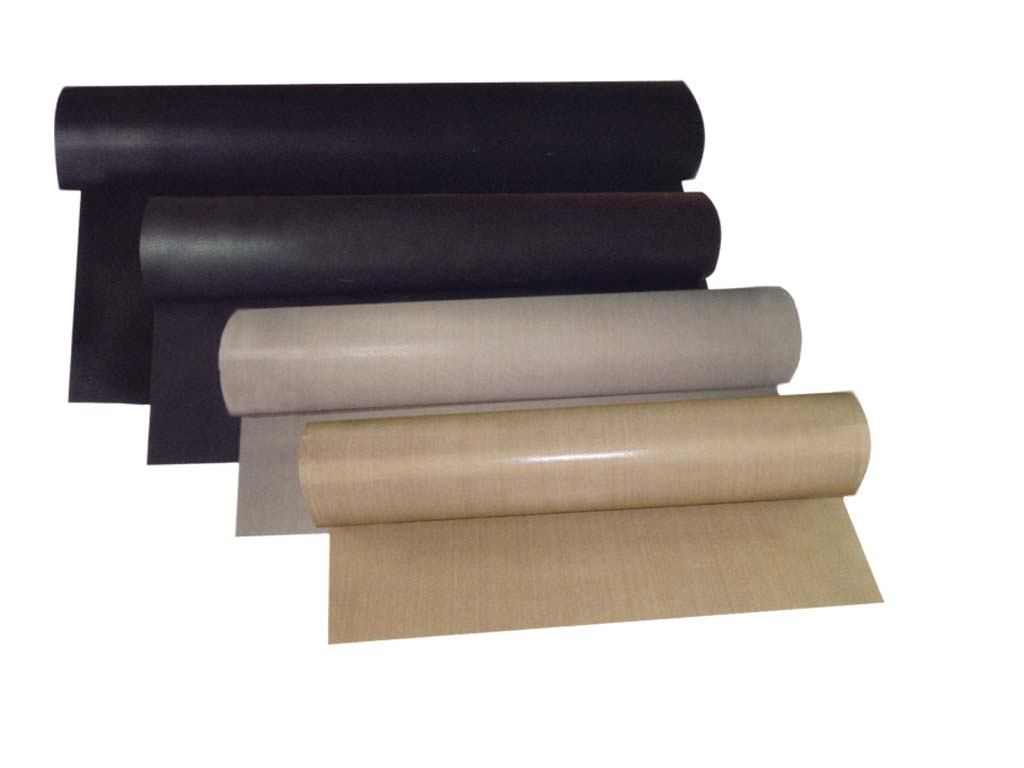

Description of ptfe coated glass cloth:

selects best imported fiberglass as the weaving material to plain knit or specially knit into high-grade fiberglass basic cloth, coating PTFE resin then make it into various PTFE teflon high temperature resistance clothes in different thickness and width.

Properties of ptfe coated glass clothh:
1. Stable dimension, high intensity, elongation coefficient less 5%.
2. Good temperature resistance, 24 hours working temperature -60~300° C
3. Low coefficient of friction and dielectric constant, good insulating ability
4. Non stick, easy to clear stains and adhesives on the surface
5. Good chemical resistance, it can resist all most of chemical medicines, acids, alkalis, and salt, it is fireproof, lower in aging.

Applications of ptfe coated glass cloth:
1. Used as various of liners to resist high temperature, such as microwave liner, oven liner, or other liners.
2. Used as non stick liners, intermediate
3. Used as various conveyor belts, fusing belts, sealing belts or anywhere need resisting high temperature, non stick, chemical resistance, etc.
4. Used as covering or wrapping material in petroleum, chemical industries, as wrapping material, insulating material, high temperature resistance material in electrical industries, desulfurizing material in power plant, etc.

Model	Colour	Thickness	Max Width	Tensile Strength	Temperature Range
YS-9008AJ	Brown	0.08mm	1250mm	500/480N/50mm	-140to360
YS-9008BJ	Black	0.08mm	1250mm	620/460N/50mm	-140to360
YS-9008Y	Black	0.08mm	1250mm	930/720N/50mm	-140to360
YS-9013AJ	Brown	0.13mm	1250mm	1100/1000N/50mm	-140to360
YS-9013BJ	Black	0.13mm	1250mm	1000/960N/50mm	-140to360
YS-9013Y	Black	0.13mm	1250mm	910/880N/50mm	-140to360
YS-9018AJ	Brown	0.18mm	1250mm	1600/1600N/50mm	-140to360
YS-9018BJ	Black	0.18mm	1250mm	1500/1500N/50mm	-140to360
YS-9025AJ	Brown	0.25mm	2800mm	2100/1800N/50mm	-140to360
YS-9025BJ	Black	0.25mm	2800mm	2800/2700N/50mm	-140to360
YS-9035AJ	Brown	0.35mm	3200mm	2700/2600N/50mm	-140to360
YS-9035BJ	Black	0.35mm	3200mm	2100/2200N/50mm	-140to360
YS-9040AJ	Brown	0.40mm	3500mm	2900/3100N/50mm	-140to360
YS-9040BJ	Black	0.40mm	3500mm	3000/2900N/50mm	-140to360
YS-9065AJ	Brown	0.65mm	4000mm	4200/4000N/50mm	-140to360
YS-9090AJ	Brown	0.90mm	4000mm	6300/5800N/50mm	-140to360
YS-9090BJ	Black	0.90mm	4000mm	6150/5300N/50mm	-140to360
