NPN General Purpose Transistor of Electronic Component

Name: NPN General Purpose Transistor of Electronic Component
Brand: all-electronics-online.com
SKU: 804799365
Availability: InStock
Rating: 4.6 (137 reviews)

Price:	US $ 0.017/Piece
Min Order:	3000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BC817-16
High Current:	Max. 500 Ma
Low Voltage:	Max. 45 V
Type:	NPN

Product Description

NPN general purpose transistor

FEATURES
•High current (max. 500 mA)
•Low voltage (max. 45 V).

APPLICATIONS
General purpose switching and amplification.
DESCRIPTION

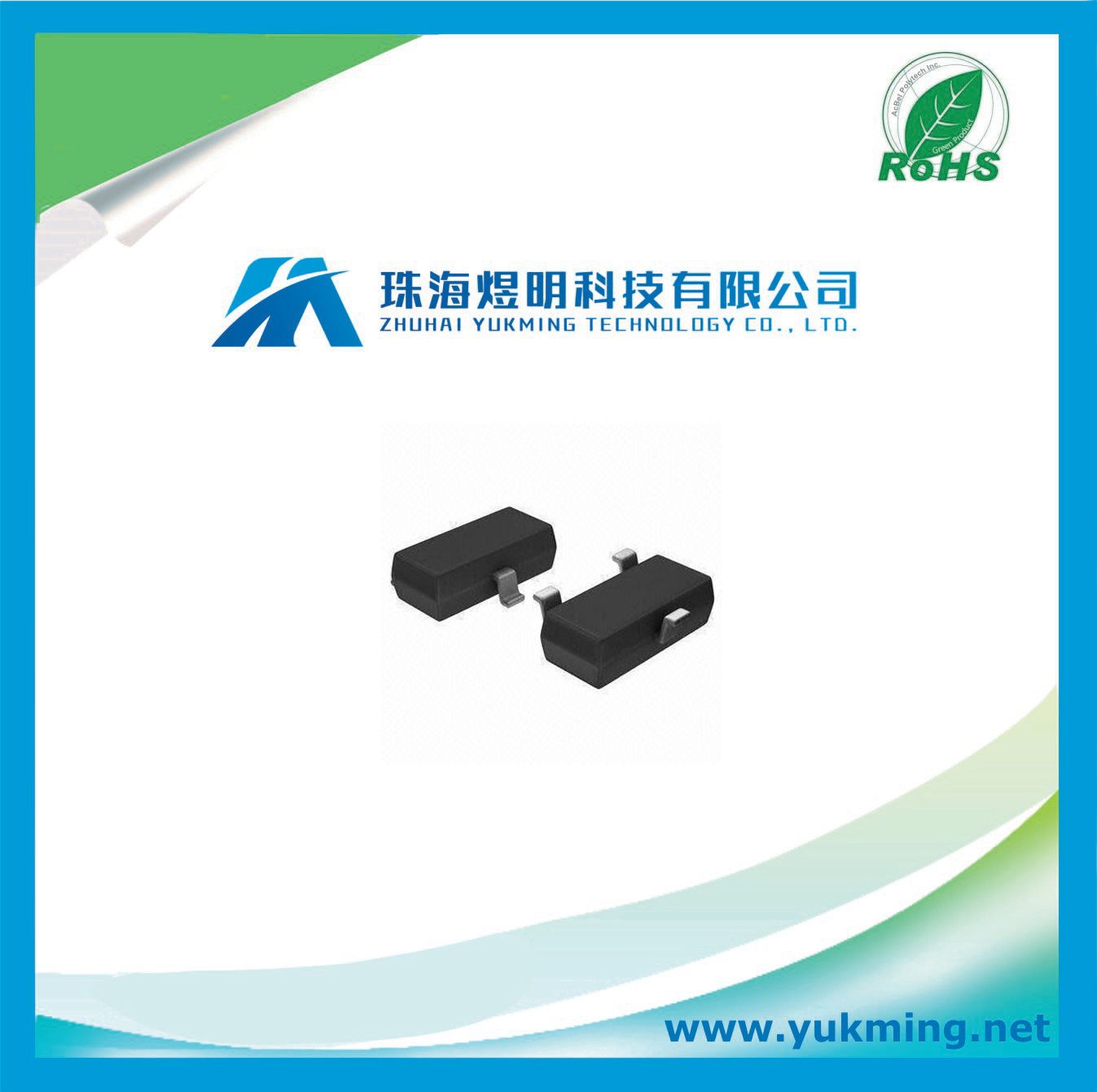

NPN transistor in a SOT23 plastic package.
PNP complement: BC807

Category	Discrete Semiconductor Products
Family	Transistors - Bipolar (BJT) - Single
Manufacturer	NXP USA Inc.
Series	-
Packaging	Digi-Reel®
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	45V
Vce Saturation (Max) @ Ib, Ic	700mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 100mA, 1V
Power - Max	250mW
Frequency - Transition	100MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23 (TO-236AB)
