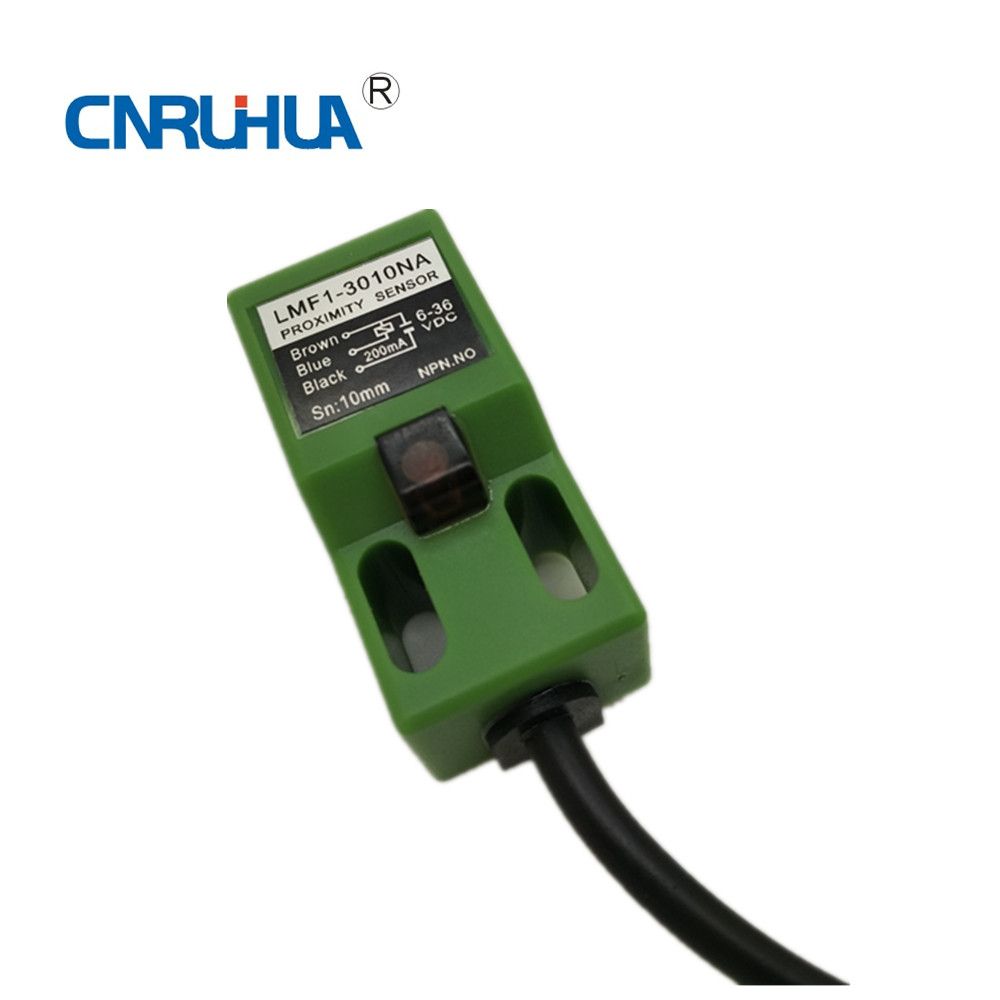

NPN No Distance 10mm Inductive Proximity Sensor Lmf1-3010na

Prod Model:	LMF1-3010NA
Name:	Proximity Sensor
Other Name:	Inductive Proximity Sensor
Model:	Lmf1-3010na
Color:	Yellow Green
Thread Type:	Na

Product Description


                LMF1-3010NA inductive proximity sensor NPN NO distance 10mm


Product Overview:

1.CE certified, high quality, compatible, exchangeable to Omron, P+F, Various Power Supply and Output, Customerized Sensing ranges

2.With CE certificates, cnruihua manufacture high quality proximity sensors & proximity switches ( inductive, capacitive, magnetic) , photoelectric sensors, optical fiber sensors, optical fiber amplifiers, optical area sensors, safety light curtains, optical rotary encoders etc.

3.CNRUIHUA is a brand name in China for high performance sensors which are sold into China and manty overseas countries.

4.Our products and services are unbeatable quality, delivery and price. Meanwhile, we provide unique value to ODM/OEM customers, through our expanded set of cost-effective, leading edge and innovative quality solutions, all of which help them to succeed.










Flush	Detection distance			5mm
	DC 6~36V	NPN	NO	3005NA
			NC	3005NB
			NO+NC
		PNP	NO	3005PA
			NC	3005PB
			NO+NC
		two wire system	NO	3005LA
			NC	3005LB
	AC 90~250V	SRC Control label silicon	NO
			NC
			NO+NC
		Relay output



Flush	Detection distance			10mm
	DC 6~36V	NPN	NO	3010NA
			NC	3010NB
			NO+NC
		PNP	NO	3010PA
			NC	3010PB
			NO+NC
		two wire system	NO	3010LA
			NC	3010LB
	AC 90~250V	SRC Control label silicon	NO
			NC
			NO+NC
		Relay output



Control output	DC	200mA
	SCR/Relay	300mA
Output voltage drop DC/AC		DC<3V  AC<10V
Consumption current		DC<15mA  AC<10mA
Standard detected object		50×50×1(A3 iron)
Repeated precision		0.02
DC/AC Response frequency		400Hz/25Hz
Working environment temperature		-25ºC~75ºC
Insulation resistance		50MΩ
Shell material		ABS Resin
Protection grade		IEC standard IP67
Altemative model at home and abroad		SN04-N

about us
YUEQING CITY RUIHUA CABINET WHOLE SET EQUIPMENT is a professional manufacturer of
Low-voltage electrical products in South China.
Our company is committed to design, manufacture and sale of a series of ozone generators air pumps,
PLC, rotary encoder, HMI, sensors, switches, warning lights, meters and many other electrical
Components. We export various types of electrical appliances to different countries.
