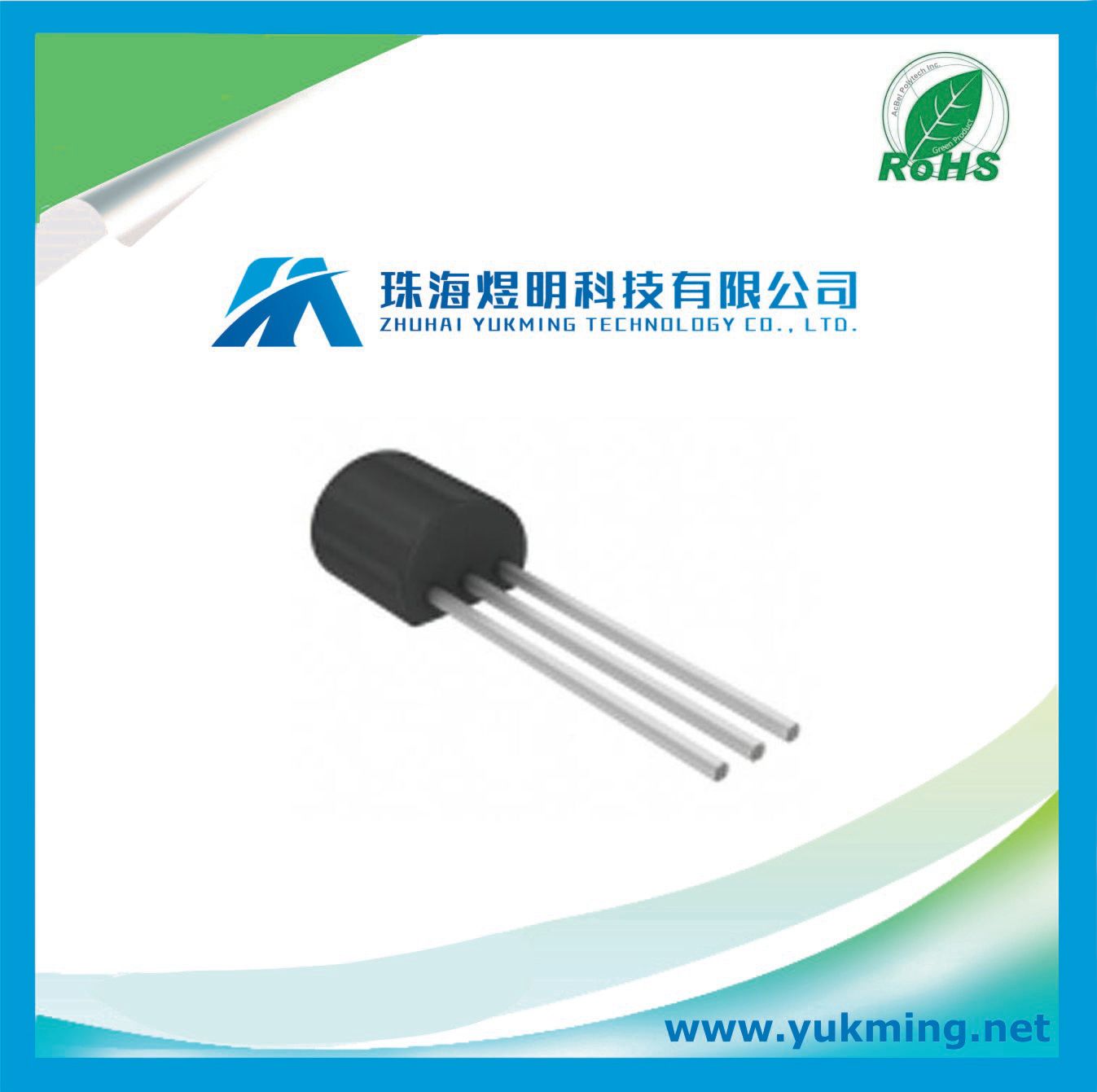

NPN Transistor Bc547c of Electronic Components for PCB Assembly

Name: NPN Transistor Bc547c of Electronic Components for PCB Assembly
Brand: all-electronics-online.com
SKU: 796754765
Availability: InStock
Rating: 4.7 (119 reviews)

Price:	US $ 0.0285/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BC547C
Number Of Elements Per Chip:	1
Maximum Collector Base Voltage (V):	50
Maximum Emitter Base Voltage (V):	6
Maximum Collector Emitter Voltage (V):	45
Maximum DC Collector Current (a):	0.1
Maximum Power Dissipation (MW):	625
Operation Temperature Range:	-55 to 150 Degree C

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
ON Semiconductor

PRODUCT CATEGORY
GP BJT

DESCRIPTION
Trans GP BJT NPN 45V 0.1A 3-Pin TO-92 Box

Design filters, receivers, transmitters, op-amps, power supplies, and control circuits with this versatile NPN BC547CG GP BJT from ON Semiconductor. This bipolar junction transistor's maximum emitter base voltage is 6 V. Its maximum power dissipation is 625 mW. This product comes packaged in bulk, so the parts will be stored loosely. This bipolar junction transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. It has a maximum collector emitter voltage of 45 V and a maximum emitter base voltage of 6 V.

Features
• Lead Free Finish/RoHS Compliant ("P" Suffix designates
RoHS Compliant. See ordering information)
• Through Hole Package
• 150 C Junction Temperature
• Epoxy meets UL 94 V-0 flammability rating
• Moisure Sensitivity Level 1

Specifications
EU RoHS Compliant
Type NPN
Number of Elements per Chip 1
Maximum Collector Base Voltage (V) 50
Maximum Emitter Base Voltage (V) 6
Maximum Collector Emitter Voltage (V) 45
Maximum DC Collector Current (A) 0.1
Maximum Power Dissipation (mW) 625
Minimum DC Current Gain 420@2mA@5V
Maximum Transition Frequency (MHz) 300(Typ)
Product Category Bipolar Small Signal
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Box
Mounting Through Hole

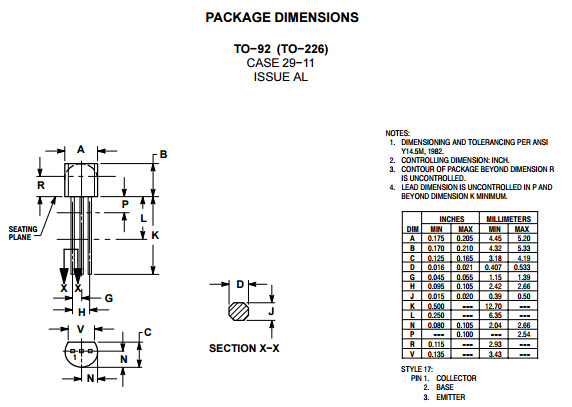

Package Height (mm) 5.33(Max)
Package Length (mm) 5.2(Max)
Package Width (mm) 4.19(Max)
PCB changed 3
Standard Package Name TO-92
Supplier Package TO-92
Pin Count 3
Lead Shape Through Hole
