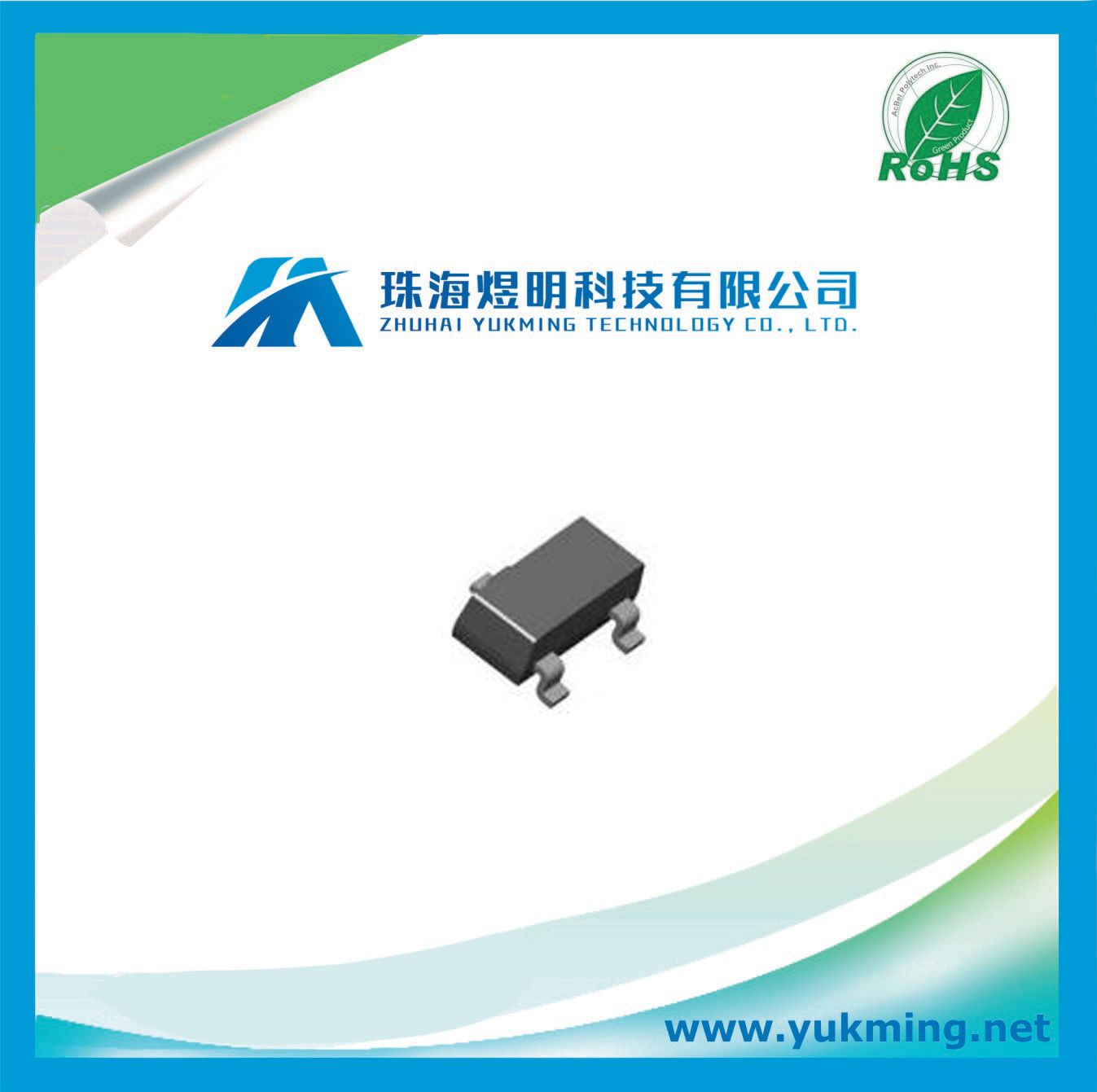

NPN Transistor of Electronic Component Versatile Mmbt5551

Prod Model:	MMBT5551
Channel Type:	NPN
Number Of Elements Per Chip:	1
Maximum Collector Base Voltage (V):	180
Maximum Emitter Base Voltage (V):	6
Maximum Collector Emitter Voltage (V):	160
Maximum DC Collector Current (a):	0.6
Operating Temperature Range:	-55 to 150 Degree C

Product Description

MANUFACTURER
Fairchild Semiconductor

PRODUCT CATEGORY
GP BJT

DESCRIPTION
Trans GP BJT NPN 160V 0.6A 3-Pin SOT-23 T/R

Implement this versatile NPN MMBT5551 GP BJT from Fairchild Semiconductor into an electronic circuit to be used as a current or voltage-controlled switch or amplifier. This bipolar junction transistor's maximum emitter base voltage is 6 V. Its maximum power dissipation is 350 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a maximum collector emitter voltage of 160 V and a maximum emitter base voltage of 6 V. This bipolar junction transistor has an operating temperature range of -55 °C to 150 °C.

Specifications
EU RoHS Compliant
Type NPN
Configuration Single
Number of Elements per Chip 1
Maximum Collector Base Voltage (V) 180
Maximum Emitter Base Voltage (V) 6
Maximum Collector Emitter Voltage (V) 160
Maximum DC Collector Current (A) 0.6
Maximum Power Dissipation (mW) 350
Minimum DC Current Gain 80@1mA@5V|80@10mA@5V|30@50mA@5V
Maximum Transition Frequency (MHz) 300
Product Category Bipolar Small Signal
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Maximum Collector Cut-Off Current (nA) 50
Packaging Tape and Reel
Maximum Collector Emitter Saturation Voltage (V) 0.15@1mA@10mA|0.2@5mA@50mA
Maximum Base Emitter Saturation Voltage (V) 1@1mA@10mA|1@5mA@50mA
Mounting Surface Mount
Package Height (mm) 0.93
Package Length (mm) 2.92
Package Width (mm) 1.3
PCB changed 3
Standard Package Name SOT-23
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing
