Nr+SBR Insulated Marine Shipboard Power Cable with ABS BV CCS Certificates
| Price: |
US $ 1/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificates: |
CCS, ABS, Dnv, BV, Lrs, Gl, Rina, Kr, Nk. |
| Conductor: |
Tinned Copper Wire, Class2 or 5 |
| Fire Resistant: |
on Request |
| Tape: |
Non-Woven Fabric |
| Inner Sheath: |
PVC/Pcp/Po(Shf1, Shf2)/Csp |
| Filler: |
Polypropylene/Rope/Tape(PP)/Paper |
| Shield/Armor: |
Tinned Copper Wire Braided/Galvanized Steel Wire B |
| Insulation: |
XLPE/Epr/PVC/Nr+SBR |
| Outer Sheath: |
PVC/Pcp/Po(Shf1, Shf2) or No Outer Sheath |
| Application: |
Computer |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
ABS |
Product Description
Company introduction:
Our company PTC Marine Co.Ltd is a member of China Machinery&Engineering Suzhou Co.Ltd(CMEC Suzhou Co,Ltd), it is located in Suzhou China, we are the manufacture of Marine Cables for more than 20 years, with ABS,BV,CCS,CCC,ISO9001:2008,etc.
Product desription:
Rating voltage: 0.6/1kv
Marine cables Application:
Marine cable is intended for power,lighting and control system of shipboard and off-shore building and it is also available to metallurgical industry,chemical works,power plant and mine etc.
Marine cables Classification Society Certificates:
CCS,ABS,DNV,BV,LRS,GL,RINA,KR,NK.
International Standards applied:
IEC60228 IEC60092-350 IEC60092-351 IEC60092-353 IEC60092-359
IEC60332-1 IEC60332-3-22 IEC60331 IEC60754-2 IEC60134-2
JIS C 3410 standards
JIS C 3002 JIS C 3005
JIS K 1433 JIS K 8422
DIN standards
DIN89158
DIN89159
DIN89160

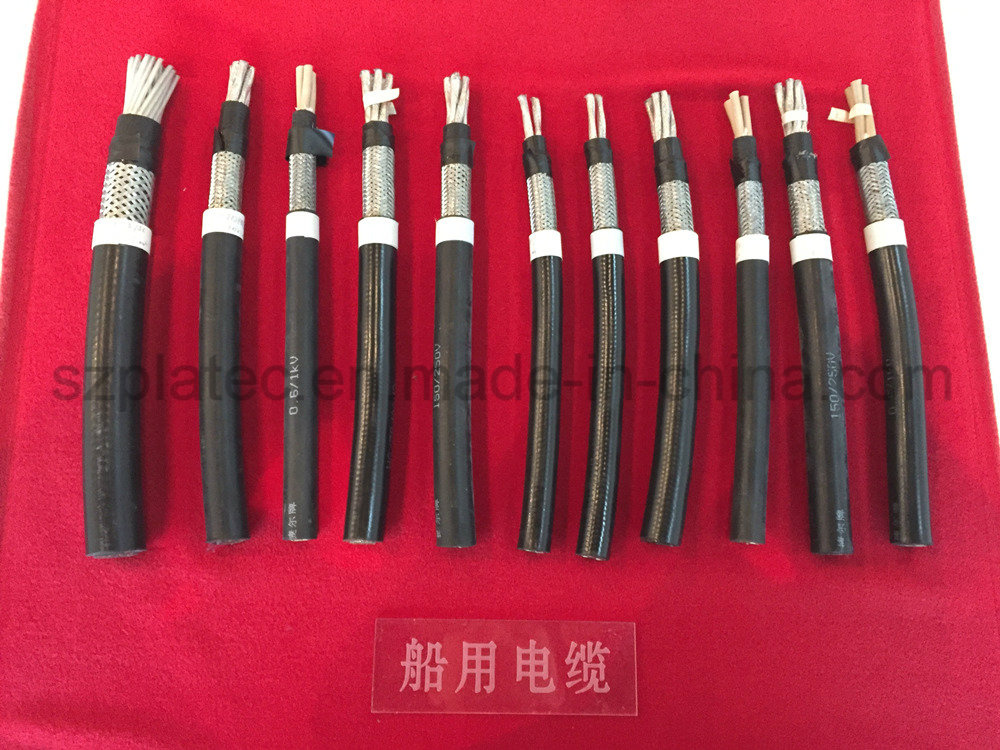

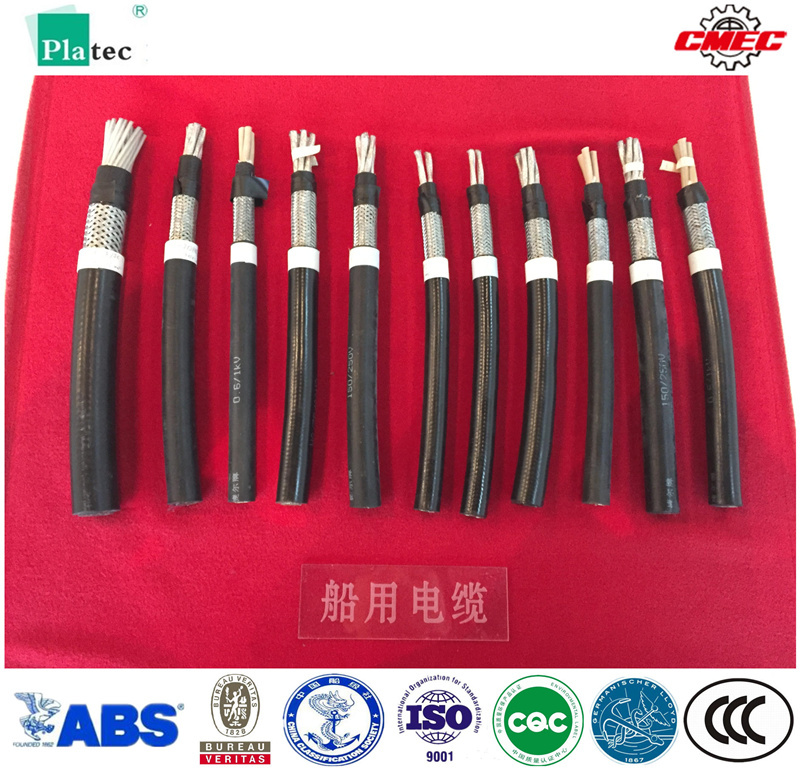

Marine cables construction:
1. Conductor: tinned copper wire,class2 or 5
2. Fire resistant Mica tape on request
3. Insulation: XLPE/EPR/PVC/NR+SBR
4. Filler:Polypropylene/rope/tape(PP)/paper
5. Tape:Non-woven fabric
6. Inner sheath: PVC/PCP/PO(SHF1,SHF2)/CSP
7. shield/Armor: tinned copper wire braided/Galvanized steel wire braided
8. Outer sheath:PVC/PCP/PO(SHF1, SHF2) or no outer sheath
Marine cables Specifications:
Cores: 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37
Nominal Cross-section Areas: 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10mm2,16 mm2, 25mm2, 35mm2, 50mm2, 70mm2,95mm2, 120mm2, 150mm2 ,185mm2, 240mm2, 300mm2
Marine cables Flammability features and other constructions:
SA:bunched cable flame retardant
SC:bunched cable flame retardant,halogen free & low smoke
NA:bunched cable flame retardant,fire resistant
NC:bunched cable flame retardant,fire resistant,halogen free & low smoke
R:Flexible conductor with construction
P:Wire or twisted pair with individual shield | Conductor | Nominal
insulation
thickness | Nominal
sheath
thickness | Overall
diameter | Approx
mass | Maximum DC resistance
at 20ºC |
Nominal
section-area
(mm) | Number and diameter of wires
(mm) | XLPE
insulation
(mm) | PVC
insulation
(mm) | XLPE
insulation
PVC
sheath
(mm) | PVC
insulation
PVC
sheath
(mm) | XLPE
insulation (mm) | PVC insulation (mm) | AL conductor(kg/km) | AL
(Ω/km) |
XLPE
insulation | PVC
insulation |
3+1
core | 3×4+1×2.5 | 1/2.25 | 0.7 | 1.0 | 1.8 | 1.8 | 15.9 | 14.1 | 328 | 191 | 7.41 |
| 1/1.78 | 0.7 | 0.8 | 12.1 |
| 3×6+1×4 | 1/2.76 | 0.7 | 1.0 | 1.8 | 1.8 | 17.1 | 15.6 | 380 | 239 | 4.61 |
| 1/2.25 | 0.7 | 1.0 | 7.41 |
| 3×10+1×6 | 7/1.34 | 0.7 | 1.0 | 1.8 | 1.8 | 18.9 | 18.2 | 465 | 328 | 3.08 |
| 1/2.76 | 0.7 | 1.0 | 4.61 |
| 3×16+1×10 | 7/1.7 | 0.9 | 1.0 | 1.8 | 1.8 | 21.0 | 20.9 | 573 | 439 | 1.91 |
| 7/1.34 | 0.7 | 1.0 | 3.08 |
| 3×25+1×16 | 7/2.13 | 0.9 | 1.2 | 1.8 | 1.8 | 25.2 | 24.6 | 782 | 623 | 1.2 |
| 7/1.7 | 0.7 | 1.0 | 1.91 |
| 3×35+1×16 | 7/2.52 | 0.9 | 1.2 | 1.8 | 1.8 | 25.4 | 26.7 | 1130 | 747 | 0.868 |
| 7/1.7 | 0.7 | 1.0 | 1.91 |
| 3×50+1×25 | 10/2.52 | 1.0 | 1.4 | 1.8 | 1.9 | 31.1 | 31.1 | 1428 | 967 | 0.641 |
| 7/2.13 | 0.9 | 1.2 | 1.2 |
| 3×70+1×35 | 14/2.52 | 1.1 | 1.4 | 1.9 | 2.0 | 34.4 | 35.6 | 1760 | 1347 | 0.443 |
| 7/2.52 | 0.9 | 1.2 | 0.868 |
| 3×95+1×50 | 19/2.52 | 1.1 | 1.6 | 2.1 | 2.2 | 38.8 | 37.8 | 2184 | 1782 | 0.32 |
| 10/2.52 | 0.9 | 1.4 | 0.641 |
| 3×120+1×70 | 24/2.52 | 1.2 | 1.6 | 2.2 | 2.4 | 42.6 | 39 | 2632 | 2186 | 0.253 |
| 14/2.52 | 1.1 | 1.4 | 0.443 |
| 3×150+1×70 | 30/2.52 | 1.4 | 1.6 | 2.3 | 2.6 | 46.4 | 41 | 3078 | 2528 | 0.206 |
| 14/2.52 | 1.1 | 1.4 | 0.443 |
| 3×185+1×95 | 37/2.52 | 1.6 | 2.0 | 2.5 | 2.8 | 51.3 | 42.3 | 3701 | 3140 | 0.164 |
| 19/2.52 | 1.1 | 1.6 | |
Our company, Suzhou Platec Import & Export Co., Ltd., is a subsidiary company in PLATEC GROUP CORPORATION, which take charge of the export business of the group from the end of 2012 Year. Our group is specially engaged in marine equipments, electric vehicles, fun trains, outboard engines, food machinery and etc.
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
