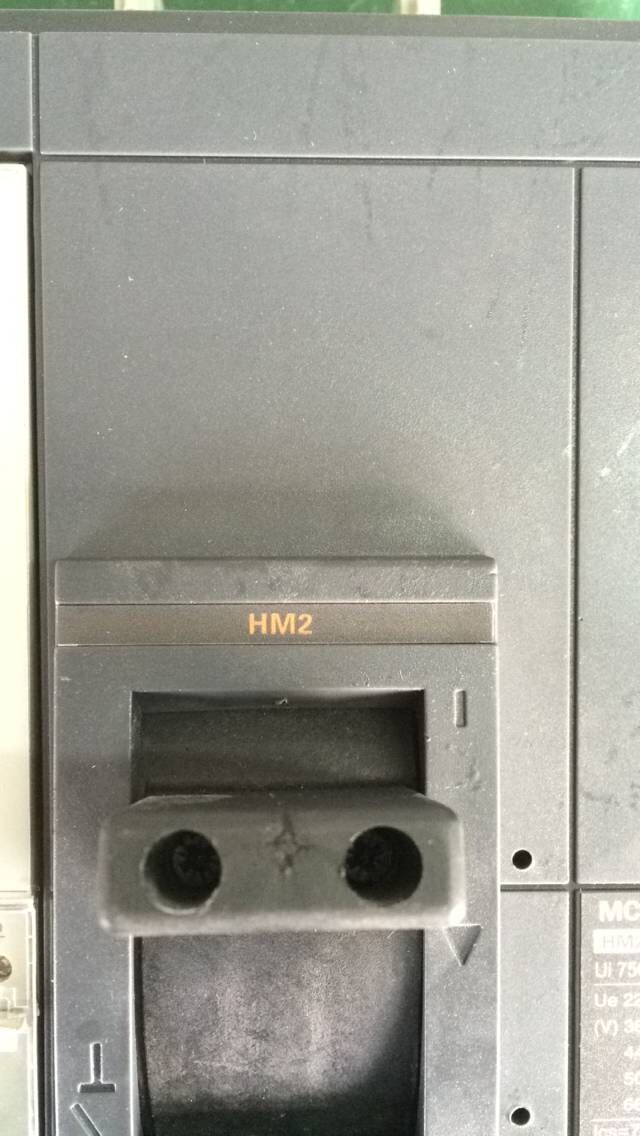

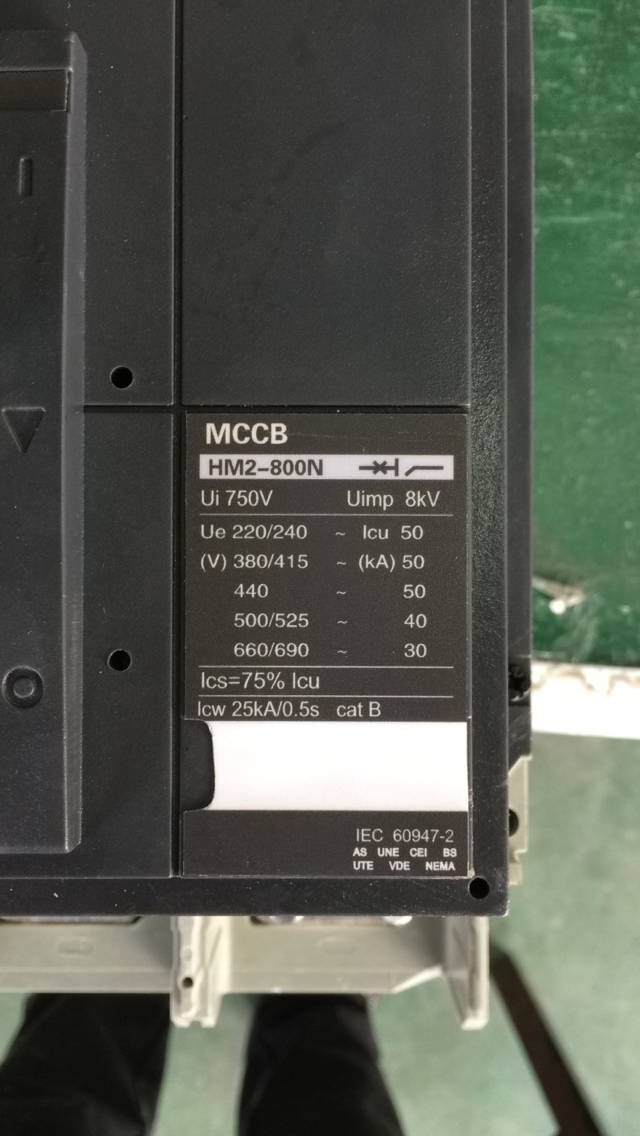

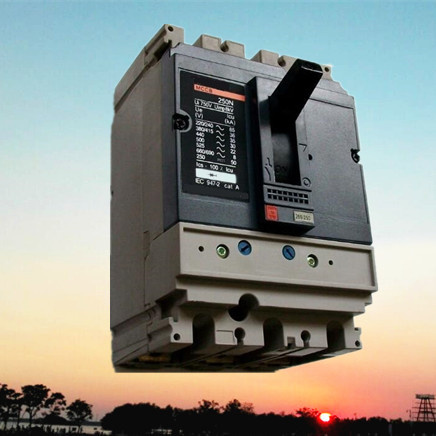

Ns (X) Current Adjustable Moulded Case Circuit Breaker (HM2-250)

Name: Ns (X) Current Adjustable Moulded Case Circuit Breaker (HM2-250)
Brand: all-electronics-online.com
SKU: 720121842
Availability: InStock
Rating: 4.4 (144 reviews)

Price:	US $ 9.8-961/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HM2-250
OEM Or ODM:	Available
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	CCC
Poles Number:	3p, 4p

Product Description

1 , Basic data

Products Name		HM2(NS) Moulded case circuit breaker (MCCB)
Advantages		compact , small size , high short-circuit breaking capacity ,no flashover
Suitable AC		50HZ
Rated insulation Voltage		750V
Rated working voltage		690V or below
Rated Current		25A~630A
Standard		IEC60947-1,GB/T-14048.1,IEC6.947-2 ,GB/T-14048.2,IEC6.9474,GB/T14047.4,IEC60947-5,GB/T14048.5
Breaking capacity rating		N, H, L
Pole No.		2P~4P
Warranty		18 months
Release Type		Alarm contact ,instantancous relaese , double release

2 , Advantages

1 , Competive price and high quality

2 , timely delivery after get the payment

3 , it can be printed the shiper mark on the outside cartons , same can be on the circuit breakers

4 , we can manufactured according each customer's design . drawings will be welcome

3 , Catalogue

Model	Inm (A)	In (A)	Ue (V)	Ui (V)	Icu (KA) AC380V	Ics(%Icu)	Overall dimension			Installation dimension			Operating Performance(times)
							L	W 3P/4P	H	A	B	Φd	Power-on	Power-off
HM2(NS)-100N	100	25,40, 50,63, 80, 100	690	750	25	75%	161	105/140	86	35	125	2-Φ6	1500	8500
HM2(NS)-100H					70	75%
HM2(NS)-100L					150	75%
HM2(NS)-160N	160	125,160	690	750	36	75%	161	105/140	86	35	125	2-Φ6	1000	7000
HM2(NS)-160H					70	75%
HM2(NS)-160L					150	75%
HM2(NS)-250N	250	200, 225, 250	690	750	36	75%	161	105/140	86	35	125	2-Φ6	1000	7000
HM2(NS)-250H					70	75%
HM2(NS)-250L					150	75%
HM2(NS)-400N	400	350, 400	690	750	45	75%	255	140/185	110	45	200	4-Φ6	1000	4000
HM2(NS)-400H					70	75%
HM2(NS)-400L					150	75%
HM2(NS)-630N	630	500, 600	690	750	45	75%	255	140/185	110	45	200	4-Φ6	1000	4000
HM2(NS)-630H					70	75%
HM2(NS)-630L					150	75%
