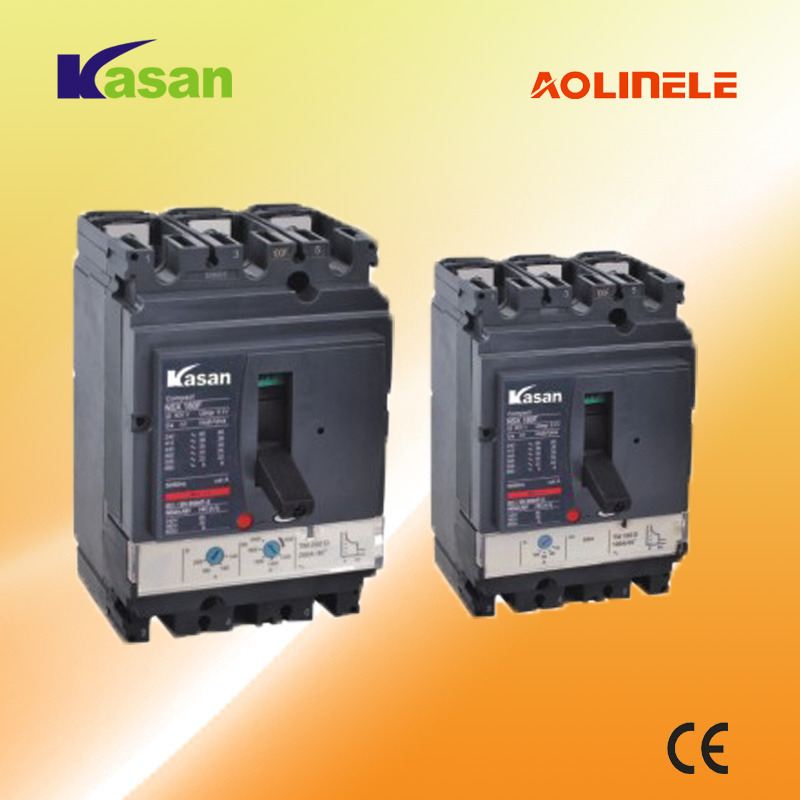

Nse, Nsx, Nsc, Nsd Moulded Case Circuit Breaker (MCCB)

Nse, Nsx, Nsc, Nsd Moulded Case Circuit Breaker (MCCB)
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: NSX
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Installation: Fixed
Structure: MCCB
Poles Number: 3
Certification: CCC

Product Description

Specifications


1. NSE,NSX,NSC,NSD moulded case circuit breaker
2,CE,ROHS, CB,IEC certificated
3,Quality guarantees 2 years.



NSE,NSX,NSC,NSD moulded case circuit breaker,

NS MCCB adopt MERLIN GERIN SCHNEIDER technic

NS series moulded case circuit breaker/mccb is one of the most advanced type breakers in the world, which adopt international advanced design and manufacture fechnology. They are suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 12.5A to 630A. It takes protect effect when mouse cage motors non-frequent start, breaking off working and protecting overload, short circuit and lacking voltage.

Tripping Characteristics of MCCB
Rated Current of Release(A) Thermodynamic Release (ambient temp +40C) Operational Current of Magnetic Release(A)
1.05In(cold state) inoperative time(h) 1.30In(heat state) operative time(h)
In≤ 63 ≥ 1 <1 10In+20%
63 ≥ 2 <2 10In +20%
100 ≥ 2 <2 5-10In+20%

Rated Current of Release(A) Thermodynamic Release (ambient temp +40C) Operational Current of
Magnetic
Release(A)
1.0In(cold state)operative time(h) 1.20In(heat state)operative time(h) 1.50In(heat state)operative time(h) 1.01In(heat state)operative time(h)
12.5≤ In≤ 400 ≥ 2 <2 ≤ 4min S 12In+20%

Main Technical Specifications
Type Rated Current (A) Poles Rated Insulating Voltage(A) Rated Operating Voltage (A) Acting Over Distance (mm) Ultimate short circuit Breaker Capacity Servies Short Circuit Breaker Capacity Operating performance(times)
