Nt-50 30A Mini Circuit Breaker MCB

Name: Nt-50 30A Mini Circuit Breaker MCB
Brand: all-electronics-online.com
SKU: 767981575
Availability: InStock
Rating: 4.8 (51 reviews)

Price:	US $ 0.65-1.5/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NT-50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frame Lever Rated Current:	32A
Pole:	2p1e/2p2e
Payment:	T/T, L/C, Paypal
Qaulity:	Best
Rated Voltage:	115/230V
Rated Current:	6A~30A
Rated Frequency:	50/60Hz
Hs No.:	853620000
Model:	Nt50
Certificate:	CE, ISO9001
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Open Frame
Poles Number:	2
Certification:	CE
Structure:	Moulded Case Circuit Breaker

Product Description

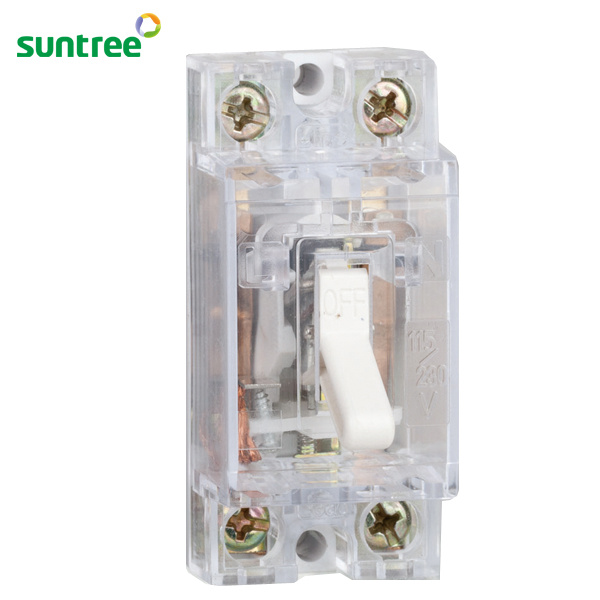

NT-50 30A mini circuit breaker MCB

NT50 MCBs/circuit breakers/breakers series is suitable for AC 50Hz, rated voltage up to 240V, rated current up to 32A, it is used for protection of the overload and short circuit of all kings of modern family applicable apparatus. It can also used for unfrequent operation and control.

Main technique parameters:
1. Frame lever Rated current Inm (A): 32
2. POLE: 2P1E/2P2E
3. Rated voltage Un (V): 115/230
4. Rated frequency (Hz): 50, 60
5. Rated current In (A): 6, 10, 16, 20, 25, 30
6. Rated breaking capacity Im(A): 115V/2500, 230/2000
7. Rated limit short-circuit current Inc (A): 3000
8. Rated residual actuating current IΔ N (MA): 30, 15, 10
9. Rated residual non-actuating current IΔ N (MA): 15, 7.5, 5

TECHNICAL:
Conform:	IEC60898
Pole NO.(P)	2
Rated Current (A)	5,10,15,20,25,30
Rated Voltage:	115/230V AC
Breaking Capacity:	1.5KA
Degree of Protection:	IP 20
Electric Life(times)	6000
Mechanical Life(times)	4000
colour:	Black, White
Connection Capacity:	1-6mm rigid conductor
Mounting:	Surface mounting Base screw Din rail base upon request
