NT Fuse NT00, NT0, NT1, NT2, NT3, NT4

Name: NT Fuse NT00, NT0, NT1, NT2, NT3, NT4
Brand: all-electronics-online.com
SKU: 662777632
Availability: InStock
Rating: 4.4 (29 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation:	Manual Type
Installation:	Fixed
Structure:	High Speed
Arc-extinguishing Medium:	Oil-immersed
Function:	Switch off on
Type:	Fuse
Breaking Capacity:	Industrial Application

Product Description

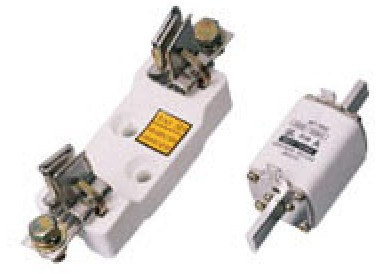

NT Fuse NT00, NT0, NT1, NT2, NT3, NT4

We mainly sell low voltage electrical fittings: Fuses, circuit breakers, contactors, relays, plug&sockets, etc.

Type: NT00, NT0, NT1, NT2, NT3, NT4

400V/500V/690V ac
NT00C: 6A, 10A, 16A, 20A, 25A, 32A, 36A, 40A, 50A, 63A, 80A, 100A
NT Low Voltage Fuse System
Fuse Bases for NT Fuses
For use with Size 00C to Size 4a fuse links
Steatite material
Rated at 690Vac
Approved to IEC 60269 (VDE 0636)

NT00: 6A, 10A, 16A, 20A, 25A, 32A, 36A, 40A, 50A, 63A, 80A, 100A, 125A
NT0: 6A, 10A, 16A, 20A, 25A, 32A, 36A, 40A, 50A, 63A, 80A, 100A, 125A, 160A
NT1: 80A, 100A, 125A, 160A, 220A, 224A, 250A
NT2: 125A, 160A, 220A, 224A, 250A, 300A, 315A, 355A, 400A.
NT3: 315A, 355A, 400A, 425A, 450A, 500A, 630A
NT4: 500A, 630A, 700A, 800A, 1000A, 1250A
NT4a: 630A, 700A, 800A, 1000A, 1250A
Fuse Bases for NT Fuses
PBNT00, BNT00 base for NT00C, NT00
BNT0 base for NT0
BNT1 250A 690V
BNT2 400A 690V
BNT3 630A 690V
BNT4 1250A 690V

FuseSize	A	B	C	D	E	F	H
00C	78.5	49.5	15	21	10	6	48
00	78.5	50.5	15	30	10	6	58
0	125	67	15	30	10	6	60
1	135	67	20	48	10	6	60
2	150	68	25	58.5	10	6	70
3	150	68	32	67	10	6	82
4	200	83	50	88	10	8	112
4a	200	87	50	95	10	8	113
