Ntc Thermsitor Used in Motors

Name: Ntc Thermsitor Used in Motors
Brand: all-electronics-online.com
SKU: 828217765
Availability: InStock
Rating: 4.5 (73 reviews)

Price:	Negotiable/Piece
Min Order:	500/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MF5A-5
Resistance:	Sensitive Resistor
Function For Resistance:	Protective Resistor
Installation:	DIP Resistor
Type:	Thermal Resistor
Material:	Epoxy
Package Type:	Package
Application:	Motors

Product Description

Introduction:
Its measurement range is generally -10 ~ +300 ºC, can also be done -200 ~ +10 ºC, and even can be used for +300 ~ +1200 ºC environment for temperature measurement. RT is NTC thermistor; R2 and R3 is the bridge balance resistance; R1 is the starting resistance; R4 is the full scale resistance, the calibration table, also known as the check resistance; R7, R8 and W for the voltage divider, for the bridge to provide a stable DC power supply. R6 is connected in series with the meter head (microampere table), which corrects the scale of the scale and limits the current flowing through the head. R5 is in parallel with the head and protects the unbalanced bridge arm (ie, R1, RT) Into a thermal element RT for the temperature sensor probe.As the thermistor resistance changes with the temperature changes, so that the bridge between the diagonal line between the instructions also change accordingly. This is the thermal The working principle of the resistor thermometer.
Thermistor thermometer accuracy can reach 0.1 ºC, can be as little as 10s. Ittemperature time is not only suitable for granary thermometer, but also can be used in food storage, medicine and health, scientific farming, marine, deep wells, Glaciers and other aspects of temperature measurement.

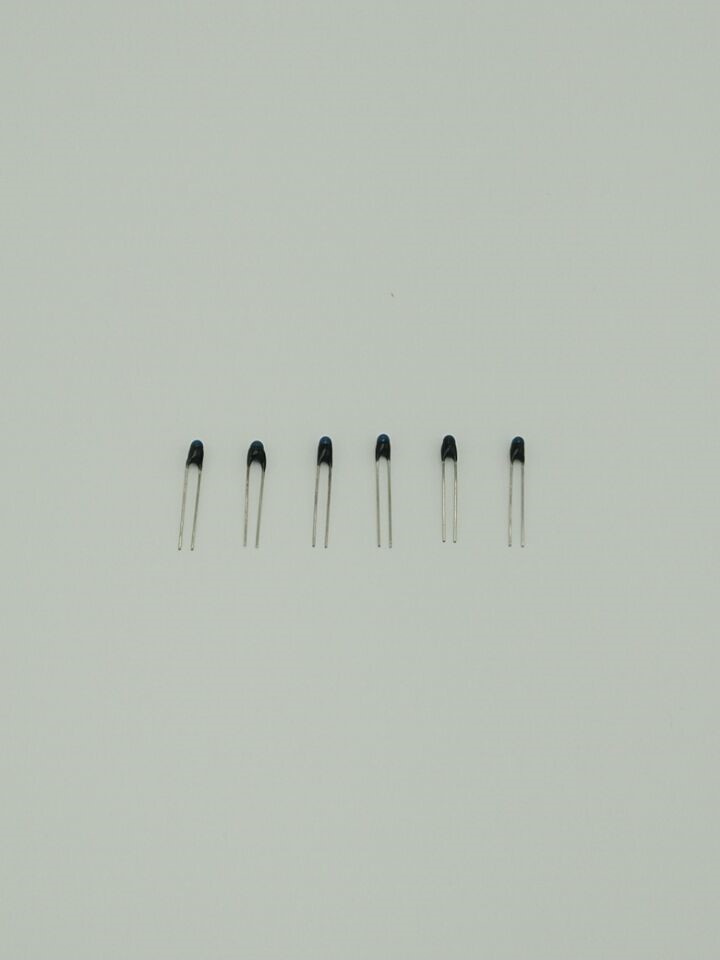

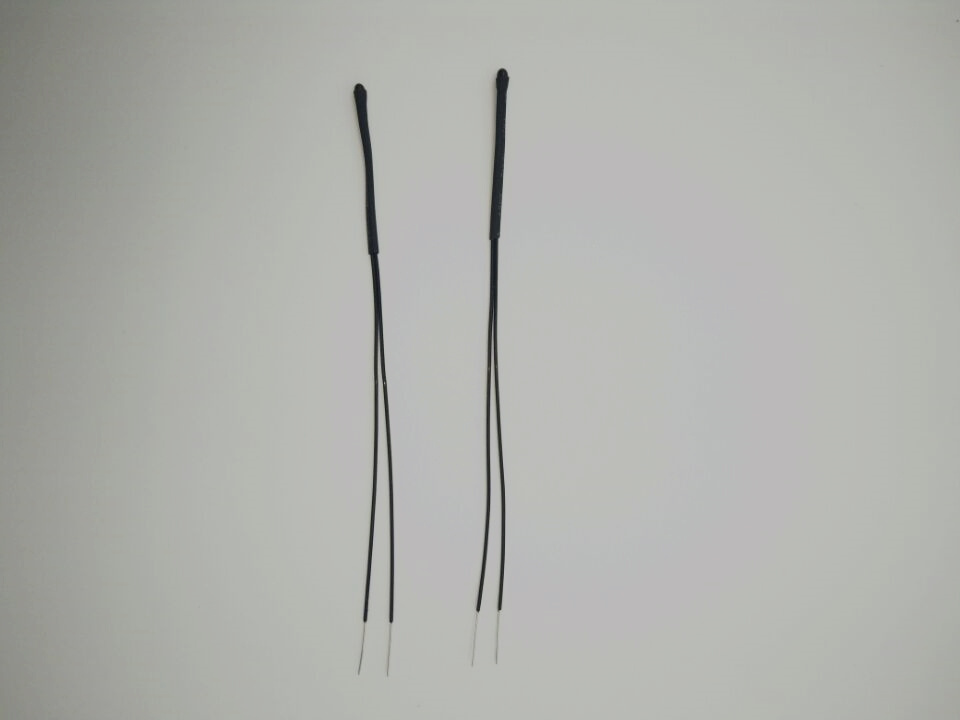

Epoxy thermistor is made of NTC chip, epoxy and CP lead wire or enamelled wire by soldering them together and coating soldered part by epoxy . Various epoxy color available and different lead wire diameter available , for example 0.25 ~0.5mm .
Specifications:
Epoxy coated, insulated
Miniature designed and high accuracry,
Fast response,
Good stability

Application:
Mainly in motors and battery temperature measuring etc.

You may also like these products:

Hefei Jingpu Sensor Technology Co., Ltd is a manufacturer work in researing, producing and saling of NTC thermistor and temperature sensor. We locate in convenient and anenitious national grade Hefei High&New Technology Industry Zone.

We produce full line of epoxy and glass encapsulation thermistors, and various encapsulation temperature sensors. Our products have been widely used in household appliaces( Air-conditioner, Refrigerator, Water heater, Incubator, etc. ) Automobiles( Water wheel, Rearview mirror, Tyre, Power battery, etc. ), Fire alarmer, Meteorology etc.

We equipped with professional equipments such as high precision constant oil tank, our engineers are expert with many years experiences. Our company is ISO9001 certified and have many years in supply for medical and automobile field.

Our company keeps to be innovative in technique and applications. We work with our customers in developing and improving end user products. Aims for first class quality, meeting customers and establishing company credit, our company trains staffs continuously the idea that Quality is Life. We are perfect in every details and air for developing and pruducing fine products to make us a reliable supplier with our excellent quality and services.

Contact us now for details and improve projects efficiency with our expertise.
