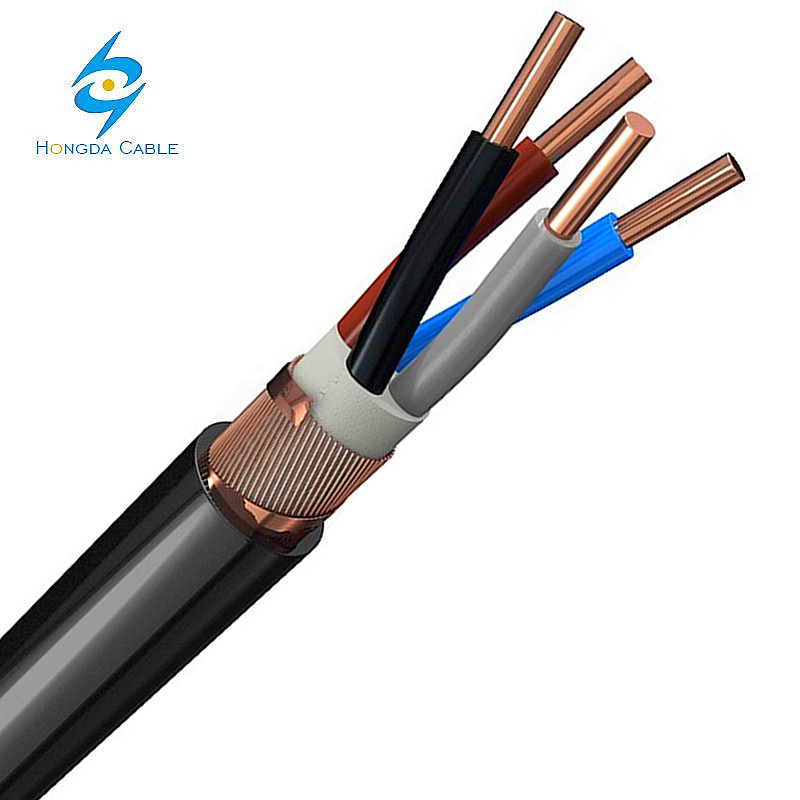

Nycy Naycy Nycwy Naycwy Power Cable

NYCY NAYCY NYCWY NAYCWY Application and Description

NYCWY Power cables is for energy supply, preferably used for underground laying, especially in subscriber networks, power station as well as control impulses and test data. Overall, where increased electrical and also mechanical protection are required. These cables are installed in open air, in underground, in water, indoors and in cable ducts. The corrugated concentric conductor (CW) is allowed to use as neutral, protective or earth conductor. Simultaneously, this also is permitted to apply as a screen for example earthed-connected protection against contact. Due to the typical construction of corrugated concentric conductors (Ceander), are possible to obtain many more cable joints, without cutting any conductor. In that way the operating reliability is guaranteed.

NYCY NAYCY NYCWY NAYCWYStandard and Approval

VDE0276 part 603, CENELEC HD603 S1, IEC 60502

NYCY NAYCY NYCWY NAYCWY Cable Construction

- Plain copper conductors solid or stranded versions, conductor types
10-16 mm² round, solid conductors (re) alt.
10-25 mm², stranded conductor (rm),
35-240 mm², sector shaped conductor, stranded (sm)
- to DIN VDE 0295 cl. 1 or cl. 2, BS 6360 cl. 1, IEC 60228 and HD 383
- PVC insulation DIV4 to HD 603.1
- Color coded to DIN VDE 0293-308, 0276 part 603 or HD 186
- PVC bedding
- Concentric conductor: ceander shaped copper wires and helical copper tape
- PVC outer jacket DMV5 to HD 603.1

NYCY NAYCY NYCWY NAYCWY Technical Characteristics

- Working voltage: 600/1000 volts
- Test voltage: 4000 volts
- Flexing bending radius: 15 x Ø
- Static bending radius: 12 x Ø
- Flexing temperature: -5º C to +50º C
- Fixed installation temperature: - 40º C to +70º C
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: >100 MΩ x km

NYCY NAYCY NYCWY NAYCWY Cable Parameter
