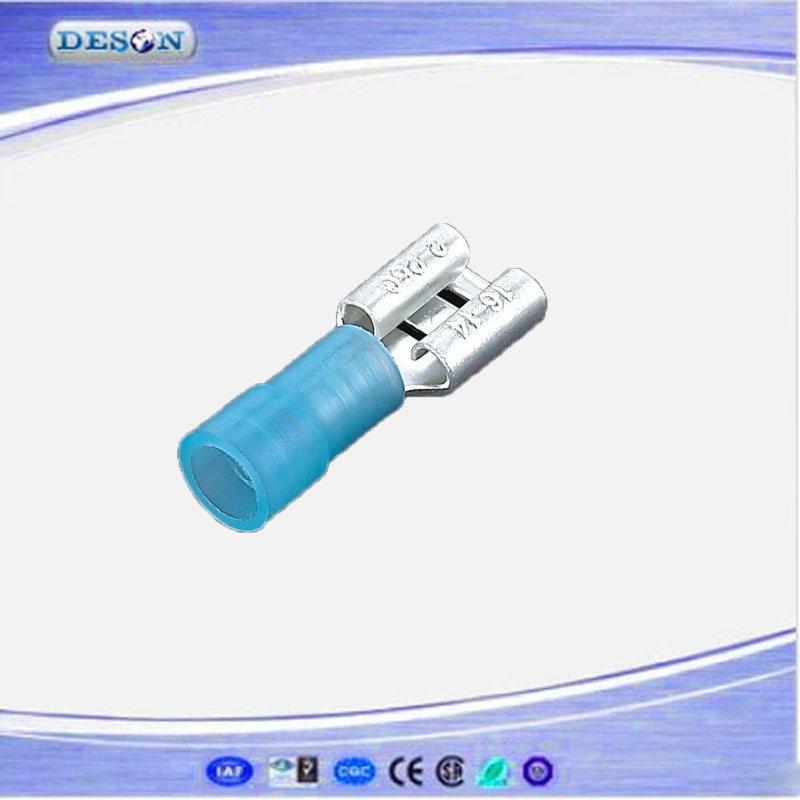

Nylon Insulated Female Quick Electrical Terminal

Name: Nylon Insulated Female Quick Electrical Terminal
Brand: all-electronics-online.com
SKU: 791558725
Availability: InStock
Rating: 4.5 (120 reviews)

Price:	US $ 2/Bag
Min Order:	1/Bag
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FDNY
Insulated Material:	Nylon
Terminal Material:	Copper
Max Electrical Rating:	300V
Temperature:	105 Degree
Material:	Copper
Application:	Conduct Electricity
Type:	Electrical Terminal
Shape:	Electrical Terminal
Character:	Electrical Terminal
Interface Type:	Electrical Terminal
Brand:	Deson

Product Description

Nylon Insulated Female Electrical Terminal

Material	Copper
Plating	Tin
Insulation	Non
Color
Working Temp	-40 to +105°C
Cable Range	A.W.G.:22-16 (0.5-1.5mm²),16-14(1.5-2.5mm²), 14-12(2.5-4mm²), 12-10(4-6mm²)
MOQ	Small orders accepted
Payment Term	A.L/C,T/T (Bank Transfer, Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
Supply Ability	2 x 20 feet containers per week
Packaging Details	A.Common Packing:100pcs + polybag + label + inner box+ export carton
Packaging Details	B.Customized Packing:OEM Label,Inner Box,Blister,etc
HS Code	8536900000
Origin Country	Zhejiang, China
Test Report	CE ROHS

0.5~1.5mm2(22-16) Imax=10A
ITEM.NO.	MEMA TAB(mm)	Thickness of material(mm)	DIMENSION
ITEM.NO.	MEMA TAB(mm)	Thickness of material(mm)	w(mm)	d(mm)	D(mm)	L(mm)	H(mm)
FDNY1.25-110(5)D	0.5×2.8	0.3	3.8	1.7	3.8	20	11
FDNY1.25-110(8)D	0.8×2.8	0.35	3.8	1.7	3.8	20
FDNY1.25-187(5)	0.5×4.75	0.35	5.8	1.7	3.8	20
FDNY1.25-187(8)D	0.8×4.75	0.35	5.8	1.7	3.8	20
FDNY1.25-205D	0.5×5.2	0.35	6.5	1.7	3.8	20
FDNY1.25-250D	0.8×6.35	0.4	7.5	1.7	3.8	22
FDNY1.25-312D	0.8×8.0	0.4	9.1	1.7	3.8	25
1.5~2.5mm2(16-14) Imax=15A
ITEM.NO.	MEMA TAB(mm)	Thickness of material(mm)	DIMENSION
ITEM.NO.	MEMA TAB(mm)	Thickness of material(mm)	W(mm)	d(mm)	D (mm)	L(mm)	H(mm)
FDNY2-110(5)D	0.5×2.8	0.3	3.8	1.7	4.3	20	11
FDNY2-110(8)D	0.8×2.8	0.3	3.8	1.7	4.3	20
FDNY2-187(5)D	0.5×4.75	0.35	5.	1.7	4.3	20
FDNY2-187(8)D	0.8×4.75	0.35	5.6	1.7	4.3	20
FDNY2-205D	0.5×5.2	0.35	6.5	1.7	4.3	20
FDNY2-250D	0.8×6.35	0.4	7.5	1.7	4.3	22
FDNY2-312D	0.8×8.0	0.4	9.1	1.7	4.3	25
4~6mm2(12-10) Imax=24A
ITEM.NO.	MEMA TAB(mm)	Thickness of material(mm)	DIMENSION
ITEM.NO.	MEMA TAB(mm)	Thickness of material(mm)	w(mm)	d (mm)	D (mm)	L(mm)	H(mm)
FDNY5.5-250D	0.5×6.35	0.4	7.5	3.4	6.2	24	13
FDNY5.5-375D	1.2×9.4	0.5	10.9	3.4	6.2	28.6	13
