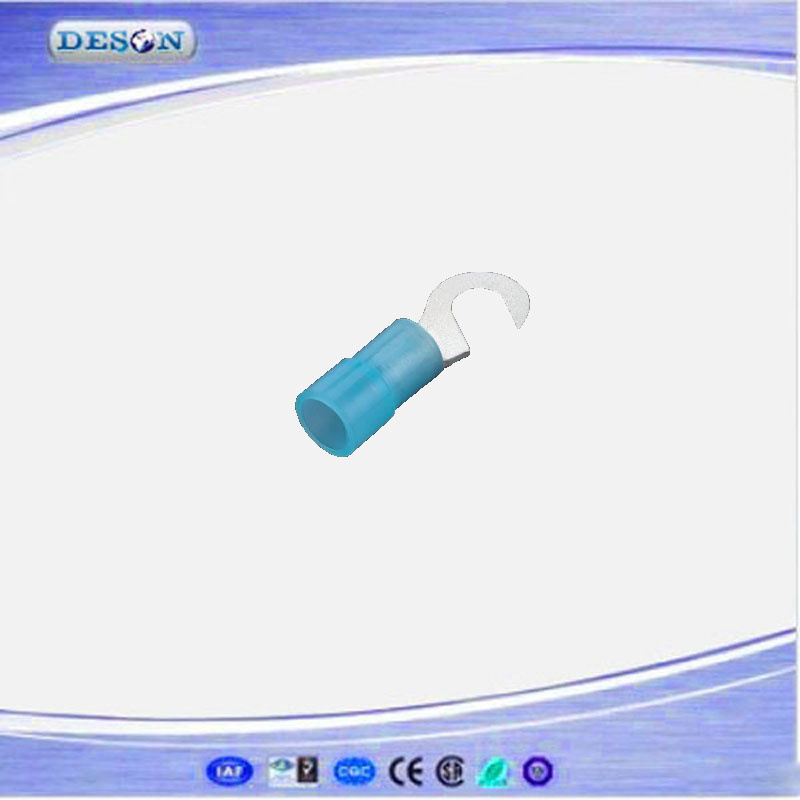

Nylon Insulated Hook Copper Battery Terminal

Name: Nylon Insulated Hook Copper Battery Terminal
Brand: all-electronics-online.com
SKU: 791499005
Availability: InStock
Rating: 4.3 (91 reviews)

Price:	US $ 2/Bag
Min Order:	1/Bag
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HNY
Insulated Material:	Nylon
Terminal Material:	Copper
Max Electrical Rating:	600V
Max Temperature:	105degree
Material:	Copper
Application:	Conduct Electricity
Type:	Battery Terminal
Shape:	Battery Terminal
Character:	Battery Terminal
Brand:	Deson

Product Description

Nylon Insulated Spade Copper Battery Terminal

Material	Copper
Plating	Tin
Insulation	Nylon
Color	Red, Yellow, Black,Grey and other customized
Working Temp	-40 to +105°C
Cable Range	A.W.G.:22-16 (0.5-1.5mm²),16-14(1.5-2.5mm²), 14-12(2.5-4mm²), 12-10(4-6mm²)
MOQ	Small orders accepted
Payment Term	A.L/C,T/T (Bank Transfer, Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
Supply Ability	2 x 20 feet containers per week
Packaging Details	A.Common Packing:100pcs + polybag + label + inner box+ export carton
Packaging Details	B.Customized Packing:OEM Label,Inner Box,Blister,etc
HS Code	8536900000
Origin Country	Zhejiang, China
Test Report	CE ROHS.

ITEM NO	US system bolts	Mouth diameter of spiral	Dimension(mm)					color	direction
ITEM NO	US system bolts	D2(mm)	w	L	F	H	DØ	color	direction
HNY1.25-3.5	#6	3.7	8	21	7	10	4.3	Red
HNY1.25-3.5	#6	3.7	8	21	7				0.5-1.5mm2
HNY25-4	#8	4.3	8	21	7				(US wire guage22-16)
HNY1.25-5	#10	5.3	8	21	7				Imax=19A
HNY1.25-6	1/4inch	6.4	11.6	28	11.1				thickness:0.7mm
HNY2-3.5	#6	3.7	8.5	22	7.75	10	4.9	Blue

									1.5-2.5mm2
HNY2-4	#8	4.3	8.5	22	7.75				(US wire guage16-14)
HNY2-5	#10	5.3	9.5	22	7.25				Imax=27A
HNY2-6	1/4inch	6.4	12	27	11				thickness:0.8mm
HNY5.5-3.5	#6	3.7	7.2	21.4	5.9	13	6.7	yellow
HNY5.5-3.5	#6	3.7	7.2	21.4	5.9				4-6mm2
HNY5.5-4	#8	4.3	9.5	25.5	8.25				(US wire guage12-10)
HNY5.5-5	#10	5.3	9.5	25.5	8.25				Imax=48A
HNY5.5-6	1/4inch	6.4	12	31.5	13				thickness:1.0mm
