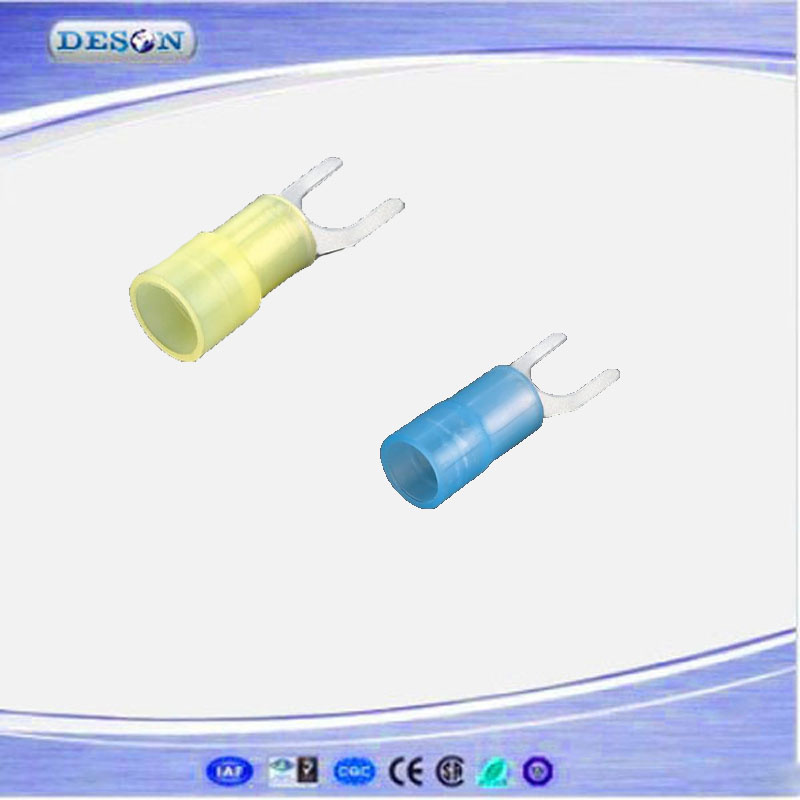

Nylon Insulated Spade Copper Wire Terminal

Name: Nylon Insulated Spade Copper Wire Terminal
Brand: all-electronics-online.com
SKU: 791494615
Availability: InStock
Rating: 4.7 (52 reviews)

Price:	US $ 2/Bag
Min Order:	1/Bag
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SNY
Insulated Material:	Nylon
Terminal Material:	Copper
Max Electrical Rating:	600V
Max Temperature:	105degree
Material:	Copper
Application:	Conduct Electricity
Type:	Wire Terminal
Shape:	Wire Terminal
Character:	Wire Terminal
Brand:	Deson

Product Description

Nylon Insulated Spade Copper Wire Terminal

Material	Copper
Plating	Tin
Insulation	Nylon
Color	Red, Yellow, Black,Grey and other customized
Working Temp	-40 to +105°C
Cable Range	A.W.G.:22-16 (0.5-1.5mm²),16-14(1.5-2.5mm²), 14-12(2.5-4mm²), 12-10(4-6mm²)
MOQ	Small orders accepted
Payment Term	A.L/C,T/T (Bank Transfer, Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
Supply Ability	2 x 20 feet containers per week
Packaging Details	A.Common Packing:100pcs + polybag + label + inner box+ export carton
Packaging Details	B.Customized Packing:OEM Label,Inner Box,Blister,etc
HS Code	8536900000
Origin Country	Zhejiang, China
Test Report	CE ROHS.

model	american	metric	demension(mm)					color	explanation
model	american	metric	W	F	L	H	DΦ	color	explanation
SNY1.25-3.2	#4	3.2	5.7	6.5	22.2	11.0	4.0	red	Wire range:0.5-1.5mm²;(awg:22-16) MAX current:Imax=19A MAX temp:105ºC
SNY1.25-3.5S	#6	3.7	5.7	6.5	22.2
SNY1.25-3.5L	#6	3.7	6.4	6.5	22.2
SNY1.25-3.5LL	#6	3.7	7.2	6.5	22.2
SNY1.25-4S	#8	4.3	6.4	6.5	22.2
SNY1.25-4M	#8	4.3	7.2	6.5	22.2
SNY1.25-4L	#8	4.3	8.1	6.5	22.2
SNY1.25-5S	#10	5.3	8.1	6.5	22.2
SNY1.25-5L	#10	5.3	9.5	6.5	22.2
SNY1.25-6S	1/4	6.5	9.5	6.5	22.2
SNY1.25-6L	1/4	6.5	12.0	11.0	28.2
SNY1.25-8	5/16	8.5	14.0	12.5	30.2
SNY2-3	#4	3.2	5.7	6.5	22.2	11.0	4.5	blue	Wire range:1.5-2.5mm²;(awg:16-14) MAX current:Imax=27A MAX temp:105ºC
SNY2-3.5S	#6	3.7	5.7	6.5	22.2
SNY2-3.5L	#6	3.7	6.4	6.5	22.2
SNY2-3.5LL	#7	3.7	7.2	6.5	22.2
SNY2-4S	#8	4.3	6.4	6.5	22.2
SNY2-4M	#8	4.3	7.2	6.5	22.2
SNY2-4L	#8	4.3	8.1	6.5	22.2
SNY2-5S	#10	5.3	8.1	6.5	22.2
SNY2-5L	#10	5.3	9.5	6.5	22.2
SNY2-6S	1/4	6.5	9.5	6.5	22.2
SNY2-6L	1/4	6.5	12.0	11.0	28.2
SNY2-8	5/16	8.5	14.0	12.5	30.2
SNY5-3.5S	#6	3.7	7.2	7.5	24.4	13.0	6.4	yellow	Wire range:4-6mm²;(awg:12-10) MAX current:Imax=48A MAX temp:105ºC
SNY5.5-3.5	#6	3.7	8.3	7.5	26.5
SNY5-4SS	#8	4.3	7.2	7.5	24.4
SNY5.5-4S	#8	4.3	8.3	7.5	26.5
SNY5.5-4L	#8	4.3	9.0	7.5	26.5
SNY5.5-5	#10	5.3	9.0	7.5	26.5
SNY5.5-6S	1/4	6.5	9.0	7.5	26.5
SNY5.5-6L	1/4	6.5	12.0	12.0	32.5
SNY5.5-8	5/16	8.5	14.0	11.5	31.5
