Zhejiang Wrlong High Temperature Wire & Cable Co., Ltd. >> Nylon Sheathed PVC Insulated Wire

Nylon Sheathed PVC Insulated Wire

Nylon Sheathed PVC Insulated Wire
Price: US $ 0.05-1/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 10000/Meter
Pay Type: L/C,T/T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Insulated
Conductor Type: Stranded
Application: Heating
Conductor Material: Copper
Insulation Material: PVC
Certification: RoHS
Sheath Material: Nylon
Range Of Application: Heat Resistant
Brand: Werle

Product Description

Nylon sheathed  PVC insulated wire
Rated voltage: 300V,
Rated temperature: 80
OD Tolerance: ± 0.10mm
Conductor: Tinned or bare, strand or solid copper
Insulator: PVC
Testing: UL VW-1, CSA FT1
Uniform insulation thickness of wire to ensure easy stripping and cutting
Resistant to acid, alkali, oil, moisture and fungi, comforming RoHS
Application fields: Building, Automobile internal wiring, Electric tool, Core wire of Wind power cable, Instrumentation, etc.
ConductorInsulatorMaximum
Resistance
at 20 centidegree
ohm/km

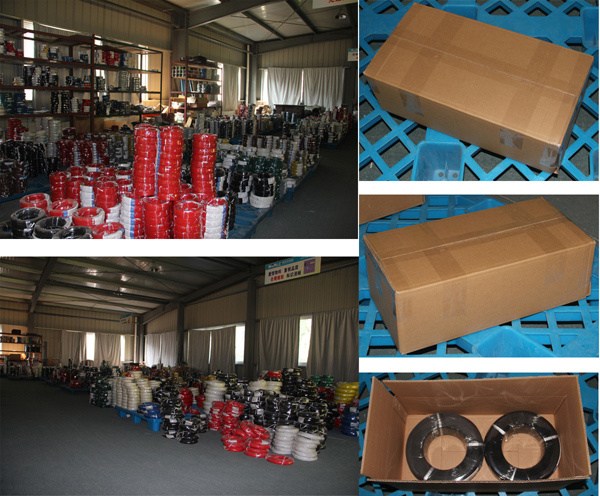

Packing
mt/coils
AWGConductor
Construction
No./mm
Insulation
Thickness
mm
Over
Diamter
 mm
287/0.1270.792.00223.00610
267/0.160.792.10139.00610
2411/0.160.792.2088.70610
2217/0.160.792.4057.40610
2021/0.1780.792.5037.10610
1834/0.1780.792.8023.70610
1626/0.2540.793.1014.20610
1441/0.2540.793.509.63610
1265/0.2540.794.006.06610
10105/0.2540.794.603.80610




ZHEJIANG WRLONG HIGH TEMPERATURE WIRE & CABLE Co., Ltd is a modernized enterprise which has specialized in high-temperature wire and cable for many years. It locates in the biggest production base of low-voltage appliance in China_YUEQING CITY, ZHEJIANG PROVINCE and it is next to OUJIANG rivers whose throughput is beyond thousands of ton every day as well. It is obvious that its transportation or traffic is very convenient and expeditious.

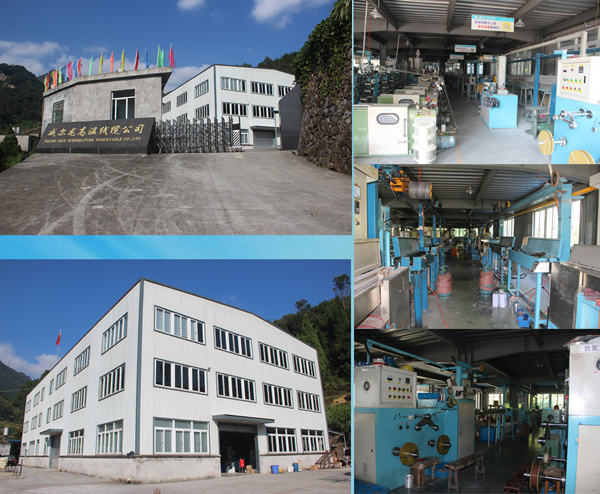

Our company owns the most advanced production equipment in China at present and we have imported the direct inverter microcomputer-controlled production line device from England. It has all sorts of detection device, abundant funds and trained professionally technicians as well.

Our leading products contain the teflon wire and cable which is used in Aerospace and Astronautics and high - temperature wire and cable which contains the fluoropolymers. Its types have AF46-200, AFK-250, AFPF-200, KFFR-250 and so on. Our company also produce high-temperature precise compensating conductor and its types are KX, KC, BC, SC, EX, IX, TX, NX, NC, EX and so on.

Our products have passed the certification of ISO9001-200, CCC, RoHS, UL and other test reports for the products from relevant organizations or institutions with the persistent efforts of all of the staff in WERLE and the products can find a ready market all over the world.

Our company sticks to regard the technology as guide, quality in pursuit of development as management ideas, quality create famous brands as tenet and thinks highly of quality management of the products in order to realize the integration of production, detection, selling and service and internationalization of the markets.

Society developping and make progresses gradually, WERLE strives with pressure, explore with urgence, struggle with blueprint and contend with smile for better future with the new and old clients together!
