| Prod Model: |
TK208 |
| Application: |
Car, Truck, Fleet |
| GSM Frequencies: |
Quad-Band |
| GPS Chip: |
U-Blox 7 Chipset |
| Receiving Ways: |
55 Channels |
| Backup Battery: |
Internal |
| Warranty: |
12 Months |
| Mobile APP: |
Android and Ios |
| Antenna: |
Internal |
| OBD Connector: |
Male |
| Use: |
Automotive |
| Type: |
GPS Tracker and Alarm |
| Operating Principle: |
GPS GSM GPRS |
Product Description

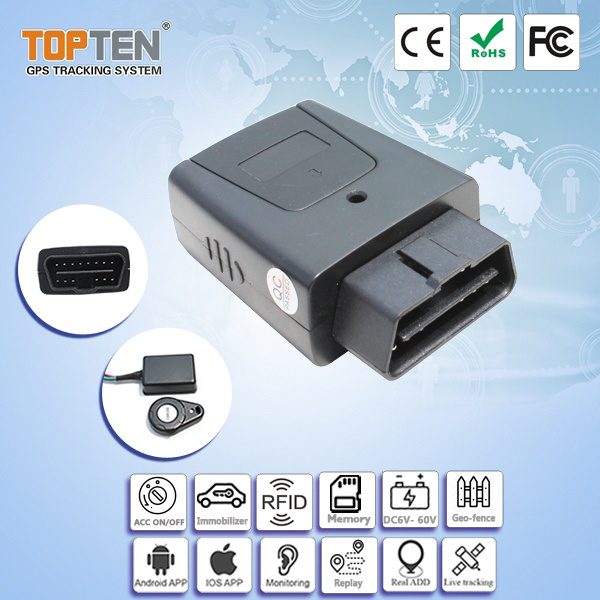

OBD Car GPS Location Tracking System with History Driving Report (TK208-ER)
TK208 OBD GPS tracker is the cost-effective solution for security & real-time tracking. It has unique features as followings:
1. Plug & play design with OBD connector, easy installation;
2. Smart engine ON/OFF status detection;
3. Support RFID & wireless immobilizer for security.
Features & Functions
1. Track on SMS, Web or APP;
2. GPS tracker+ car alarm functions, arm/disarm by SMS/web/phone call;
3. Arm/disarm automatically by RFID tag, RFID identification;(Optional)
4. Check the car's real physical address (such as city & street name.);
5. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.;Check the location directly by the Google map's URL;
6. Smart engine ON/OFF status detection without extra connection;
7. Wireless immobilizer to stop the car safely by SMS or Web (optional);
8. Data logger to store 5520 waypoints.
9. Odometer function
10. Over-speed alarm;Movement alarm which can be used as an alarm;
11. Engine on alarm;Vibration alarm;
12. Power failure alarm;13. Monitor the voice;
14. Voltage:10V-60VDC, suitable for all vehicles with OBD connector ;
15. Trace optimization when vehicles turns a corner;
16. Plug & play design, easy installation;
17. Reliable design of framework with hardware watchdog.Power save design.
Specifications:
| Working voltage: | 10 ~60VDC |
Power Consumption:
| Standby current:8mA
Working current: 50mA;
Peak current: 800mA; |
| Inside Backup battery: | Rechargeable 3.7V 350mAh Li-ion battery |
| Size of the main unit: | 70*51*26 (mm) |
| Weight of the main unit: | 55g |
| Working temperature: | -20 ~ 85ºC |
| Humidity: | 0 ~ 95% |
| GSM frequencies: | Quad-band: 850MHz/900MHz/1800MHz/1900MHz |
| GPS chip: | U-blox 7 chipset |
| Receiving ways | 56 channels |
| Working frequencies | 1575.42Mhz C/A(GPS) |
| Receiving sensibility | -162dBm |
| Positioning accuracy | ≤10m (wide-open area) |
| Speed accuracy | ≤0.2M/S (wide-open area) |
| Positioning mode | Auto 2D/3D |
| Hot start | 1 sec., average |
| Warm start | 2 sec., average |
| Cold start | 40 sec., average |
FAQ:
Q: Can I install it myself without a car electrician?
A: Yes. TK208 is plug and play design. It's super easy to install, just need to plug it into the car's OBD port. Any one can do it.
Q: Is it a GPS device?
A: Yes. It is. The device can be tracked by GPS/GSM/GPRS/LBS.
Q: What GSM frequencies does it support?
A: GSM frequencies are 850/900/1800/1900MHz. The GPS device can work worldwide.
Q: Can I check my vehicle location from any computer?
A: Yes, with the coordinates received by your mobile phone you can check your vehicle location from any computer in the world with Internet access and Google maps (no download or special software required).
Q: Can I track more than one vehicle from my mobile phone?
A: Yes, any number of vehicles. Just select the tracker's number you want to track from your mobile phone contacts list.
Q: What happens if the vehicle battery is disconnected?
A: The tracker will automatically text your mobile with WARNING - VEHICLE BATTERY LOW, provided the battery back-up is connected and the batteries are in good order.
Q: What happens if the back-up battery is disconnected?
A: The tracker will automatically text your mobile with WARNING - BACK-UP BATTERY LOW, provided the vehicle battery is connected.
Q: How can I get samples?
A: After client confirm the model and quanity, we'll send proforma invoice to clients for sending payment.
Samples will be sent upon receipt of payment. Get in touch with Erin now for samples.
Q: After I send payment, when can I receive the samples?
A: After delivery, it usually takes 3-7 days for the package to arrive in the destination country.
Delivery time:
Order <100pcs, products will be delivered in 3 working days upon receipt of the payment;
Order >100pcs, products will be delivered in 3-7 days or according to our production schedule
Warranty:
We provide 12 months warranty for all product.
In case of any defective GPS tracker, customers can send it back to us, we'll examine and fix it.
Payment:
T/T, Western Union, PayPal, Credit Card
With TOPTEN GPS tracker, you can track your vehicle/fleets 100% as follows:
Live track your vehicle.
Record history traces 24/7
Record speed and fuel level
Get alert once vehicle are tampered or driver is over speeding
Download reports including time, location, speed, direction, fuel, etc.
We have our own R&D team developing 4-5 new models each year.
Products are with CE, FCC certificate.
Technical support and after-sales service are available 24/7.
