| Prod Model: |
OBD GPS Tracker 306A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Vehicle Tracking (9-40V), Car Rental Fleet Manage |
| Weight: |
60g |
| Tracking: |
by SMS or GPRS |
| Tracking Way: |
SMS, GPRS Web Platform, Android Ios APP |
| Warranty Time: |
12 Months |
| Packaging: |
50 Unit /Carton in Standard Color Box |
| Delivery Time: |
2-3 Business Days |
| GPS Sensitivity: |
-159dBm |
| Request For OBD Data By SMS: |
Fuel, Mileage, Engine Status Diagnostic Trouble |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No |
| Operating Principle: |
GPS Position and GSM Transmit |
| Port Number: |
20 |
| Model: |
OBD GPS306 |
| Brand: |
Baanool GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

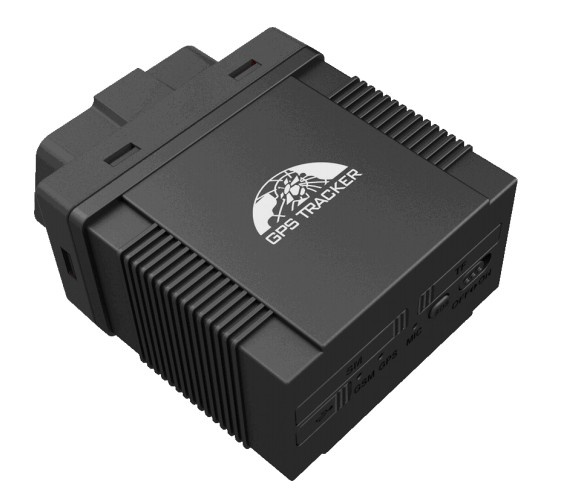

OBD GPS GPRS SIM Card Tracker 306A with Andriod APP TrackingModel GPS3061. Introduction
This product is based on GSM / GPRS network and GPS satellite positioning system, built-in GSM and GPS antenna,built-in 2.4G attendance management functions. Insert into the car OBDII interface directly to read the data from car computer,you can locate and manage the vehicle remotely via SMS or GPRS. Easy to intall,no wiring harness.
2. Applications
12-24V cars , vehicles , trucks , fleet management
3. How does the GPS Tracker work?
GPS306 is our newly designed plug-and -play OBD tracker. It could read OBD parameters from car ECU and GPS tracking for car location; All data will be transmit to the backend server for remote diagnostic and tracking purpose.
4.Content Specification
DIM: 64.5× 50× 27mm
Weight: 60g
Network: GSM/GPRS
Band: 850/900/1800/1900Mhz
GPS Sensitivity: -165dBm
GPS Accuracy: 5m
Backup Battery: Chargeable 3.7V 200mAh Li-Battery
Storage Temp.: -40° C to +85° C
Operation Temp.: -20° C to +70° C
5.Main features:
1. Vehicle OBD II tracker (9-40V)
2. Location based service(LBS) + GPS double real time tracking solution Monitor
3. SOS panic button
4. Geofence, movement, overspeed alarms. Low battery, ext. Power off alarm.
5. Alarms under ARM: Shock/ACC alarms.
6. Request for OBD data by SMS: Fuel measurement fuel consumption mileage speed engine status Diagnostic Trouble Codes, etc
7. Troube and maintenance notification
8. Multi power-saving mode: Sleep by time / shock sensor deep sleep awake at specific time
9. Save GPRS traffic mode
10. Built-in memory for 16, 000 positions
11. Built-in 200 mA polymer battery
12. SMS tracking on cell phone with google map link
13. Absolute street address by SMS
14. Web server, Android IOS app
1. Specification
Content | Specification |
| DIM | 64.5×50×27mm |
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 30s
Warm status 11s
Hot status 1s |
| Backup Battery | Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
-SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen. -Get absolute address by SMS-Android IOS app tracking -Web server online tracking. Capable of monitor 10,000 objects

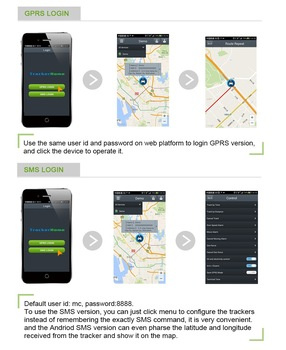

Android IOS app tracking
