| Prod Model: |
GPS306A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
GPS/GSM//GPRS Tracking System/Software |
| Work Mode: |
SMS/GPRS |
| Main Features: |
Mini Size, Report Mealiage, Fuel Consumption |
| Memoery SD Card: |
Yes |
| OEM Or Not: |
Yes |
| Warranty Time: |
12 Months |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Band: |
850/900/1800/1900MHz |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Single Frequency |
| Operating Principle: |
GSM/GPS/GPRS Network |
| Port Number: |
20 |
| Screen Size: |
No Screen |
| Chip: |
CB900 |
| Brand: |
Coban / Baanool |
| Certification: |
ISO9001 |
Product Description

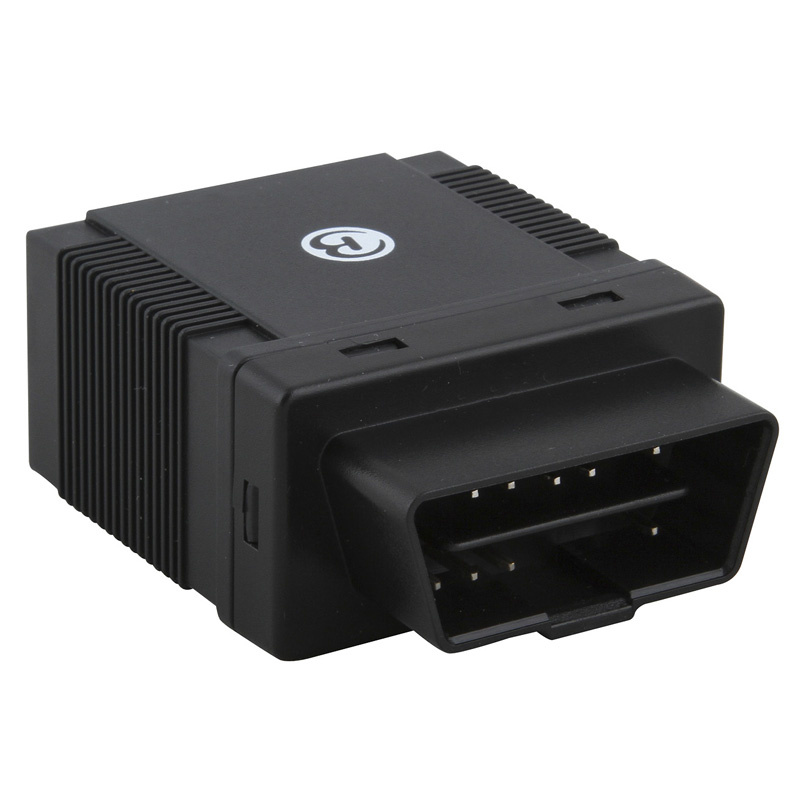

OBD GPS Tracker wtih diagnostic function obd ii tracker 306A
How does the GPS Tracker work?
GPS306 is our newly designed plug-and -play OBD tracker. It could read OBD parameters from car ECU and GPS tracking for car location; All data will betransmit to the backend server for remote diagnostic and tracking purpose.
This product is based on GSM / GPRS network and GPS satellite positioning system, built-in GSM and GPS antenna, built-in 2.4G attendance management functions. Insert into the car OBDII interface directly to read the data from car computer, you can locate and manage the vehicle remotely via SMS or GPRS. Easy to install, no wiring harness.
Content Specification
DIM: 64.5× 50× 27mm
Weight: 60g
Network: GSM/GPRS
Band: 850/900/1800/1900Mhz
GPS Sensitivity: -165dBm
GPS Accuracy: 5m
Backup Battery: Chargeable 3.7V 200mAh Li-Battery
Storage Temp.: -40° C to +85° C
Operation Temp.: -20° C to +70° C
Applying directions:
12-24V cars, vehicles, fleet management
Main features:
1. Vehicle OBD II tracker (9-40V)
2. Location based service(LBS) + GPS double real time tracking solution Monitor
3. SOS panic button
4. Geofence, movement, overspeed alarms. Low battery, ext. Power off alarm.
5. Alarms under ARM: Shock/ACC alarms.
6. Request for OBD data by SMS: Fuel measurement fuel consumption mileage speed engine status Diagnostic Trouble Codes, etc
7. Troube and maintenance notification
8. Multi power-saving mode: Sleep by time / shock sensor deep sleep awake at specific time
9. Save GPRS traffic mode
10. Built-in memory for 16, 000 positions
11. Built-in 200 mA polymer battery
12. SMS tracking on cell phone with google map link
13. Absolute street address by SMS
14. Web server, free PC tracking soft, Mobile phone APP
| Content | Specification |
| DIM | 64.5×50×27mm |
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 30s
Warm status 11s
Hot status 1s |
| Backup Battery | Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
