| Prod Model: |
GPS Tracking OBD Tracker 306 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
GPS306 OBD II GPS Tracker |
| Weight: |
60g |
| Arm Alarms: |
Acc/Shock Sensor Alarm |
| Dual GPRS Communication: |
TCP UDP |
| Warranty Time: |
12 Months |
| Backup Battery: |
Chargeable 3.7V 200mAh Battery |
| Tracking Solutions: |
SMS, GPRS Web Platform, Android Ios APP |
| Exact Street Address: |
by SMS |
| Request For OBD Data By SMS: |
Mileage, Remaining Fuel, Diagnostic Trouble Code |
| Operating Principle: |
GPS Get Position, GSM Transmit Data |
Product Description
OBD II Car GPS tracking system with diagnostic mobile applicationModel GPS3061. IntroductionThis product is based on GSM / GPRS network and GPS satellite positioning system, built-in GSM and GPS antenna,built-in 2.4G attendance management functions. Insert into the car OBDII interface directly to read the data from car computer,you can locate and manage the vehicle remotely via SMS or GPRS. Easy to intall,no wiring harness.
2. Applications12-24V cars , vehicles , trucks , fleet management
3. How does the GPS Tracker work?GPS306 is our newly designed plug-and -play OBD tracker. It could read OBD parameters from car ECU and GPS tracking for car location; All data will be transmit to the backend server for remote diagnostic and tracking purpose.
4.Content SpecificationDIM: 64.5× 50× 27mm
Weight: 60g
Network: GSM/GPRS
Band: 850/900/1800/1900Mhz
GPS Sensitivity: -165dBm
GPS Accuracy: 5m
Backup Battery: Chargeable 3.7V 200mAh Li-Battery
Storage Temp.: -40° C to +85° C
Operation Temp.: -20° C to +70° C
5.Main features:1. Vehicle OBD II tracker (9-40V)
2. Location based service(LBS) + GPS double real time tracking solution Monitor
3. SOS panic button
4. Geofence, movement, overspeed alarms. Low battery, ext. Power off alarm.
5. Alarms under ARM: Shock/ACC alarms.
6. Request for OBD data by SMS: Fuel measurement fuel consumption mileage speed engine status Diagnostic Trouble Codes, etc
7. Troube and maintenance notification
8. Multi power-saving mode: Sleep by time / shock sensor deep sleep awake at specific time
9. Save GPRS traffic mode
10. Built-in memory for 16, 000 positions
11. Built-in 200 mA polymer battery
12. SMS tracking on cell phone with google map link
13. Absolute street address by SMS
14. Web server, Android IOS app
6.Specification
Content | Specification |
| DIM | 64.5×50×27mm |
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 30s
Warm status 11s
Hot status 1s |
| Backup Battery | Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
FAQ
- QWhat is the MOQ ?
- A500pcs for our own available designs
- QCan I mix different designs?
- Ano!
- QCan I get a lower price if I order large quantities?
- AYes, cheaper prices with more bigger size orders.
- QCan I add or delete items from my order if I change my mind ?
- AYes, but before shipment.
- Q
Can I get the pre-production sample ?
- AYes, For OEM order, it is ok to send samples for confirmation before mass prouction.
- QWhen you ship my order?
- ANormally 3-5days after receiving your payment, but it can be negotiated based on order qty and production schedule.
- QHow about the quality guarantee period?
- AOne year!
- QHow can you guarantee the production quality ?
- AOur production quality follow ISO9001 and We have 17 years experience of QC team. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.

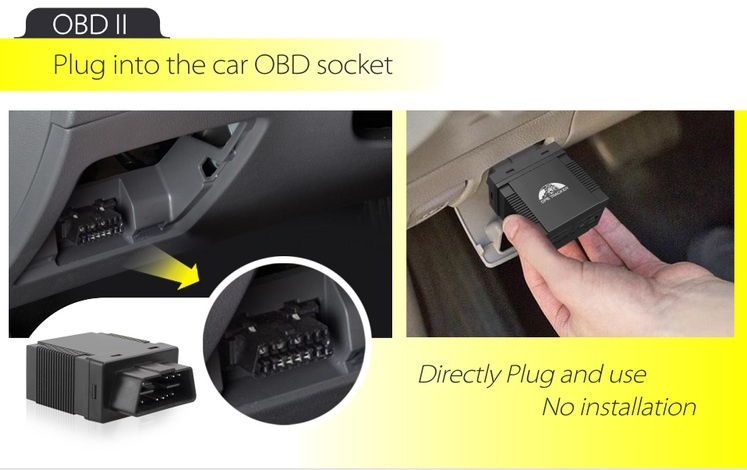

7. OBD GPS TRACKER installation
OBD GPS Tracker 306 certification : CE FCC Track by multiple tracking Four ways:
1. SMS tracking by calling with latitude and longitude, speed, battery status, Google map link
2. Get absolute street address by SMS
3. Optional web server www.gpstrackerxy.com( user id demo,password 8888)
4.Optional Android IOS APP
