| Prod Model: |
TK228-WL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Voltage: |
+6.0 ~+45VDC/1.5A |
| Backup Battery: |
Rechargeable 3.7V 200mAh Li-ion Battery |
| Dimension (Main Unit): |
54.0*51.5*28.5(mm) |
| Weight (Main Unit): |
73G |
| GSM Frequency: |
Quad-Band: 850MHz/900MHz/1800MHz/1900MHz |
| GPS Chipset: |
U-Blox7 Chipset |
| GPS Sensibility: |
-162dBm |
| Working Frequencies: |
1575.42MHz C/a(GPS) |
| Positioning Accuracy: |
≤10m (Wide-Open Area) |
| Speed Accuracy: |
≤0.1m/S (Wide-Open Area) |
Product Description

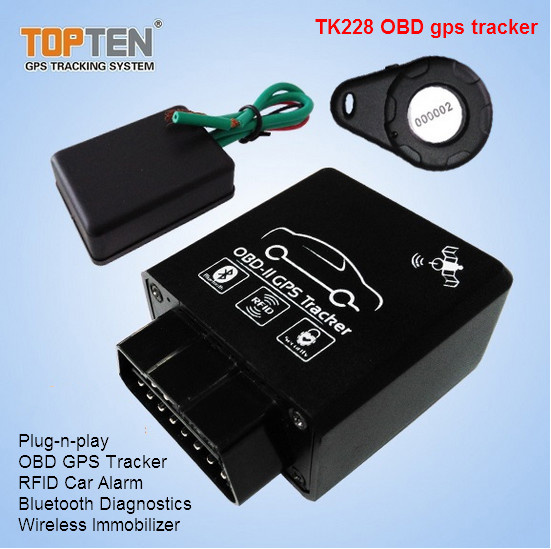

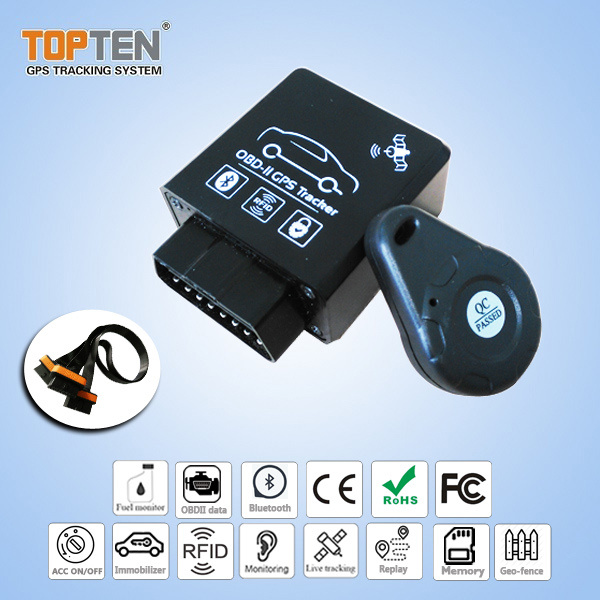

OBD II GPS tracking with Bluetooth Diagnostic and wireless Anti Jummer(TK228-WL)
TK228 is plug and play design, it is the integration of GPS tracker + RFID Car alarm + Bluetooth Diagnostics+ Wireless Immobilizer. Easy Setup,stable for usage. update with bluetooth function. Simple real time trace.
Selling Point
1. 2.4G long-distance contactless RFID tag for driver ID identification
2. Keyless RFID car alarm function, arm/disarm automatically
3. Wireless immobilizer to stop the car in safe mode
4. High reliable anti-tamper design. Auto lock the engine automatically
5. Remote diagnostics function. Transmission of the CANBUS data via blue-tooth or GPRS network
6. Read the vehicle's error code & clear the error code via GPRS or blue-tooth
Details Features & Fucntions

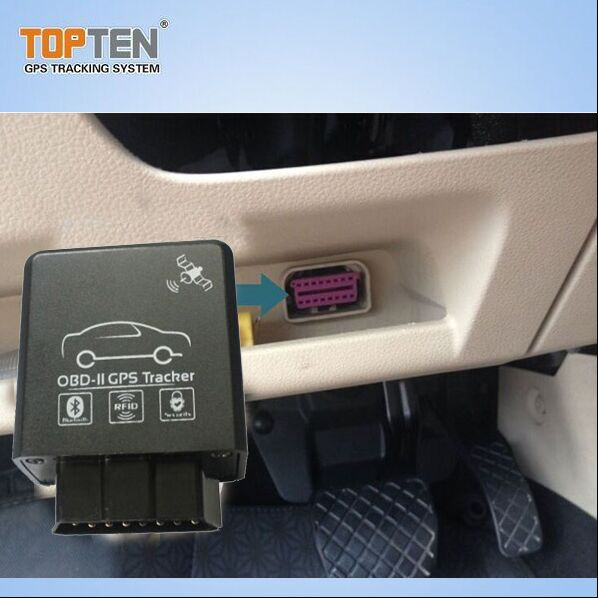

1. Plug & play design with OBD-II connector, compatible with all the vehicles with OBD-II connector, supports most of vehicles with the CAN-BUS

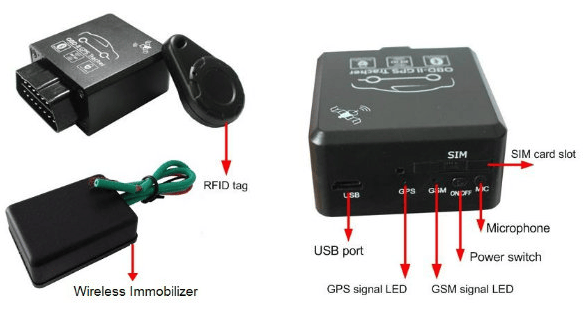

2. It is the integration of GPS tracker + RFID car alarm + Bluetooth diagnostics+ Wireless immobilizer
3. Arm/disarm by SMS/phone call, or by 2.4G RFID tag automatically
4. Check the real physical address (such as city name, street name.) directly
5. Track by SMS/website to get the latitude, longitude, speed, direction & odometer etc.
6. Movement alarm, Over-speed alarm, Geo-fence alarm
7. Engine on alarm, power failure alarm, vibration alarm
8. Anti-tamper alarm. Once the device is disconnected, it will trigger the alarm
9. Built-in shock sensor for power saving & triggering vibration alarm
10. Monitor the voice
11. 2.4G long-distance contactless RFID tag for driver ID identification
12. Keyless RFID car alarm function, arm/disarm automatically
13. Accurate odometer & speed reading directly via CAN-BUS
14. Data logger 4Mb for offline GPS waypoint
15. Wireless immobilizer to stop the car in safe mode
16. High reliable anti-tamper design. If the unit is unplug illegally, it will lock the engine automatically
17. Built-in rechargeable backup battery; when the car battery is cut off or damaged, the built-in backup battery can work for emergency check, and the system will send out power failure alert immediately
18. Two kinds of location information: GPS coordinates & GSM base station code
19. Remote diagnostics function. Transmission of the CAN data via blue-tooth or GPRS network: (1) Vehicle's real-time data: battery's voltage, RPM, speed, TAP throttle opening, engine load, coolant temperature, fuel consumption, odometer, error code & times, acceleration times & deceleration times; (2) Driver behavior data: ignition time, total driving time, total idling time, average engine hot-start time, average speed, history high speed, history RPM, total acceleration times & total deceleration times
20. Read the vehicle's error code & clear the error code via GPRS or blue-tooth;
| Working voltage: | +6.0 ~+45VDC/1.5A |
| Backup battery: | Rechargeable 3.7V 200mAh Li-ion battery |
| Dimension (main unit): | 54.0*51.5*28.5(mm) |
| GSM frequency: | Quad-band: 850MHz/900MHz/1800MHz/1900MHz |
| GPS chipset: | U-blox7 chipset |
| Working temperature: | -20 ~ 85ºC |
| Humidity: | 0 ~ 95% |
| GPS receiving channel: | 56 channels |
| Working frequencies: | 1575.42Mhz C/A(GPS) |
| Weight (main unit): | 73g |
