| Prod Model: |
306 OBD tracker |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturer Or Not: |
Yes |
| OEM Or Not: |
Yes |
| Delivery Time: |
2-3 Business Days |
| Packaging: |
40 Unit /Carton in Standard Color Box |
| Shipment: |
by Express or by Air |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Model: |
306 OBD Tracker |
| Screen Size: |
No Screen |
| Certification: |
CE FCC |
Product Description

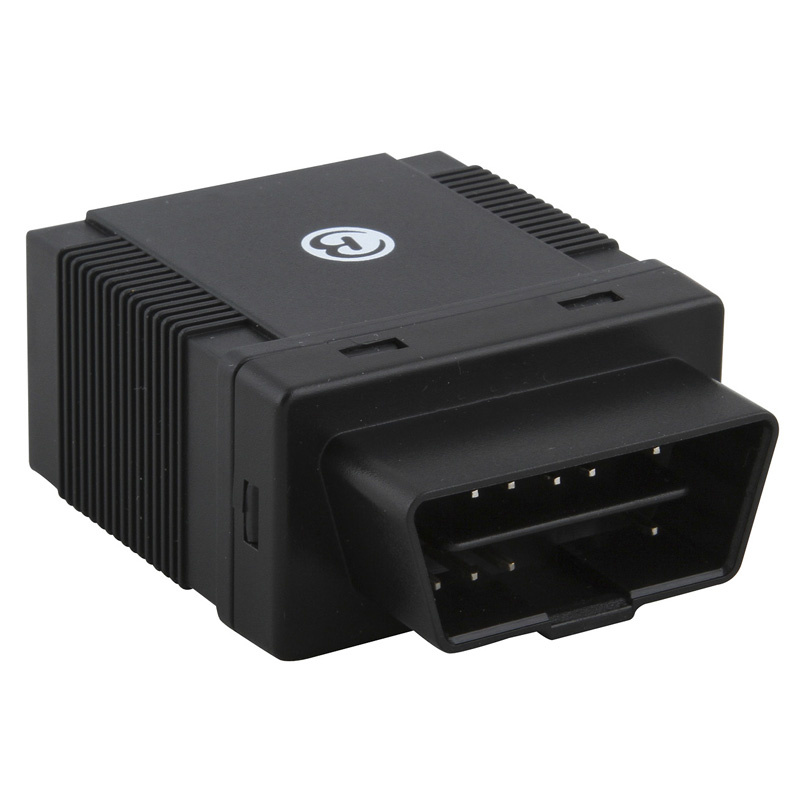

Baanool /Coban OBD ii car GPS tracker gps306 with SOS ,internal GSM/GPS antenna gps tracker real time track by APP support fuel leve monitor
Function of gps tracker:
SIM CARD Installation Plug into the car OBD socket GSM/GPS LED Indicator
Initialization Change Password Authorization Configure how OBD data to be sent to Server Center Set mileage Set Fuel tank volume
Notification of Vehicle fault Vehicle maintenance notification Single Locating
Track with limited times upon time interval
Track with unlimited times upon time interval
Smart track upon time and distance interval
Automatic update positions of vehicle turns
GPS drift suppression Location based service (LBS) / Cell-ID locating Exact street address by SMS Voice Monitor Data logging Data Load Alarm
Functions:
Low Battery Alarm External Power off alarm GPS blind Spot alert SOS Geo-fence
Multi-area management Movement alarm
Over speed alarm
Alarms under Arm State
Shock sensor alarm
ACC alarm
Request for OBD data by SMS--Send Obdmsg+password to gps device,it will return below vehicle info .as following
ODO: Accumulative mileage
FLI: Remaining fuel
AF: Average Fuel
Dtime: Driving time
speed: Speed
Pload: Power load
TEMP: Water temperature
ATP: Throttle percentage
RPM: Engine speed
BAT: battery voltage
DTC: diagnostic trouble code
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.baanool.net
E >: IOS and Android APP
Web based online tracking system www.baanool.net user id: demo, password:8888
Content | Specification |
| DIM | 64.5×50×27mm |
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 30s
Warm status 11s
Hot status 1s |
| Backup Battery | Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
1.1. OBD compatibility
1.1.1. Protocol compatibility
The product supports existing OBD protocol:
l SAE J1850 PWM
l SAE J1850 VPW
l ISO 9141-2
l ISO 14230-4 (KWP2000_5BPS)
l ISO 14230-4 (KWP2000_FAST)
l ISO 15765-4 (CAN500_11BIT)
l ISO 15765-4 (CAN500_29BIT)
l ISO 15765-4 (CAN250_11BIT)
l ISO 15765-4 (CAN250_29BIT)
1.1.2. Vehicle Compatibility
Applies to all vehicles which are compatible with OBDII (Including, but not limited to the following models)
l US-produced gasoline vehicles are sold after 1996; all Chinese domestic car are sold after 2003;
l European gasoline vehicles are sold after 2001 or are produced after 2000; Diesel vehicles are sold after 2004 or are produced after 2003.
Support vehicle models:
| No. | Model | No. | Model | No. | Model | No. | No. |
| 1 | Mercedes-Benz | 2 | BMW | 3 | Audi | 4 | Land Rover |
| 5 | Buick | 6 | Chevrolet | 7 | Ford | 8 | Honda |
| 9 | TOYOTA | 10 | Volkswagen | 11 | Hyundai | 12 | SSANG YONG |
| 13 | Citroen | 14 | Mazda | 15 | subaru | 16 | Roewe |
| 17 | Peugeot | 18 | Chery | 19 | Cadillac | 20 | JINBEI |
| 21 | Haima | 22 | Kia | 23 | BYD | 24 | SKODA |
| 25 | FAW | 26 | Nissan | 27 | Geely | 28 | JMC |
| 29 | Dongfeng | 30 | MITSUBISHI | 31 | Porsche | 32 | Suzuki |
| 33 | Soueast | 34 | Isuzu | 35 | Acura | 36 | |
