| Prod Model: |
TK306 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Quad Band: |
850/900/1800/1900MHz |
| Function: |
GPS Tracker for Vehicle |
| OBD: |
Accumulative Mileage/Remaining |
| Warranty: |
12 Months |
| Dim: |
64.5*50*27mm |
| Weight: |
60g |
| Coban Manufacturer: |
Yes |
| CE, FCC: |
Yes |
| GPS Module: |
Ns1315 |
| GSM Module: |
CB900 |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Integration Type |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Screen Size: |
No Screen |
| Brand: |
Baanool |
| Certification: |
ISO9100 |
Product Description

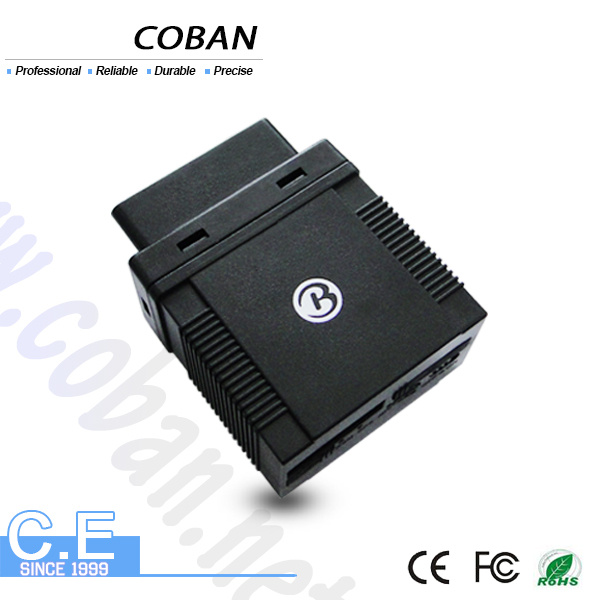

OBD GPS tracker, OBD II GPS tracker
Working Based on existing GSM/GPRS network (850/900/1800/1900MHz) and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.
1. Vehicle OBD II tracker (9-40V)
2. Location based service(LBS) + GPS double real time tracking solution Monitor
3. SOS panic button
4. Geofence, movement, overspeed alarms. Low battery, ext. Power off alarm.
5. Alarms under ARM: Shock/ACC alarms.
6. Request for OBD data by SMS: Fuel measurement fuel consumption mileage speed engine status Diagnostic Trouble Codes, etc
7. Troube and maintenance notification
8. Multi power-saving mode: Sleep by time / shock sensor deep sleep awake at specific time
9. Save GPRS traffic mode
10. Built-in memory for 16, 000 positions
11. Built-in 200 mA polymer battery
12. SMS tracking on cell phone with google map link
13. Absolute street address by SMS
14. Web server, free PC tracking soft, Mobile phone APP
15. Mainly used for vehicle management and location tracking services
16. Built-in GSM and GPS antenna
17. Built-in 2.4G attendance management functions
Function:
1) Change Password
2) Authorization
3) Single Locating
4) Auto track continuously
5) Automatic update positions of vehicle turns
6) GPS drift suppression
7) Absolute street address by SMS
8) Location based service (LBS)
9) Voice Monitor -Data logging
10) Data Load
11) Forward the third parties' message
12) Charges Inquiry
13) mainteanance remind alert
14) Low battery alarm
15) External Power off alarm
16) GPS blind Spot alert
17) Geo-fence
18) Multi-area management
19) Movement alarm
20) Over speed alarm
21) Alarm without GSM network service
22) Check the Vehicle State
23) Reset Hardware
24) Sleep Mode
25) Sleep by time
26) Sleep by shock sensor
27) No sleep mode
28) Set up Terminal (local) Time
29) TCP / UDP Switch
30) GPRS setting
31) Setting up APN
32) GPRS User ID and password Setup
33) IP and port setup
34) Less GPRS traffic
35) Modes Switch between "SMS" and "GPRS"
36) Set up monitor center number
| Content | Specification |
| DIM | 64.5×50×27mm |
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 30s
Warm status 11s
Hot status 1s |
| Backup Battery | Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
