| Prod Model: |
tk306 OBDII GPS Tracker |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
120g |
| Feature: |
OBD, Wireless, Diagnostic Function |
| Remote Controller: |
Optional |
| Warranty Time: |
1 Year |
| Shipment: |
by Express or by Air |
| Packaging: |
40 Unit /Carton in Standard Color Box |
| Delivery Time: |
2-3 Business Days |
| Certificate: |
CE FCC ISO |
| Tracking Way: |
SMS, Web Based Platform, Phone APP |
| Apllication: |
OBD/ Obdii / OBD2 Vehicle Cars |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS, GSM, GPRS Tracking System |
| Port Number: |
20 |
| Model: |
Tk306 Obdii GPS Tracker |
| Screen Size: |
No Screen |
| Brand: |
Coban Baanool |
| Certification: |
CE FCC ISO |
Product Description
Obdii GPS Tracker for Car Vehicle Online Tracking with android IOS APP & web based server
Top Quality , Factory Price , 2 days delivery , 12 months Warranty.
Model: GPS tracker TK-306
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Main Function discription
1.Vehicle OBD II tracker (9-40V)
2.Location based service(LBS) + GPS double real time tracking solution Monitor
3.SOS panic button
4.Geofence,movement,overspeed alarms.low battery, ext.power off alarm.
5.Alarms under ARM :Shock/ACC alarms.
6. Request for OBD data by SMS--Send Obdmsg+password to gps device,it will return below
vehicle info .as following :
ODO: Accumulative mileage
FLI: Remaining fuel
AF: Average Fuel
Dtime: Driving time
speed: speed
Pload: Power load
TEMP: Water temperature
ATP: Throttle percentage
RPM: Engine speed
BAT: battery voltage
DTC: diagnostic trouble code
7.Notification of Vehicle fault nd maintenance notification
8.multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
9.Save GPRS traffic mode
10.Built-in memory for 16,000 positions
11.Built-in 200 mA polymer battery
12.SMS tracking on cell phone with google map link
13.Absolute street address by SMS
14.Web server, free PC tracking soft, Mobile phone APP
Specifications:
Content | Specification |
| DIM | 64.5×50×27mm |
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 30s
Warm status 11s
Hot status 1s |
| Backup Battery | Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
OBDII GPS tracker Technology parameter:
*Network: GSM/GPRS
*Band: 850/900/1800/1900Mhz
*GPS sensitivity: -159dBm
*GPS accuracy: 5m
*Time To First Fix:Cold status 45s, Hot status 1s

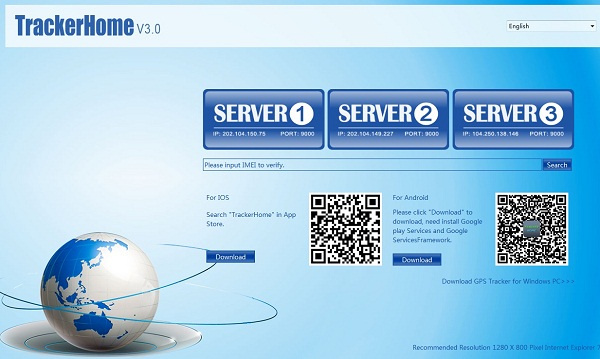

How to tracking ?
The GPS devices support phone tracking and 16 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.baanool.net
E >: IOS and Android APP
Web based online tracking system www.gpstrackerxy.com user id: demo, password:8888

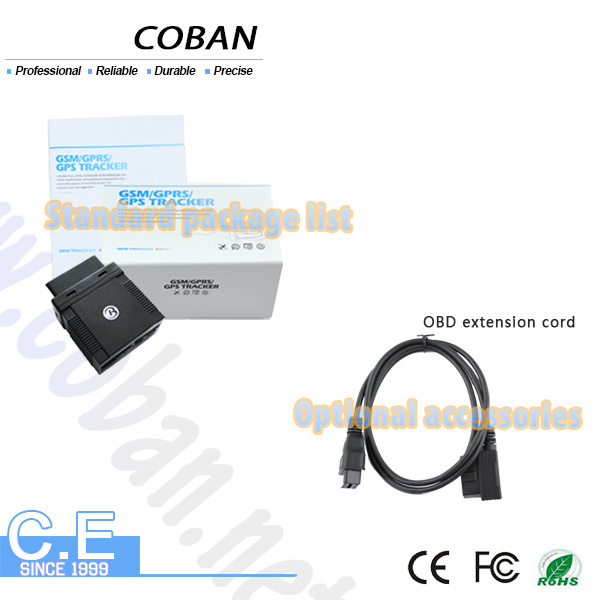

Full package :
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service 3
.Customize design in bulk order
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
