| Prod Model: |
GPS306 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Network: |
GSM/GPRS |
| Dim: |
64.5*50*27mm |
| Band: |
850/900/1800/1900MHz |
| Weight: |
60g |
| GPS Sensitivity: |
-165dBm |
| Warranty: |
1 Year |
| GPS Accuracy: |
5m |
| Factory Loation: |
Shenzhen City, China GPS Tracker Supplier |
| Certificate: |
CE FCC |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Mixed Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Model: |
GPS306A |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
ISO9001 |
Product Description
Model:GPS306A
how does the GPS Tracker work?

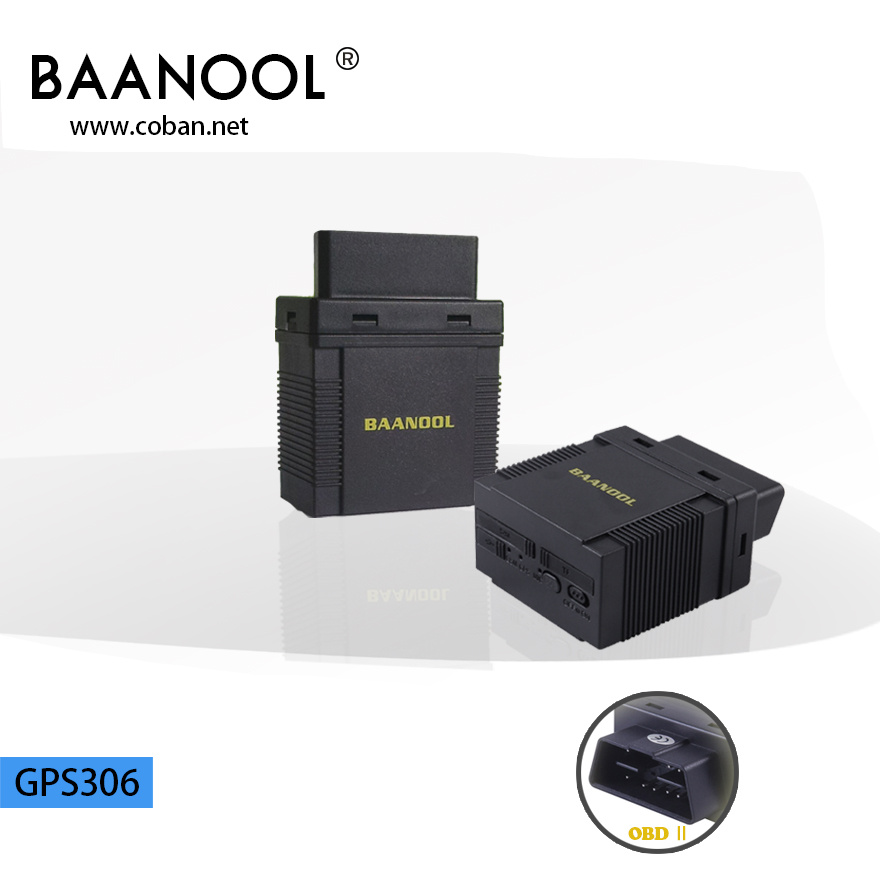

GPS306 is our newly designed plug-and -play OBD tracker. It could read OBD
parameters from car ECU and GPS tracking for car location; All data will be
transmit to the backend server for remote diagnostic and tracking purpose.
Content Specification
DIM : 64.5×50×27mm
Weight: 60g
Network: GSM/GPRS
Band: 850/900/1800/1900Mhz
GPS Sensitivity : -165dBm
GPS Accuracy: 5m
Backup Battery: Chargeable 3.7V 200mAh Li-Battery
Storage Temp.: -40°C to +85°C
Operation Temp.:-20°C to +70°C
Applying directions:
12-24V cars,vehicles,fleet management
Main features :
1.Vehicle OBD II tracker (9-40V)
2.Location based service(LBS) + GPS double real time tracking solution
Monitor
3.SOS panic button
4.Geofence,movement,overspeed alarms.low battery, ext.power off alarm.
5.Alarms under ARM :Shock/ACC alarms.
6.Request for OBD data by SMS:
ODO: Accumulative mileage
FLI: Remaining fuel
AF: Average Fuel
Dtime: Driving time
speed: Speed
Pload: Power load
TEMP: Water temperature
ATP: Throttle percentage
RPM: Engine speed
BAT: battery voltage
DTC: diagnostic trouble code
7.Troube and maintenance notification
8.multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
9.Save GPRS traffic mode
10.Built-in memory for 16,000 positions
11.Built-in 200 mA polymer battery
12.SMS tracking on cell phone with google map link
13.Absolute street address by SMS
14.Web server, free PC tracking soft, Mobile phone APP
Multiple Tracking Ways:
*Track by SMS with latitude and longitude
*Real track by SMS on PDA Cell phone with the maps link.
*Web based online tracking on PC at our server www.baanool.net
*Real time track on cell phone by APP
Content | Specification |
| DIM | 64.5×50×27mm |
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 30s
Warm status 11s
Hot status 1s |
| Backup Battery | Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
