| Prod Model: |
tk306 obd ii gps tracker |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Network: |
SMS/GPRS |
| Application: |
Vehicle Fleet/Logistics/Vehicle Rental (12-24V) |
| OEM Or Not: |
Yes |
| Manufacturer R Not: |
Yes |
| Delivery Time: |
2-3 Working Days |
| Feature: |
Plug and Play Tracker, OBD / Obdii Tracker GPS |
| Warranty Time: |
1 Year |
| Certificate: |
CE FCC ISO |
| Tracking System: |
SMS, Phone APP, Web Platform |
| Feature 2: |
Fuel Monitor, Kilometer Detecting, Diagnostic |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS GPRS GSM Tracking System |
| Port Number: |
No |
| Model: |
Tk306 OBD GPS Tracker |
| Screen Size: |
No Screen |
| Brand: |
Baanool / Coban |
| Certification: |
CE FCC ISO |
Product Description

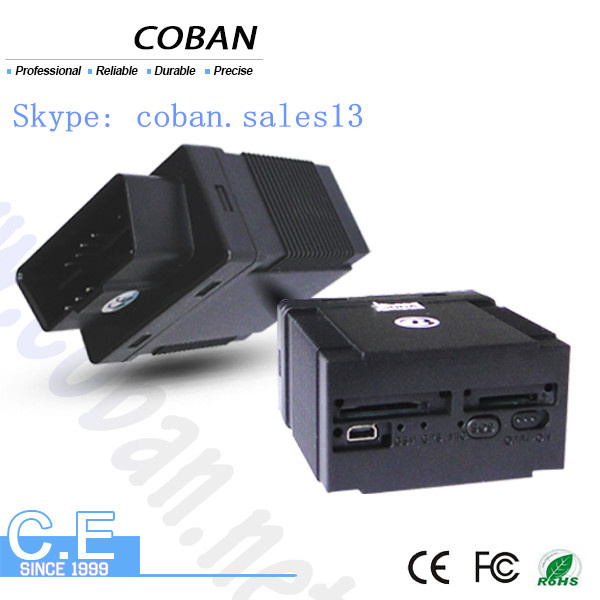

Model: GPS tracker TK-306
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This product is based on GSM / GPRS network and GPS satellite positioning system, built-in GSM and GPS antenna, built-in 2.4G attendance management functions. Insert into the car OBDII interface directly to read the data from car computer, you can locate and manage the vehicle remotely via SMS or GPRS. Easy to install, no wiring harness.
GPS306 is our newly designed plug-and -play OBD tracker. It could read OBD parameters from car ECU and GPS tracking for car location; All data will be transmit to the backend server for remote diagnostic and tracking purpose.
obd2 sim card gps tracker with diagnostic & alarm function obd2 sim card gps tracker with diagnostic & alarm function obd2 sim card gps tracker with diagnostic & alarm function obd2 sim card gps tracker with diagnostic & alarm function
2. Main Function Description
1.Vehicle OBD II tracker (9-40V)
2.Location based service(LBS) + GPS double real time tracking solution Monitor
3.SOS panic button
4.Geofence,movement,overspeed alarms.low battery, ext.power off alarm.
5.Alarms under ARM :Shock/ACC alarms.
6.Request for OBD data by SMS:
Fuel measurement
fuel consumption
mileage
speed
engine status
Diagnostic Trouble Codes,etc
7.Notification of Vehicle fault nd maintenance notification
8.multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
9.Save GPRS traffic mode
10.Built-in memory for 16,000 positions
11.Built-in 200 mA polymer battery
12.SMS tracking on cell phone with google map link
13.Absolute street address by SMS
14.Web server, free PC tracking soft, Mobile phone APP
7.How to tracking ?
The GPS devices support phone tracking and 16 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.gpstrackerxy.com
E >: IOS and Android APP
Web based online tracking system www.gpstrackerxy.com user id: demo, password:8888
| Weight | 60g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -165dBm |
| GPS Accuracy | 5m |
| GPS Start Time | Cold status 30s
Warm status 11s
Hot status 1s |
| Backup Battery | Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
