Oblique tooth precision, Helical flange plate output, Helical shaft output Gearbox

Name: Oblique tooth precision, Helical flange plate output, Helical shaft output Gearbox
Brand: all-electronics-online.com
SKU: 788547495
Availability: InStock
Rating: 4.6 (28 reviews)

Price:	US $ 20-115/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Size:	60
Reduction Ratio:	5
Flange Type:	Square Mounting Flange
Application:	Electronic
Phase:	Single
Coil:	Shell-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Separated Winding Transformer
Certification:	CCC, CE, UL. RoHS
Brand:	zd motor

Product Description

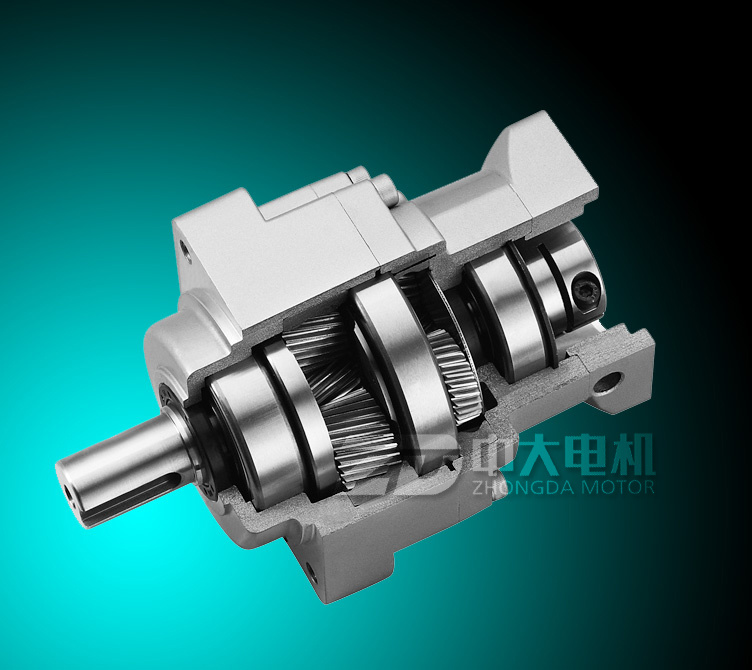

Oblique tooth precision, Helical flange plate output,Helical shaft output

High precision planetary gearbox matched with serve motor, stepping motor are widely used. Lowest backlash<3"); High output torques; High efficiency(96%); Honed toothings; 22 ratios I=3, ...., 512; Low noise(<65dB(A)); Any mounting position; Easy motor mounting; Life time lubrication; Figure diameters 40, 60, 80, 120, 160mm. More options.

Planetary gearbox:
ZDE: Precision planetary-round flange output
ZDF: Precision planetary-square flange output
ZDWE: Precise planetary-right angle round flange output
ZDWF: Precise planetary-right angle square flange output
ZDS: Precise planetary-high rigidity, low back lash

our package:

ZDE	round mounting flange
ZDWE	right angle input round mounting flange
ZDF	square mounting flange
ZDWF	right angle input square mounting flange
ZDS	high stiffness series
Gear Ratio:
single stage	3, 4, 5, 8, 10
two stages	9, 12, 15, 16, 20, 25, 32, 40, 64
three stages	60, 80, 100, 120, 160, 200, 256, 320, 512

Ningbo zhongda leader transmission equipment Co., Ltd. is specialized in mini AC gear motors. At present, our main products are: Gear motors, three phase motors, speed control motors, brake motors, damping motors, torque motors, and DC gear motors. They are widely used in machine tools, textile machinery, medical appliance, conveying machines, printing mechanism, food machinery, vending machines, packing machinery, and gumming machines.

Our tenet is: Quality as foundation, reputation first, seeking for outstanding position. With excellent equipment, advanced procedure, scientific management, and modern test method, we can provide all customers both at home and abroad with our top quality products, favorable prices and sincere service.

We welcome interested companies to inquire about our products. We are looking forward to establishing long-term business relationships together with you for mutual business success.

History of ZD motor:

March 1996, start to make motor parts;

1998 start to make Y-series AC motor;

2001 start to produce micro AC gear motor;

2005 start to customize products for customer. Meanwhile, start to produce DC gear motor;

2006 start to produce small series AC gear motor;

2007 start to produce planetary gearbox and BLDC motor;

ZD is the first draft-man of national standardin 2008;

ZD is the first draft-man of standard in 2010;

ZD developed China's first high-precision helical planetary gear reducer in 2011;

ZD developed a robot-specific reducer in 2011.

Honors:

Ningbo's well-known trademarks;

Ningbo technology innovation model.

Ningbo patent demonstration enterprise;

Ningbo innovative pilot enterprises;

Ningbo Safety Standardization enterprises;

Chinese micro motor Union;

Chinese gear Union;

Chinese Electric parts Union;

Chinese Micro motor standardized Union;

First draft-man of Chinese standard of micro motor
