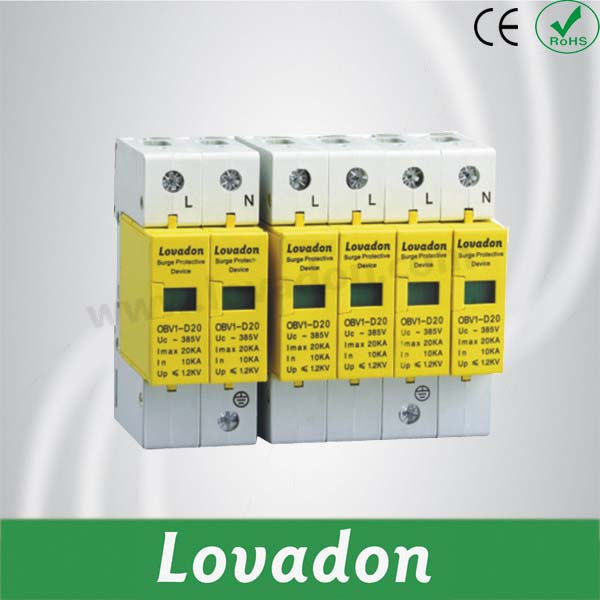

Obv1 Series Surge Protective Device

Prod Model:	OBV1-D20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	30ka
Voltage:	275V 320V 385V 440V
Rated Voltage Un:	220/380
Working Temperature  :	40~+85
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Certification:	CCC
Installation:	DIN Type
Poles Number:	1p,1p+N,2p,3p,3p+N,4p
Function:	Surge Protection for Power Line

Product Description

Model: OBV1-D
Parameter:
Fixed working voltage (Un(V~): 220V 380V 220V 380V
Most greatly continually working voltage Uc(V~): 275V 320V 385V 320V 385V
Protection level Up(V~)kv: ≤ 0.7 ≤ 1.0 ≤ 12
Nominal discharging current ln (8/20 μ S) kA: 5 10
Biggest discharging current lmax (8/20 μ S) kA: 10 20
Response time ns <25
Test basis: GB18802, IEC61643-1
Turning on wire cross-sectional area: L/N(mm2) 6
Turning on meets the grounding cross-sectional area PE(mm2): 25
Fuse or circuit breaker shaping: 10A, 16A 16A, 25A
Working conditions: -40~+85
Relative humidity (25) ≤ 95%
Installment: The 35mm standard leads the track

1.Specifications
Type		OBV1-B60	OBV1-C40	OBV1-D20
Protection class		B	C	D
Rated voltage Un	V	220/380	220/380	220/380
Max persistent voltage Uc	V	320V  385V  420V	275V  320V  385V  440V	275V  320V  385V  440V
Protection level UP	kV	<1.8/2.0/2.2	<1.2/1.5/1.8/2.0	<1.0/1.5/2.0
Standard discharge	kA	30	20	10
current (8/20 uS) In
Max discharge	kA	60	40	20
current (8/20 uS) Imax
Response time	ms	<25	<25	<25
Working temperature	C	-40~+85	-40~+85	40~+85
Enclosure material		Reinforce flame	Reinforce flame	Reinforce flame
		resistance PA66	resistance PA66	resistance PA66
Max connecting wire diameter	mm2	35 mm hard wire	35 mm hard wire	35 mm hard wire
2		35 mm multi wire	35 mm multi wire	35 mm multi wire
Max connecting wire diameter of
long distance monitor terminal	mm2	1.5 mm hard wire	1.5 mm hard wire	1.5 mm hard wire
Fuse or switch	A	32	25~32	10~16
Install DIN rail		35mm DIN rail	35mm DIN rail	35mm DIN rail

Product Description
Provides protection against Short-circuit/Overload current and function of isolation.
High breaking current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
Independent of power supply and line voltage, and free from external interference, voltage fluctuation
Application

OBV1-Dseries  is suitable for TT power supply system with AC 50/60Hz,230/400V and below. Its design based on IEC6143-1, GB18802.1 and GB50057 standard requirements, can discharge 100KA lightning over current, normally installed at incoming line of the main distribution box of buildings.
  B type lightning current SPD used for equipotential connection during lightning, installed at the LPZOA zone or junction area of LPZ1 zone, normally installed at the incoming line of low voltage main distribution board.

Selection Principle

-Modularization - can replace the protection module without electricity cutoff.
-Big current - maximum can withstand 100KA(8/20µs)
-High speed - response time less than 25ns
- Status indication - the window color shows the working status : Green ( normal ), Red (fa
