Occupancy Sensor for Car Seats and Taxi Seats

Occupancy Sensor for Car Seats and Taxi Seats
Price: US $ 10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal

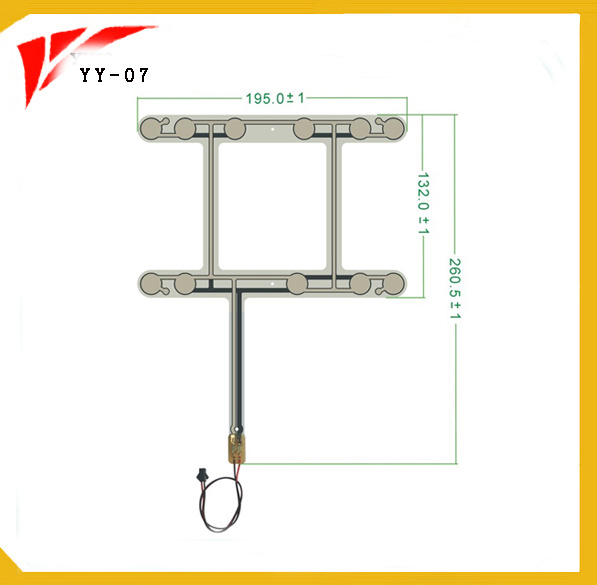

Prod Model: yy-07
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: PC
Material Surface Thickness: 0.188mm
Output Signal: Resistance
Connector: Seal Gum
Pemanence: 150000
Standard: Standard

Product Description

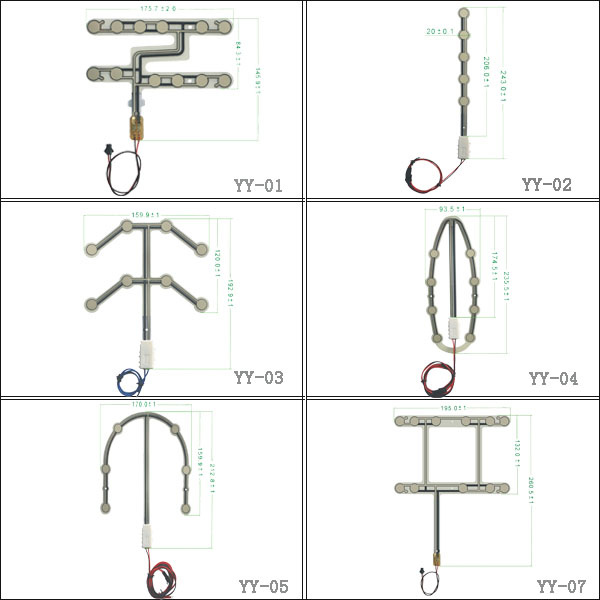

Auto seat sensor is a membrane touch point sensor and touch point was distributed uniformity on the suffer facade of seat, It is use to apperceive system of auto seat, such as safety belt alarm sensor, Taxi meter automatism.
We can design to different sensor figure and touch point sensitivity according to shape. rigidity and elasticity of car seat.

Dynamic pressure sensor
Pressure range: 0.1 N/cm2 - 100N/cm2
Output signal: resistance (R)
Thickfilm sandwich: 0.15mm - 1.0mm
Great durability: >10 million activations
Minimum active area: 5mm x 5mm
Customer specific design

Material: PC
Material surface thickness: 0.188mm
Output signal: resistance
Film thickness: 0.5-0.1mm
Bottom glue: PET 3M double-sided glue
Environment Temperature:-15ºC-80ºC
Permanence>150000 time
Pressure range single-spot test:70g 100% non-conducting
                                130g 100% conducting

Connector: seal gum
to; mso-margin-bottom-alt:auto; mso-pagination:widow-orphan; text-align:left; " >Great durability: >10 million activations
Minimum active area: 5mm x 5mm
Customer specific design
Performance Parameters Table
ParameterConditionSignNumerical ValueUnit
   MinMax
Working Voltage U working020V
Working Current I Working050mA
Non-trigger resistance valueNo loadRx=R No load10.0K Ω
Trigger resistance valueBearing bodyRx=R Trigger0100Ω
Insulation impedanceNo loadRx=R No load1020
Specification
MaterialPC
Material surface thickness0.188mm
Output SignalResistance<100Ω
Film thickness0.5+-0.1mm
Bottom gluePET 3MDouble-sided glue
Enviroment Temperature-15°C-80°C
Permanence>150000 Time
Pressure range single-spot test(Special Poise)70g 100%non-conducting
 130g 100%conducting
ConnectorSeal gum
To match as the seat
