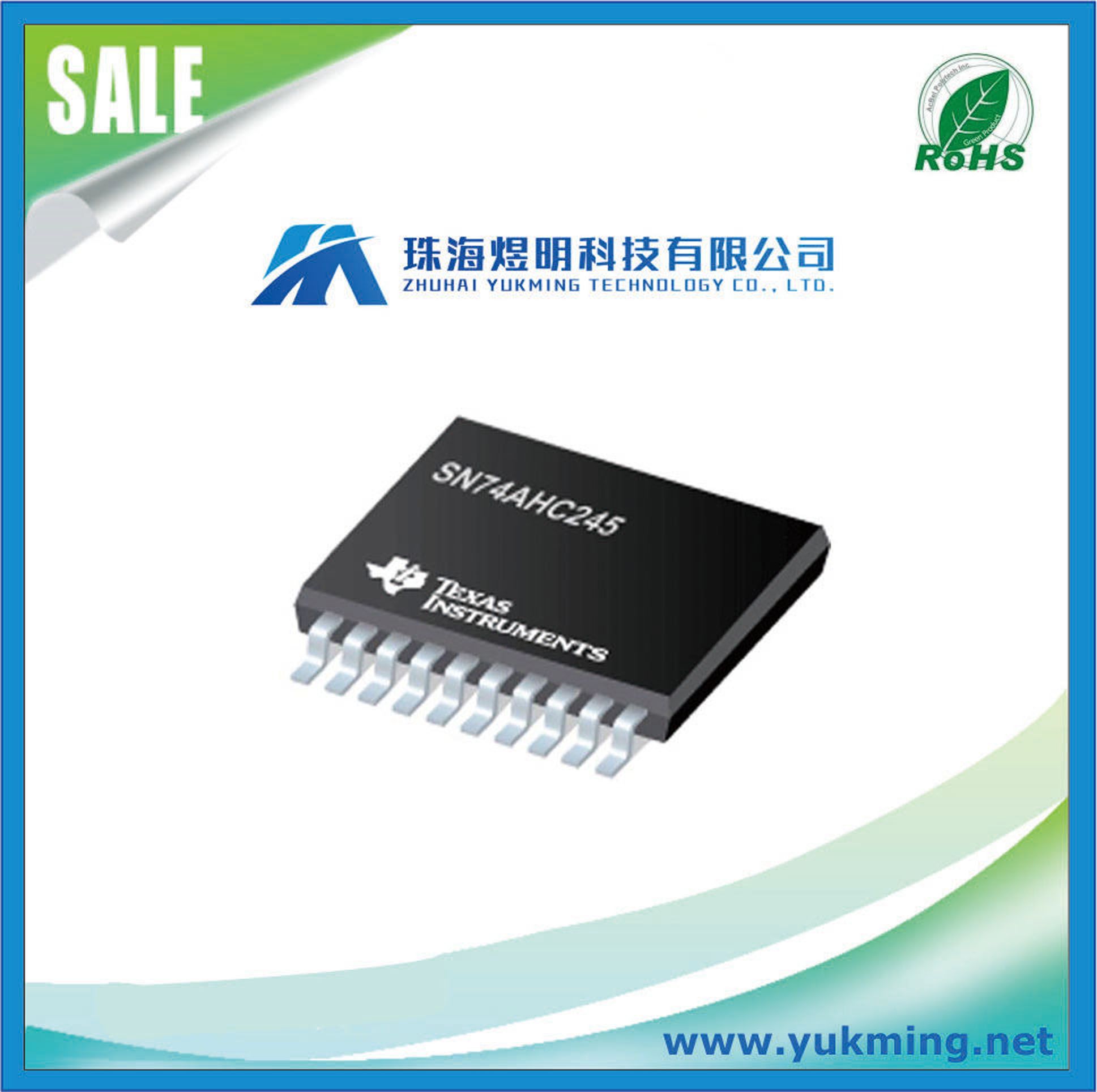

Octal Bus Transceiver IC Integrated Circuit Texas Instruments

Name: Octal Bus Transceiver IC Integrated Circuit Texas Instruments
Brand: all-electronics-online.com
SKU: 782036295
Availability: InStock
Rating: 4.7 (123 reviews)

Price:	US $ 0.1597/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SN74AHC245DW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Logic Series: Ahc:	Package in Soic20

Product Description

Manufacturer:TEXAS INSTRUMENTS

Min working temp.:-40ºC
Max working temp.:80ºC
Max low-level output current:8mA
Max high-level output current:-8 mA
Max working supply volt.:5.5V
Min working supply volt.:2V
Logic series:AHC
Package:SOIC20

MANUFACTURER
Texas Instruments

PRODUCT CATEGORY
Bus Transceiver

DESCRIPTION
Bus XCVR Single 8-CH 3-ST 20-Pin SOIC Tube

The SNx4AHC245 octal bus transceivers are designed for asynchronous two-way communication between data buses. This part operates from 4.5 V to 5.5 V.

Specifications
EU RoHS Compliant
Logic Family AHC
Logic Function Bus Transceiver
Data Flow Direction Bi-Directional
Number of Elements per Chip 1
Polarity Non-Inverting
Fabrication Technology CMOS
Output Type 3-State
Tolerant I/Os (V) 5 Inputs
Number of Channels per Chip 8
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Packaging Tube
Minimum Operating Supply Voltage (V) 2
Maximum Operating Supply Voltage (V) 5.5
Typical Operating Supply Voltage (V) 2.5|3.3|5
Absolute Propagation Delay Time (ns) 19
Input Level CMOS
Output Level CMOS
Temperature Grade Automotive
Mounting Surface Mount

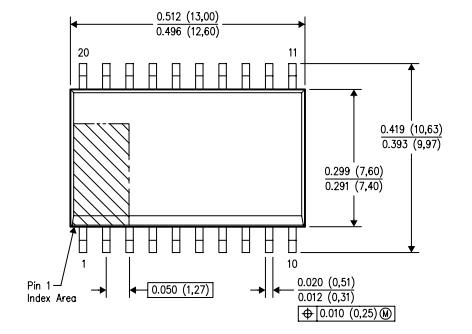

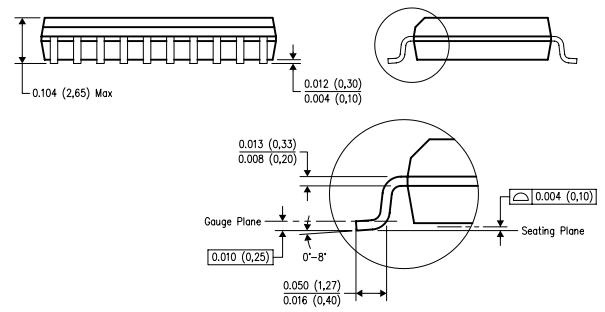

Package Height (mm) 2.35(Max)
Package Length (mm) 13(Max)
Package Width (mm) 7.6(Max)
PCB changed 20
Standard Package Name SOP
Supplier Package SOIC
Pin Count 20
Lead Shape Gull-wing
