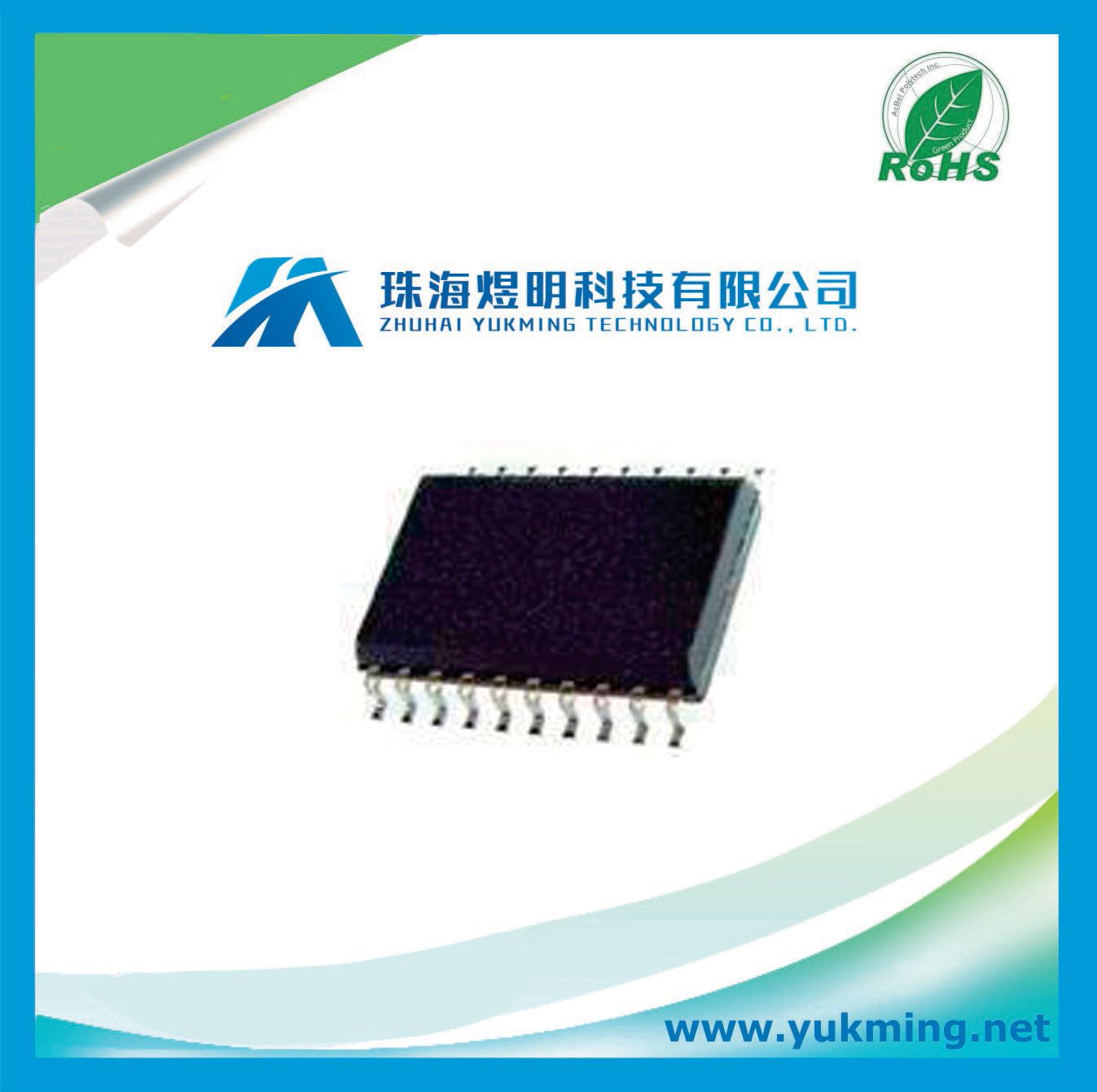

Octal Transceiver IC 74hc245D Integrated Circuit

Name: Octal Transceiver IC 74hc245D Integrated Circuit
Brand: all-electronics-online.com
SKU: 801990435
Availability: InStock
Rating: 4.6 (123 reviews)

Price:	US $ 0.15/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	74HC245D
Category:	Octal Transceiver
Logic Type:	CMOS
Logic Series:	74hc
Supply Voltage:	2~6V
Operation Temperature Range:	-40~125
Max Power Dissipation:	500 MW

Product Description

Description
The 74HC245; 74HCT245 is a high-speed Si-gate CMOS device and is pin compatible with Low-Power Schottky TTL (LSTTL). The 74HC245; 74HCT245 is an octal transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions. The 74HC245; 74HCT245 features an output enable input (OE) for easy cascading and a send/receive input (DIR) for direction control. OE controls the outputs so that the buses are effectively isolated. The 74HC245; 74HCT245 is similar to the 74HC640; 74HCT640 but has true (non-inverting) outputs.

Features
Octal bidirectional bus interface
Non-inverting 3-state outputs
Multiple package options
Complies with JEDEC standard no. 7A
ESD protection:
HBM EIA/JESD22-A114-B exceeds 2000 V
MM EIA/JESD22-A115-A exceeds 200 V
Specified from −40 °C to +85 °C and from −40 °C to +125 °C

Zhuhai Yukming Technology Co., Ltd. is mainly engaged in R&D and marketing of car radar and camera system for blind spot, with a team made up of professional vehicle electronics experts and excellent management talents we have established good market network and service system now.

In the meantime, we can supply with original ICs and other electronic components including diodes, LEDs, capacitor, especially electrolytic capacitors, connectors, inductors, relays etc.

We take scientific and technological innovation as the forerunner, integrity management and long-term cooperation as development criterion, build credibility with quality to serve the global CM, OEM, ODM and EMS, this is our consistent pursuit.

All of you are welcomed to visit us and give instructions, so that we can develop and make the progress hand in hand.

Following "Quality First, Service Oriented", Yukming is here for you!
