Odc 4 Cores Waterproof Fiber Optic Patch Cord

Name: Odc 4 Cores Waterproof Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 807134165
Availability: InStock
Rating: 4.3 (84 reviews)

Price:	US $ 19.8/Piece
Min Order:	10/Piece
Pay Type:	T/T,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	TK-H0031
Warranty:	1-3 Years
Color:	Black or Customized
Delivery Time:	3-7 Days
Sample:	Available
MOQ:	1PCS
Insertion Loss:	Less Than 30dB
Return Loss:	More Than 50dB
Operation Temperture:	-40 to 70 Cetigrade
Application:	Sensor
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

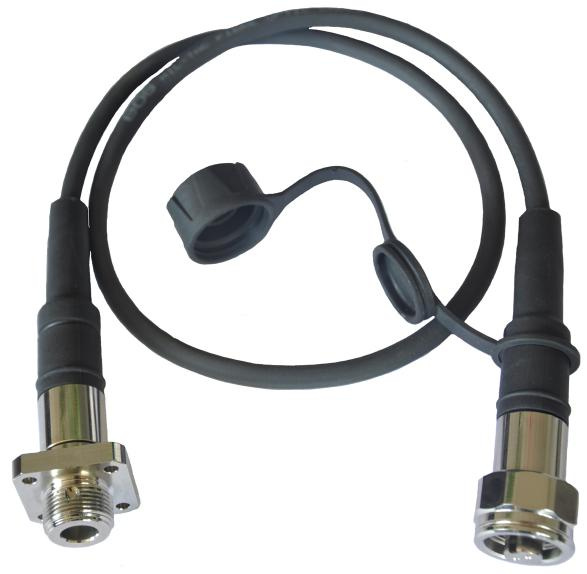

ODC 4 cores waterproof Fiber Optic Patch Cord

Description:

The ODC Fiber Optic Patch Cord, are becoming the standard interface specified in 3G, 4G and Wimax Bae Station remote redios and Fiber-to-the-Antenna applications.
The ODC cable assembly is based on the N Type RF coas connector. However, the product is not limited to the above applications. The ODC cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP67.
They are well suited for Industrial and Aerospace and Defense applications.

Features:
1. Compact design with 2x1.25mm ferrule
2. Wide range of cables to be used, 5-7mm OD cable with duplex 2.0mm to 3.0mm jacketed subunits
3. 4 cores, Singlemode and Multimode
4 . Fulfills performance Standard IEC61753-1 Cat.E
5. Simple assembly requiring no special tools
6. Screwed locking mechanism
7. Water proof, dust proof and corrostion resistant, protection caps

Application:
1. FTTA and FTTH
2. Oil & Ga, Broadcast & Industrial

Technical Parameter:

Type	Type	Parameter
Insertion Loss	SM	≤0.30dB
	MM	≤0.30dB
Return Loss	SM	≥50dB
	MM	≥35dB
Repetition Test	Additional Loss≤0.1dB, Reture Loss Variability<5dB
Temperature Stability(-40ºC~85ºC)	Additional Loss≤0.2dB, Reture Loss Variability<5dB
Free fall resistance	500 falls onto concrete from 1.2M height
Bump resistance	4000 bumps @ 40g acceleration
Tensile Strength	Tensile of 1000N, cable dependent
Operating temperature	-40 to +70°C
Storage temperature	-40 to +70°C

Takfly Exhibition:

Thank you for refer our products, should any question please feel free to contact me.

Takfly looking forward to hearing from you!

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
