Odlc-LC/Upc Duplex Waterproof Outdoor Optic/Optical Fiber Patch Cord for Ftta/Rru
| Price: |
US $ 1-6/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
outdoor Optical Fiber Patch Cord |
| Jacket Materials: |
LSZH/Ofnr/PVC/PE |
| Outer Diameter Of Fiber Cable: |
4.8mm-7.0mm |
| Ferrule Materials: |
Ceramic |
| Cable Assemblies: |
Pigtail/Simplex/Duplex/Fan-out Patch Cord |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Odlc-LC/Upc Patch Cord |
| Sheath Material: |
LSZH |
Product Description

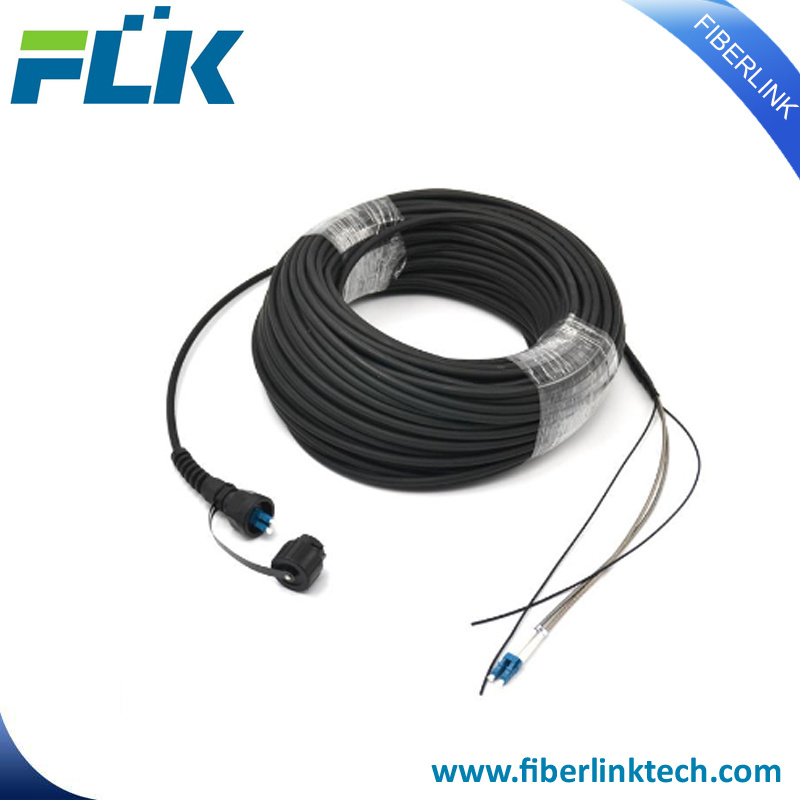

ODLC-LC/UPC Duplex Waterproof Outdoor Optic/Optical Fiber Patch Cord For FTTA/RRU
PDLC Waterproof Protected Cable
PDLC Optical Cable Assembly Waterproof Outdoor Protected Cable is standard size for Duplex LC Connectors, and the outer housing with metal protective device. Also they meet with the functions of waterproof, dustproof. This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition.The PDLC Waterproof patch cord used for outdoor RRU transmitting optical signal and remote fiber feeder etc.
Features:
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
P67 protection, salt-mist proof, humidity proof,dust proof
Aluminum housing, compact design
Broad temperature range and wide range of indoor and outdoor cables
Easy Operation, reliable and cost-effective Installation
Low insertion/return loss, steady optical transmitting.
Applications:
Telecommunication networks
CATV, LAN, MAN, WAN, Test &Measurement
Optical access network,Used for 3G 4G base station
Fiber optic communication networks
BBU, RRU, RRH, LTE,FTTH,FTTA
7.0mm fiber cable:
| Item | Data |
fiber | Single mode G.657A2 |
Fiber diameter | 7.0mm |
Material & color for jacket | LSZH black |
Tension member | Aramid fiber |
Max. attenuation | 0.4dB/km at 1310nm
0.3dB/km at 1550nm |
Tensile resistance(short term) | 500N(no breakage) |
Crush resistance(short term/long term) | 1000N/100mm |
inflaming retarding | IEC 60332-3 |
Temperature | -40~+70C |
Uvioresistant | PASS |
Authentication | Meet with RoHS &UL |
LC Connectors:
|
Item | Data |
Connector | LC, DLC, (PC/APC) |
Insertion Loss | 0.3dB (PC/APC) |
Return Loss | PC45dB, APC 60dB |
Operating temperature | -10C~+50C |
Working temperature | -40C~+70C |
Mechanical life | 500cycles |
Related products
Our fiber patch cord production line:

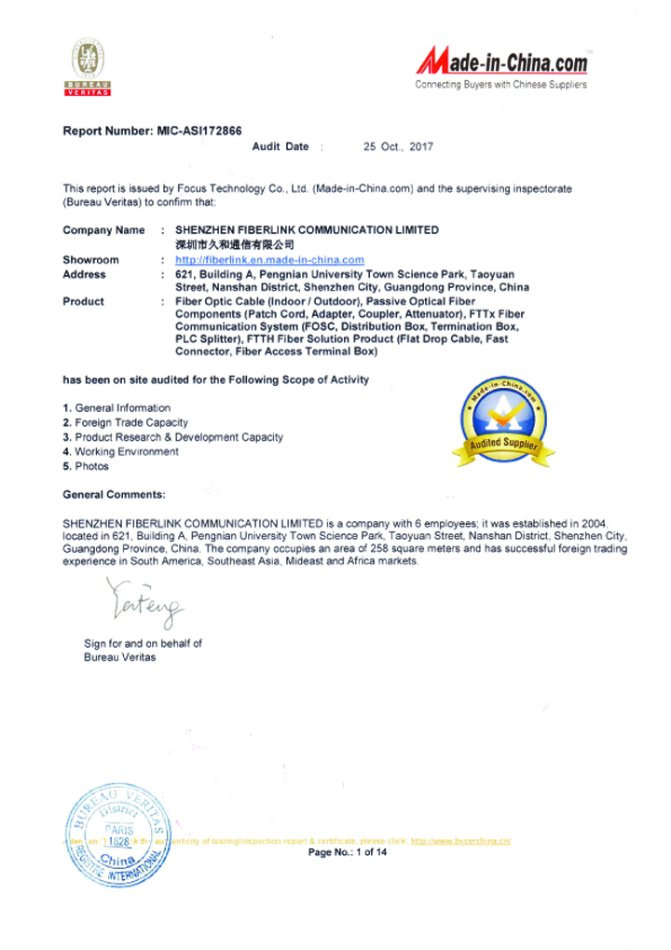

Certifications
