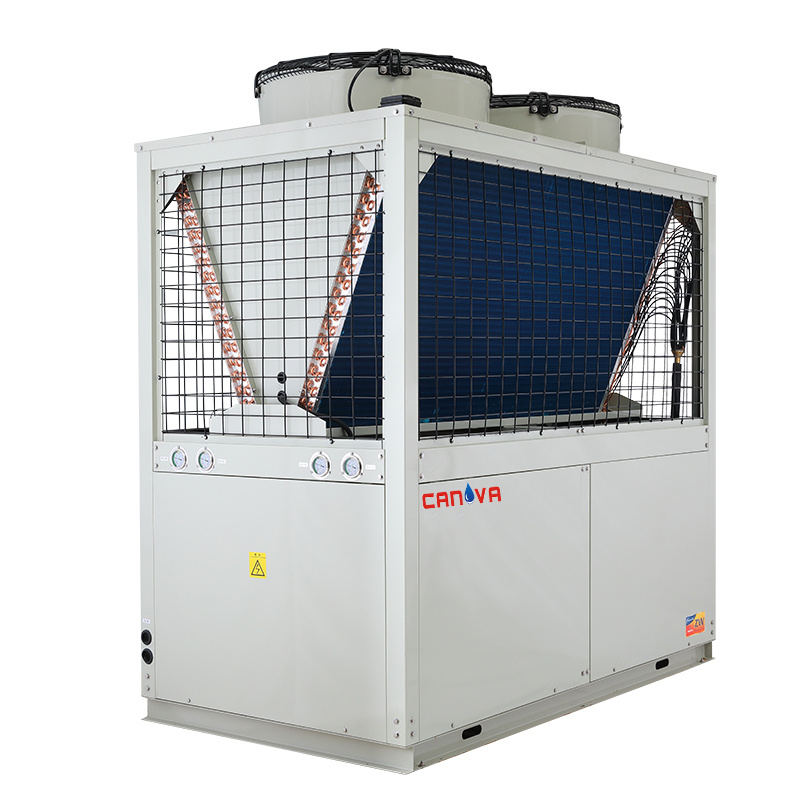

ODM Air Water Heater Pump Fast Heating
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
KFS55-N-JR |
| Heating Capacity: |
54.4 |
| Cop: |
4.69 |
| Power Supply: |
380~415V/50Hz |
| Compressor: |
Scroll |
| Fan Discharging: |
Vertical |
| Refrigeration: |
R22/R407c |
| Ambinet Temp: |
-7c~43c |
Product Description
ODM air water heater pump fast heatingCold water flowing through the heat pump water heater units only within the heat exchanger can be up to 55~60ºC,once the water temperature is set in controller. It can provide heating and hot water for commercial places where need much hot water and heating, such as hotel, factory, school, hospital, military, villa, village etc. | Model | | KFS55-N-JR | KFS70-N-JR | KFS35-N-JR | KFS45-N-JR | KFS90-N-JR |
| Heating capacity | Kw | 54.4 | 69.8 | 36.3 | 43.7 | 87.4 |
| COP | | 4.69 | 4.58 | 4.65 | 4.62 | 4.64 |
| Rated heated water output | L/h | 1170 | 1500 | 780 | 940 | 1882 |
| Rated outlet water temp | ºC | 55 |
| Max outlet water temp | ºC | 60 |
| Rated power input | Kw | 11.60 | 15.23 | 7.8 | 9.45 | 18.85 |
| Rated current | A | 22.03 | 28.92 | 14.81 | 17.94 | 35.8 |
| Power supply | V/Hz | 380~415/50 |
| Compressor type | | Scroll |
| Number of compressor | | 2 | 2 | 2 | 2 | 2 |
| Heat exchanger type | | High efficiency tube in shell heat exchanger |
| Throttling device | | Emerson thermal expansion valve |
| Fan type | | Low noise high efficiency axial type |
| Fan discharging | | Vertical |
| Fan quantity | | 2 | 2 | 2 | 2 | 2 |
| Fan input | w | 550 | 750 | 250 | 250 | 750 |
| Fan speed | RPM | 910 | 940 | 850 | 850 | 940 |
| Ambient temperature | ºC | -7~43 |
| Refrigerant | | R22/R407C |
| Noise | dB(A) | 66 | 68 | 63 | 63 | 68 |
| Water pipe size | inch | Rc2 | Rc2-1/2 | R1-1/2 | Rc1-1/2 | Rc2-1/2 |
| Cabinet | | Stainless steel/Galvanized powder coated steel |
| Low pressure protection system | | Yes |
| High pressure protection system | | Yes |
| Water flow switch | | No |
| Automatic defrosting system | | Yes |
| Product Dimension | mm | 1445/850/1850 | 1990/980/2045 | 1450/705/1375 | 1450/705/1375 | 1990/980/2045 |
| Net weight | Kg | 380 | 550 | 276 | 305 | 586 |
| Testing condition: | Heating:Ambient temp(DB/WB):20/15ºC,Water temp(input/output):15ºC/75ºC |
Features- Heating capacity Ranged from 11.2~87.4 kW
- Copeland scroll compressors, American tube in shell high efficiency heat exchanger.
- Emerson ALCO expansion valve, with accurate and stable throttling function
- High efficiency coaxial coil tube in shell heat exchanger, low fouling, low maintenance cost
- Good sealed control box with water proof level IPX4.
- Special modular system design. Big units separated in 2 systems with separate compressors
- Save running cost as high as 60%~80% compared with oil boiler, gas boiler, boiler, electric water heater etc
- Accurate casing for the fan shroud, with strictly equal distance between the fan blades and the fan shroud edge, thus largely reducing vibration and noise
Other Product
About delivery&Payment
About Company
JOYEAR a professional heat pump manufacturer based in Guangzhou, with a total manufacturing base area of more than 20, 000, with over decades of experience in the HAVC industry. The brand name "CANOVA" has became one of the leading export brand of quality heating, cooling&hot water system. Our main products include hear pump, commercial air conditioner and thermal equipment, and well experience in energy-saving products. We have developed whole series of heating system equipment&energy-saving products with 4 series and more than 200 kinds of products in the past years. Our product range is as below:
Air to water heat pump
Water to water heat pump
Swimming pool heat pump
Commercial air conditioner
Besides Chinese market, export business is our main business. So most of our products are coming with international standard, some of our products have obtained international certificate, such as CE, RoHS, SAA certificate and ERP label. The factory is certified with ISO9001: 2008 Internaltional Quality System, ISO14001 International Environmental Management System. We are always insist on the principle of quality first, customer first and focus on high-quality, competitive costs& fast service. So our products have entered into more than 60 countries with either brand name CANOVA and OEM brand.
We are always on the look-out to built strategic partnership in overseas markets and welcome opportunities where we can work in tandem with you and succeed together. OEM&ODM enquiries are welcome.
Looking towards the future, CANOVA will build a fresh and quiet living environment and comfortable life for you.
