OEM 15kv 1000A High-Voltage Electric Disconnect Switch/ Isolating Switch

Name: OEM 15kv 1000A High-Voltage Electric Disconnect Switch/ Isolating Switch
Brand: all-electronics-online.com
SKU: 722129242
Availability: InStock
Rating: 4.6 (133 reviews)

Price:	US $ 0.1/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	gw9
Rated Current:	200~600A
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Grounding:	Double Ground
Series:	Three
Run:	Vertical Rotation
Switching Mode:	Single Throw-in
Certification:	ISO
Common Model:	Gw
Brand:	Yongde

Product Description

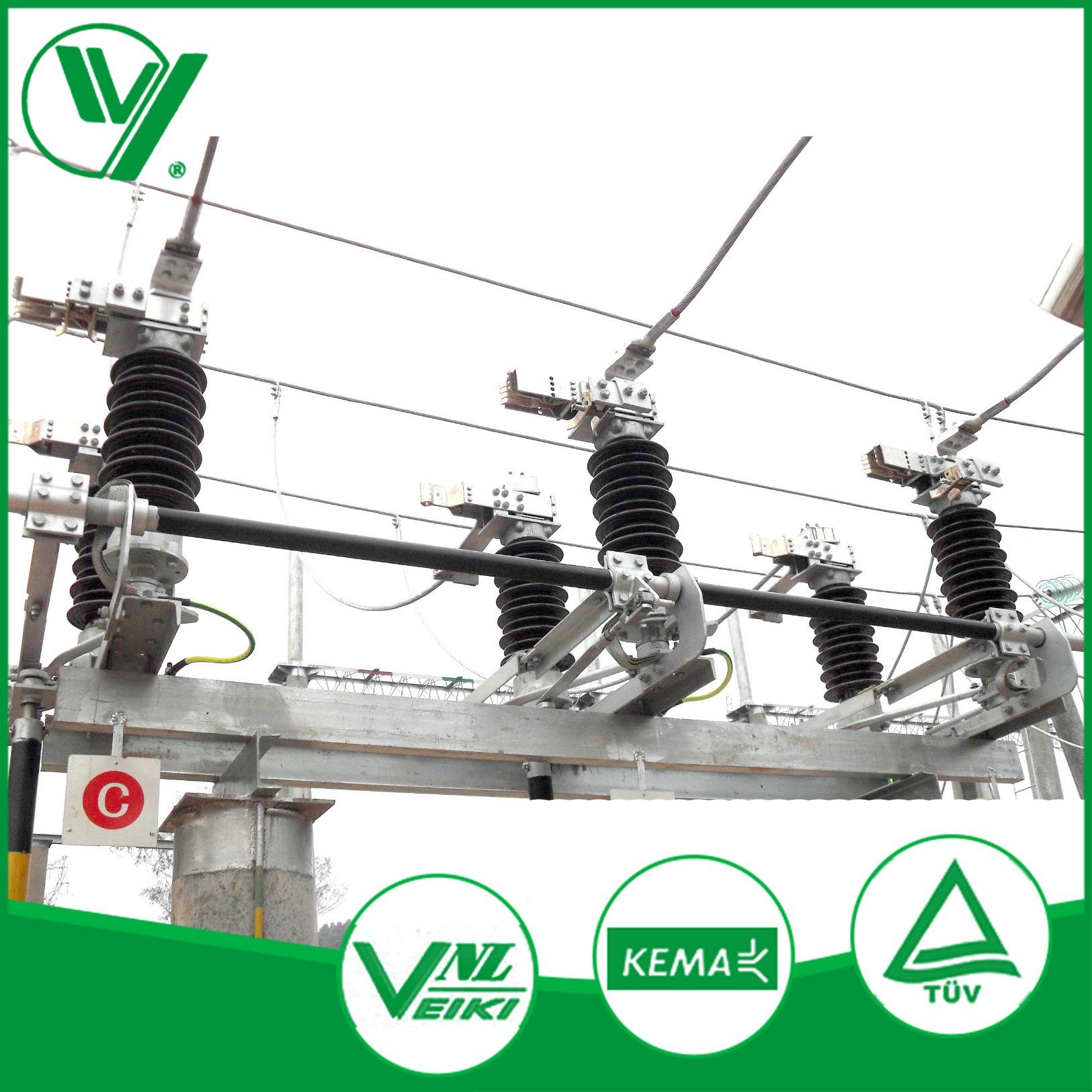

OEM 15KV 1000A High-Voltage Electric Disconnect Switch/ Isolating Switch

GW9-10/15/20 KV series of outdoor high voltage isolator is aiming at some problems of the original GW9 type and combined with the latest requirements of users to design, its design is simple and reasonable structure, copper and aluminum alloy fittings, stainless steel fasteners and hot dip galvanized base, has a good anti-fouling and corrosion resistant ability, reliable performance, light weight, easy installation, no need for periodic cleaning and maintenance, is the urban and rural areas of 10 to 20 KV distribution line segment, branch and maintenance period of breaking point of a clear and convenient outdoor high voltage electrical equipment.

Parameter Table
	Items	Technical parameter
No	Type	GW9-10	GW9-15	GW9-20
1	Rated Voltage kV	10	15	20
2	Max working voltage kV	12	17.5	24
3	Rated frequency Hz	50
	Rated current A	400	630	1250
4	Rated Short Time withstand current and Time kA/s	20/4	25/4	31.5/4
5	Rated Peak withstand current kA	50	63	80
6	1min power frequency withstand voltage (effective value) kV	To earth	42	45	65
6	1min power frequency withstand voltage (effective value) kV	To phase	53	55	79
7	Lightning Impulse wishstand voltage(peak value) KV	To earth	75	105	125
7	Lightning Impulse wishstand voltage(peak value) KV	To phase	85	120	145

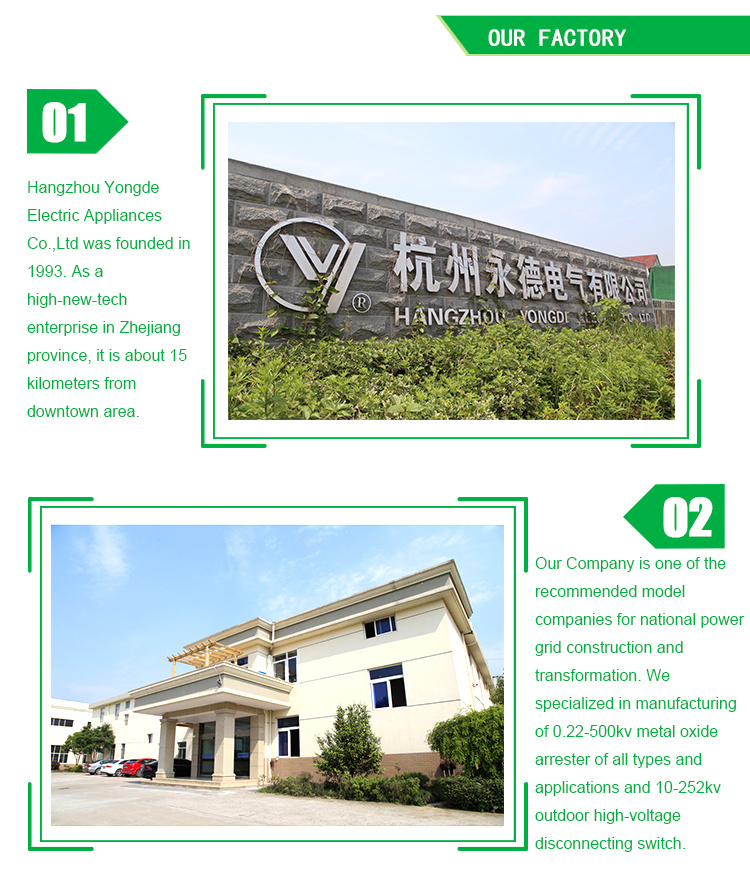

Hangzhou Yongde Electric Appliances Ltd Company was founded in 1993. As a high-new-tech enterprise in Zhejiang province, it is about 15 kilometers from downtown area.

Our Company is one of the recommended model companies for national power grid construction and transformation. We specialized in manufacturing of 0.22-500kV metal oxide arrester of all types and applications and 10-220kV outdoor high-voltage disconnecting switch.

Currently, our company employs 150 Staffs, with 23 technically-titled and 15 senior technical title holders, who organize a high standard scientific research and development team. Every year we invest many research funds for new product development and acquiring advanced production and testing equipment each month.

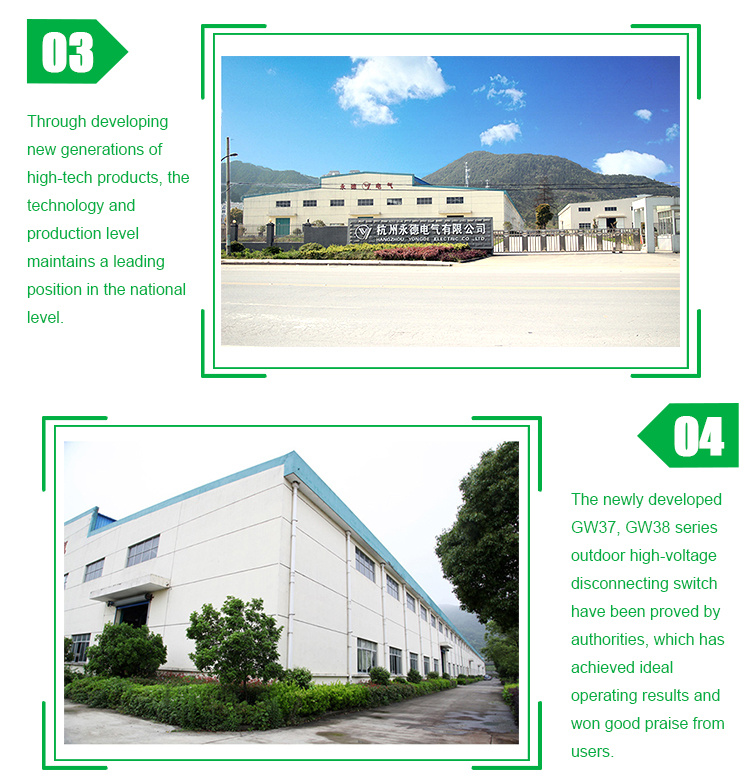

Through developing new generations of high-tech products, the technology and production level maintains a leading position in the national level.

The newly developed GW37, GW38 series outdoor high-voltage disconnecting switch have been proved by authorities, which has achieved ideal operating results and won high praise from users.

Our company has a variety of CNC equipments of over a hundred units. In 2001, our company passed the ISO9001 quality inspection, and in August 2010 adopted itself to the ISO9001-2008 version of reinspection.

The annual production capacity of the company is about 6, 000, with well equipped means of inspection for raw materials and purchased spare parts. Each procedure in the manufacturing process is under strict control and supervision. The inspection equipments and instruments are advanced and reliable which effectively guaranteed our product quality.

Yongde holds the quality policy of being 'the technical forerunner, supreme in quality, supremacy of customers, and innovative progressing', so that our products and services successfully satisfied our users. We warmly welcome friends and customers from home and abroad to contact for exchanges and corporations. We also welcome feedbacks from our user communities.
