| Prod Model: |
JKEVC |
| Name: |
EV Charging Cable |
| Rated Voltage: |
AC 450/750V, DC 1000V |
| Rated Current: |
10A 16A 32A 63A |
| Application Of Cable: |
EV Charging Station |
| Operating Ambient Temperature: |
-25degree to 50degree, Max Cable Temperature 70deg |
| Allowable Short Circuit Temperature: |
200degree in 5 Seconds |
| Mini Bending Radius: |
5*Od(Cable Nominal Diameter) |
| Environmental Resistance: |
Pass 2pfg 1908 UV-Resistant Test |
| Low-Temperature Toughness: |
Pass 2pfg 1908 -35degree |
| Measurement Test: |
-25degree Low-Temperature Impact Test |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Certification: |
VDE |
| Sheath Material: |
TPE |
| Insulation Material: |
TPE |
| Brand: |
Jiukai or OEM |

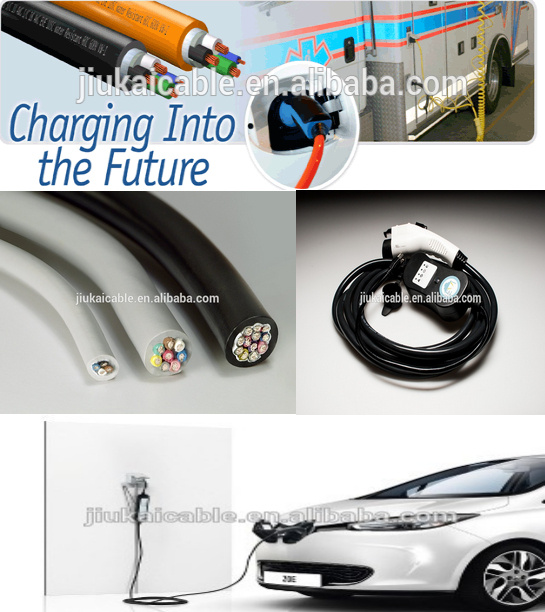

Product Description
Item: oem accepted 3*14+2*18awg 10a 16a ev charging cable with plug
Product Description & Parameters
| Size Of Cable(N*mm2) | Rated Voltage | Rated Current | Application |
| 3 x 2.5 + 2 x 0.5 | 450/750V AC | 10A/16A | Single Phase |
| 3 x 6.0 + 2 x 0.5 | 32A | Single Phase |
| 5 x 2.5 + 2 x 0.5 | 16A | Three Phase |
| 5 x 6.0 + 2 x 0.5 | 32A | Three Phase |
| 5 x 16 + 2 x 0.5 | 63A | Three Phase |
| Size Of Cable(N*AWG) | Rated Voltage | Rated Current | Application |
| 3 x 14 + 2 x 18 | 450/750V AC | 10A/16A | Single Phase |
| 3 x 10 + 2 x 18 | 32A | Single Phase |
| 2 x 6 + 8 + 2 x 18 | 63A | Single Phase |
***The above products' specification, dimension and structure maybe changed due to technical update. The types and specs could be customized by the request of clients.
| Construction |
| Conductor: | Bare copper |
| Insulation: | TPE or PVC |
| Assemble: | Cotton thread filling, non-woven fabrics 1/4 lapping |
| Jacket: | TPE or PVC |
| Color Of Sheath: | Black or orange |
| Electric Characters |
| Rated Voltage: | 450/750V AC |
| Rated Temperature: | '-25~70ºC |
| Dielectric Strength: | AC-2500V/1 sec MIN |
| Spark test: | AC-6000V/In the air |
| Conductor resistance: | 3.3ΩKM Max at20ºC |
| Insulation resistance | 0.012 MΩ/KM Min in70ºC |
| Physical Properties |
| Elongation of unaged values(%): | ≥250% |
| Tensile strength of unaged values(N/mm2): | ≥10 |
| Aged in a full draft circulating air oven: | 135±2.0ºC/168h |
| Elongation of After aging(%): | ≥75% |
| Tensile strength of After aging(%): | ≥75% |
| Heat shock test: | 135±2ºC*1h |
| Cold bend test: | -40±2ºC*4h |
| Deformation test: | 121±1ºC*1h ≤50%(250gf) |
Used in electric vehicle charging equipments or charging ports, vehicle charge and discharge warning and control system with charging saturation,security warning control signal transmission function.
Insulation and sheath material is halogen-free thermoplastic elastomer with perfect flexibility, complied with EU RoSH standard
Resistant to cold, wear, oil, acid & alkali, water and UV
Good oil-resistant property (Resistant to mineral oil, fuel oil and gasoline)
Packing and Shipping
| Packaging Details: | 1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll. |
| | 2. According to customer requirement. |
| Shipping Details: | 7-15 days after payment. |
