| Prod Model: |
SMT PCB Assembly |
| Testing: |
E-Test |
| Color: |
Green |
| Copper Thickness: |
1oz |
| Board Thickness: |
0.8mm |
| Surface Treatment: |
HASL Lead Free |
| File Software: |
Cam350, Altium Designer, Eagle, Protel99... |
| Max Size: |
600*700mm |
| Thickness Of Solder Mask: |
0.4mil-1.2mil |
| Heat Shock: |
288c,10sec |
| Components: |
All Orginal |
| Dielectric: |
FR-4 |
Product Description

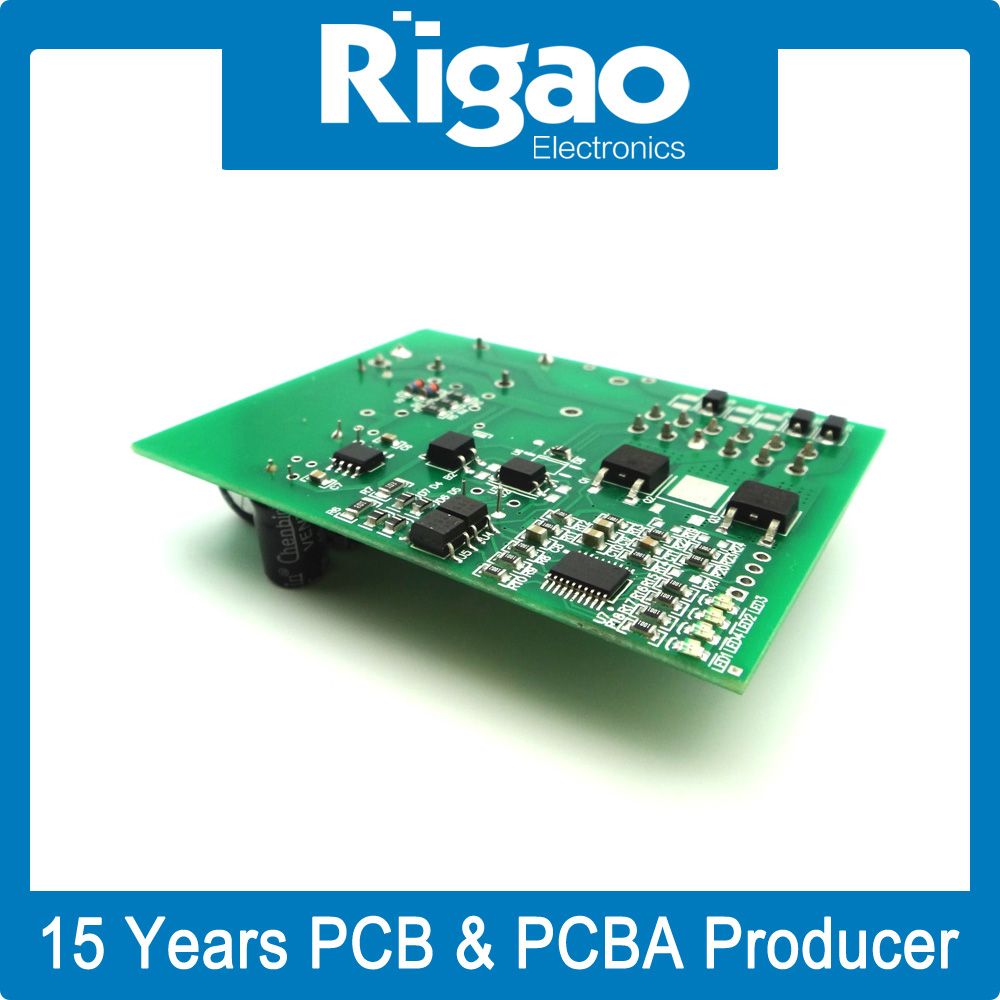

OEM circuit board Double Sided Rigid SMT PCB Assembly
One-step circuit board Double Sided Rigid SMT PCB Assembly in Rigao-pcba Electronics :
1,PCB design
2,PCB manufacturing
3,PCB test
4,Components purchasing
5,Stencil making
6,Circuit board assembling
7,Packaging
8,Reverse engineering pcb board
9,Prototype of small board
10,Clone pcb board
11,Design based on diagram schematic
Process Capability of circuit board Double Sided Rigid SMT PCB:
| Item | Technical Index |
| Layer | 1-22 layers(Rigid Board) |
| 1-10 layers(Flexible Board) |
| Multi-layer |
| Base Material | FR4, PI, PET |
| Cooper Thickness | Rigid PCB | 0.5Oz to12Oz |
| Flexible PCB | 18μm-105μm |
| Min. Hole Size | 0.2mm |
| Min. Line Width | Rigid PCB | 0.1mm |
| Flexible PCB | 3mil |
| Min. Line Spacing | Rigid PCB | 0.1mm |
| Flexible PCB | 3mil |
| Surface Treatment | OSP/HASL Lead Free/ ENIG/Immersion Gold/Immersion Tin |
| External Treatment | Precise V-cut, externally pressed or milled, laser appearance |
| External Tolerance | ±0.05mm |
| Solder Mask Color | Blue/White/Green/Red/Yellow |
| Welding Resistance Film | Covered in layers with PI and PET film |
| Sensitive welding resistant oil/ welding resistant dry film/silk printing oil/separable welding resistant oil |
| Type of oil | Applicable to silk printing in multi-colors |
Process Cpability of circuit board Double Sided Rigid SMT PCB Assembly:
| Type of PCB Assembly | SMT, Thru-hole,COB |
| SMT | Position accuracy:20 um |
| Components size:0.4×0.2mm(01005) _130×79mm,Flip-CHIP,QFP,BGA,POP |
| Max. component height::25mm |
| Max. PCB size:680×500mm |
| Min. PCB size:no limited |
| PCB thickness:0.3 to 7mm |
| Wave Solder | Max. PCB width:450mm |
| Min. PCB width: no limited |
| Component height:Top 120mm/Bot 15mm |
| Sweat-Solder | Metal type :part, whole, inlay, sidestep |
| Metal material:Copper , Aluminum |
| Surface Finish:plating Au, plating sliver , plating Sn |
| Air bladder rate:less than20% |
| Supporting: | Software burning and Function Testing |
| Testing | X-RAY Inspection & AOI Test, ICT,Probe flying,burn-in,function test,temperature cycling |
| Lead Time | 12days-15days |
| File Fomat | Bill of Materials,Gerber Files, Pick-N-Place File (XYRS),PCB,Altium, EDA etc |
Our Principle is simple, "Act by heart, Make the best."
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, " To be the most reliable supplier of PCB and PCBA."
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
