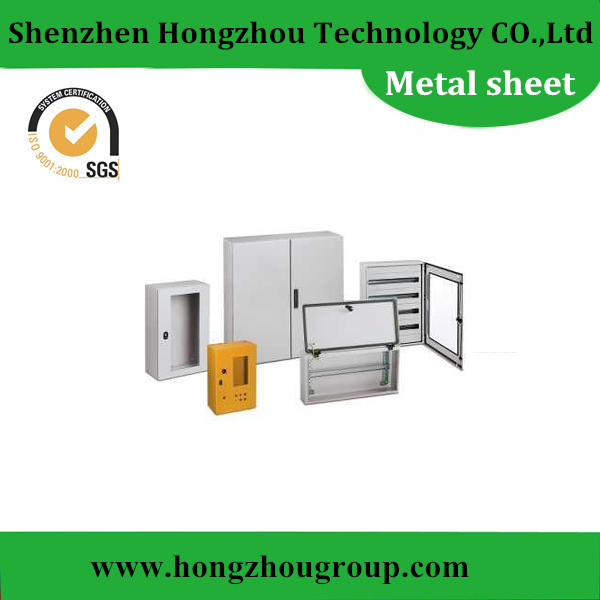

OEM Electrical Distribution Sheet Metal Switchgear Enclosure

Prod Model:	HZCX-1944
Item:	Sheet Metal Part/Sheet Metal Fabrication
Processing:	Laser Cutting/Bending/Welding/Shearing
Service:	OEM/ODM
Quality Control:	100% Inspect Before Shipment
Packing Detail:	Standard Export Packing
Delivery Lead Time:	7-25 Working Days(as Per Your Order Qty)
Factory Location:	Shenzhen, China
Export Markets:	Global
Trade Terms:	EXW, Fob
Type:	Power
Structure:	Protection
Shell Protection Grade:	IP66
Brand:	Hz

Product Description

                              OEM Electrical Distribution Sheet Metal Switchgear Enclosure

About us:
Shenzhen HONGZHOU Technology Co. LTD founded in 2005 years with ISO9001:2008 certification.
Hongzhou specializes in sheet metal, stainless steel, aluminum fabrication including shearing/laser cutting, CNC punching, bending, drilling and tapping, welding, tool and die making and machining, etc.
We are a vertically integrated corporation with manufacturing plants incorporating design, development, prototyping and tooling, production, assembly, quality control, certification, storage and logistics, we can offer customers with unit component and in-house integrated assemblyvalue-added service.


Sheet metal fabrication capablity:


Manufacturing Process	Laser cutting, CNC punching, staping, bending, punching, threading, welding, polishing, tapping, riveting, assembly.
Material	Stainless steel, carbon steel, copper, aluminium, brass, iron, and bronze (according to customer's requirements)
Surface Treatment	Galvanized(zinc-plated, nickel-plated, chrome-plated, silver-plated),  Powder coating, polishing(mirror polishing, electrolytic polishing),  Brushing, sand blasting, chemical etching, passivation treatment, etc.
Tolerance	+/-0.01mm
Package	Plastic film+harden carton box+plywood case
Application	Auto parts, Food Machinery, medical testing and equipment, electronic products, electric appliance, power switches, miniature switches, A/V equipment.
Quality Control	Conducted by ISO9001, SGS
Drawing File Format	Solidworks, PRO/E, , Auto CAD, PDF
Features	1. Customized Design 2. Small Order Allowed 3. Sample Product Available 4. Competitive Price due to factory direct supply
Inspection	IQC, PQC, FQC, OQA

Our advantages:
1). Quick Response and quickly action, your inquiry will be replied in 24 hours
2). Competitive Price directly from in housing plant.
3). High quality due to first-hand control in factory.
4). OEM/ODM: Custom fabrication according to your drawings or samples.
5). Flexibility: Small orders are acceptable for quick delivery and help you reduce the stock cost.
6). Quick delivery and oversea Kanban warehouse service. We have overseas
Warehouse located in Hongkong and London to support overseas clients.

Standard Specification
1. Standard configuration: Galvanized or orange painted mounting plate, locking system, gland plate, sealing gasket and fixing accessories.
2. Material and thickness: Cold-rolled sheet steel
Door: 1.2mm (up to H=800mm) or 1.5mm (H≥ 800mm)
Body: 1.2mm (up to H=800mm) or 1.5mm (H≥ 800mm)
Mounting plate: 1.5mm (up to H=800mm) or 2.0mm (H≥ 800mm)
3. Surface: Thermosetting epoxy powder coating, textured finish
4. Color: RAL 7032 RAL 7035 or any other colors on your request
5. Protection degree: IP 66

Feature
1. There are strengthening strips with pilot holes welded to both sides of the door by using the self-tapping M4 screws for the convenient installation (If the enclosure higher than 600mm)
2. There's one foam PU sealing gasket inside the door for the water and dust proof.
3. The door can be opened 130° By the plugging hinges
4. The slots design of the enclosure prevents dust and water from entering into the enclosures plus the good coordination with sealing ring, which supply a good protection of the enclosures.
5. There're 4 hanging holes in the back of the enclosures, which is very convenient for the installation by the wall mounting brackets, that's going to be Ordered separately.
6. The door can be switched by both left and right side.
