OEM Fast PCB Prototyping Service with High Quality

Name: OEM Fast PCB Prototyping Service with High Quality
Brand: all-electronics-online.com
SKU: 810698265
Availability: InStock
Rating: 4.6 (56 reviews)

Price:	US $ 0.67-0.89/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Structure:	Multilayer Rigid PCB
Material:	Polyester Glass Fiber Mat Laminate
Production Process:	Subtractive Process

Product Description

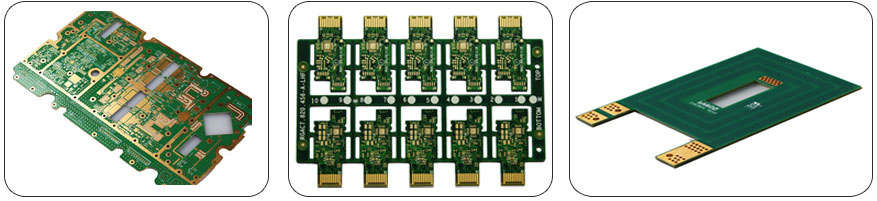

OEM Fast PCB Prototyping Service with High Quality

About Us
NOD Electronics strives to be your PCBA manufacturer, including PCB design, fabrication and PCB assembly (PCBA). Our responsive team will offer you PCB assembly services with a range of process control, refined and strict PCB assembly workflow and quality commitment. Generally, customer with small-medium batch order and high quality requirements would like to choose us as reliable option, because we treasure long term interest and win by our outstanding services.

Fast PCB Prototyping Manufacturing Capabilities

Total Pad Size	Standard	Advanced
Capture Pad	Drill + 0.008	Drill + 0.006
Landing Pad	Drill + 0.008	Drill + 0.006
BC Mechanical Drill (Type III)	0.008	0.006
Laser Drill Size	0.004-0.010	0.0025
Material Thickness	0.0035	0.0025
Stacked Via	Yes	Yes
Type I Capabilities single & Double Deep	Yes	Yes
Type II Capabilities Buried Vias with Microvias	Yes	Yes
Type III Capabilities	Yes	Yes
Copper Filled Microvia	Yes	Yes
Smallest Copper Filled Microvia	0.004	0.0025
Copper Filled Microvia Aspect Ratio	0.75:1	1:01
Smallest Laser Microvia Hole Size	0.004	0.0025
Laser Via Aspect Ratio (Depth:Diameter)	0.75:1	c

Fast PCB Prototyping Manufacturing Process

We are offering fast PCB prototyping manufacturing and assembly services to following big customers all over the world

If you have any questions about fast PCB prototyping , feel free contact us any time.

As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.

We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.

So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
